I²C
Display
1 2 5 6 7 8
3
4
1
2

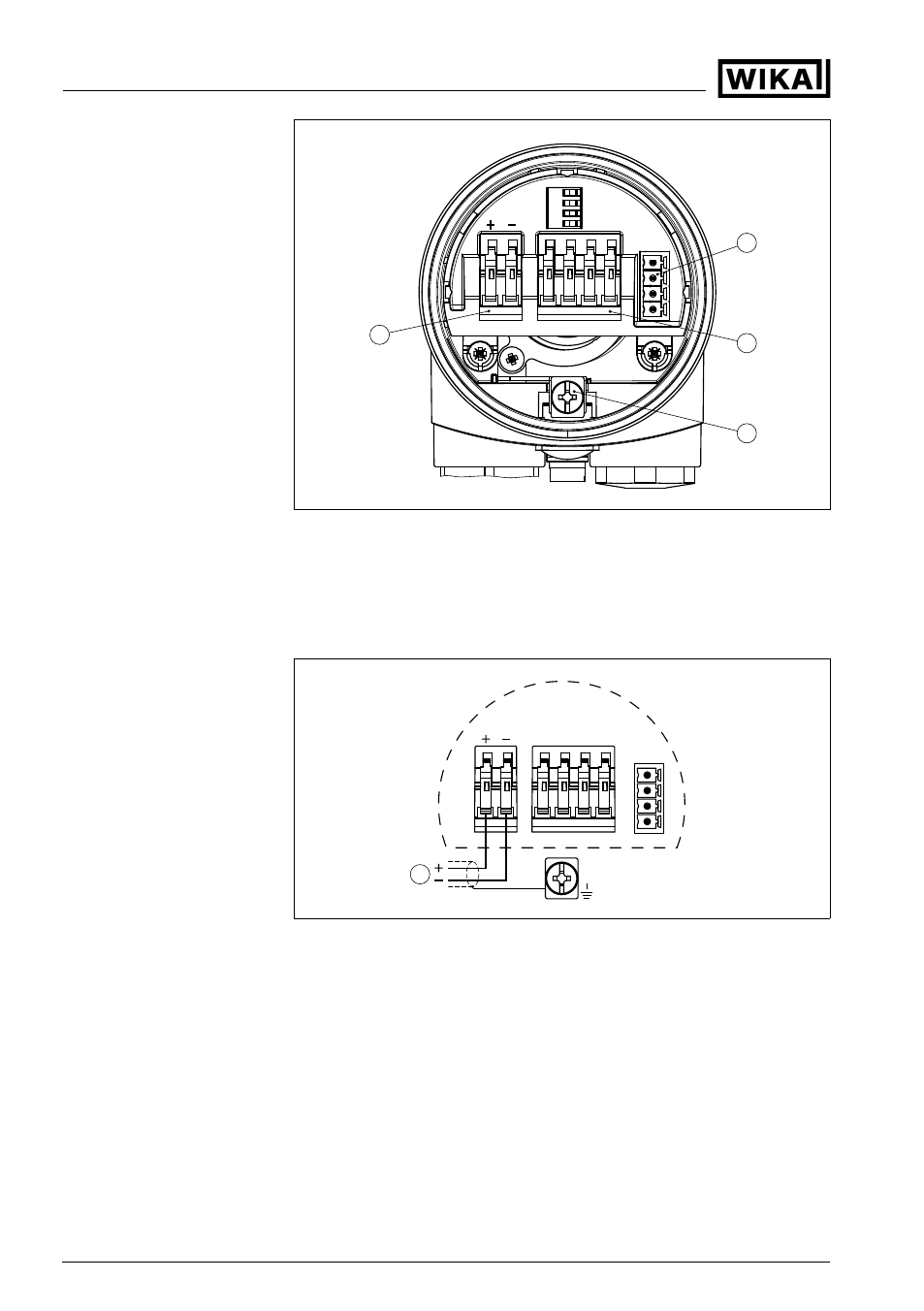

Fig. 7: Electronics and connection compartment, single chamber housing
1 Plug connector for service
2 Spring-loaded terminals for connection of the external indicating and
adjustment module
3 Ground terminal for connection of the cable screen
4 Spring-loaded terminals for voltage supply
I2C
Display
1
1 2 5 6 7 8
Fig. 8: Wiring plan, single chamber housing
1 Voltage supply/Signal output
Electronics and connec-
tion compartment
Wiring plan
