6 TP-141, TP-142 - Overview
3.3 Defining the TP-141 XGA/Audio Line Transmitter
The TP-141 is an XGA/stereo audio line transmitter that receives an XGA signal
and an unbalanced stereo analog audio signal, codes them, and transmits them
over CAT 5 cable to a TP-142 receiver. Figure 1 defines the TP-141.

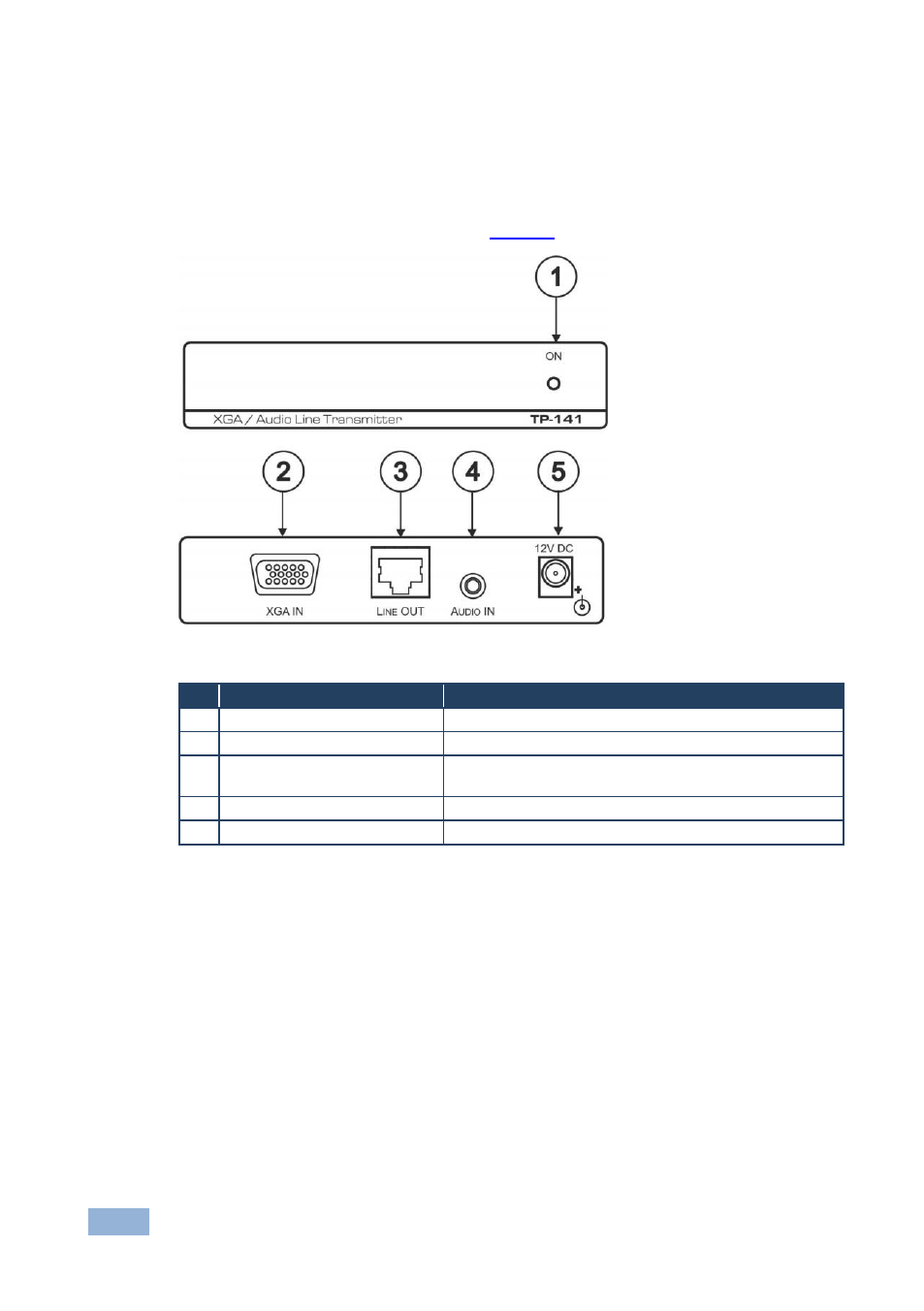

Figure 1: TP-141 XGA/Audio Line Transmitter
# Feature Function
1 ON LED Illuminates when receiving power
2 XGA IN 15-pin HD Connector Connect to the XGA source
3 LINE OUT RJ-45 Connector Connects to the LINE IN RJ-45 connector on the TP-142
XGA/Audio Line Receiver
4 AUDIO IN 3.5mm Mini Jack Connects to the audio source
5 12V DC +12V DC connector for powering the unit
