TP-141, TP-142 - Connecting the TP-141, TP-142

11

4.1

Wiring the TP LINE IN / LINE OUT RJ-45 Connectors

This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45

connectors.

EIA /TIA 568B

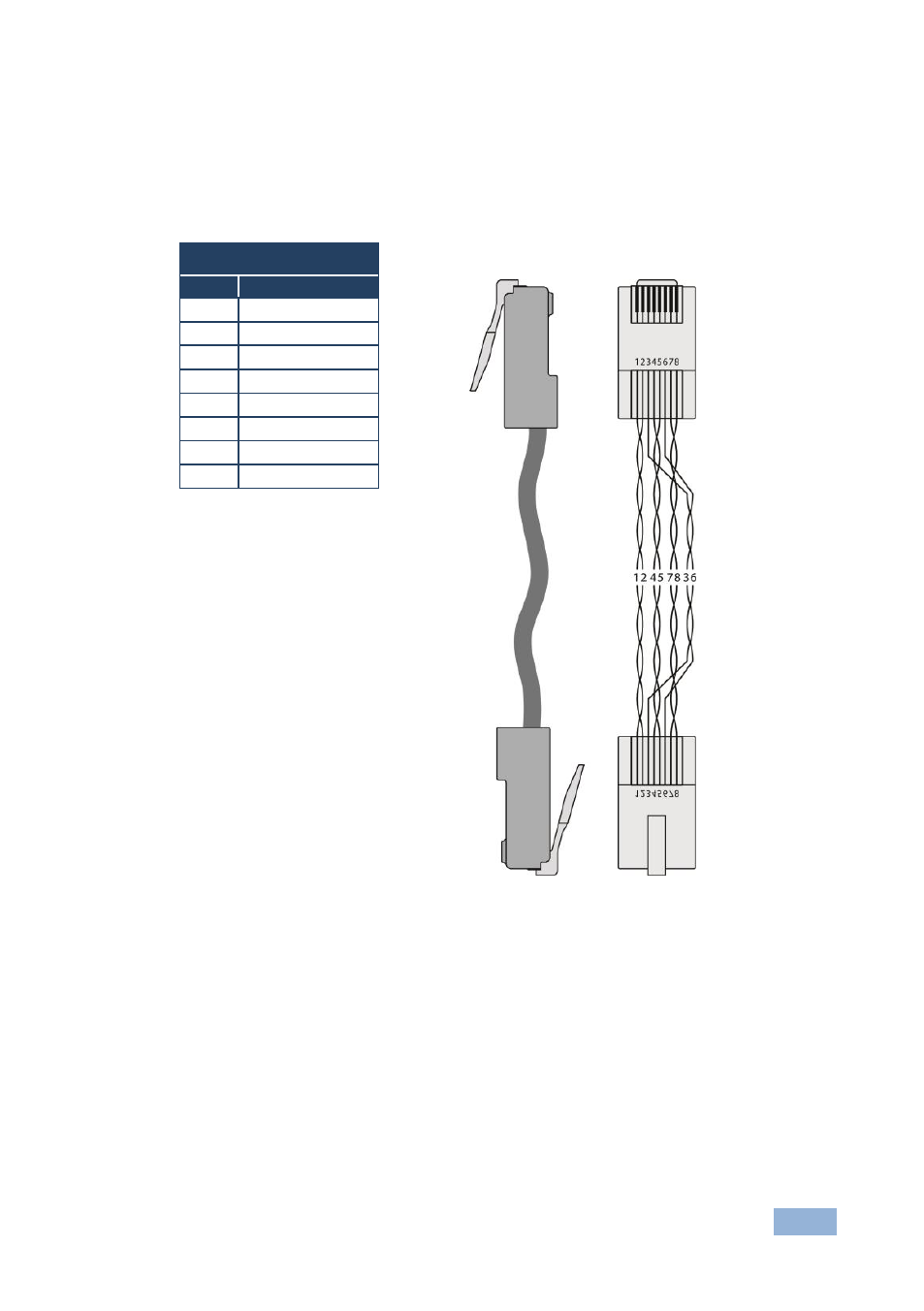

Figure 4: TP PINOUT

PIN

Wire Color

1

Orange / White

2

Orange

3

Green / White

4

Blue

5

Blue / White

6

Green

7

Brown / White

8

Brown
