TP-141, TP-142 - Overview 7
3.4 Defining the TP-142 XGA/Audio Line Receiver
The TP-142 is an XGA/audio line receiver that receives the coded CAT 5 signal
transmitted by a TP-141, decodes it and converts it to XGA, stereo analog and
S/PDIF digital audio outputs. Figure 2 defines the TP-141.

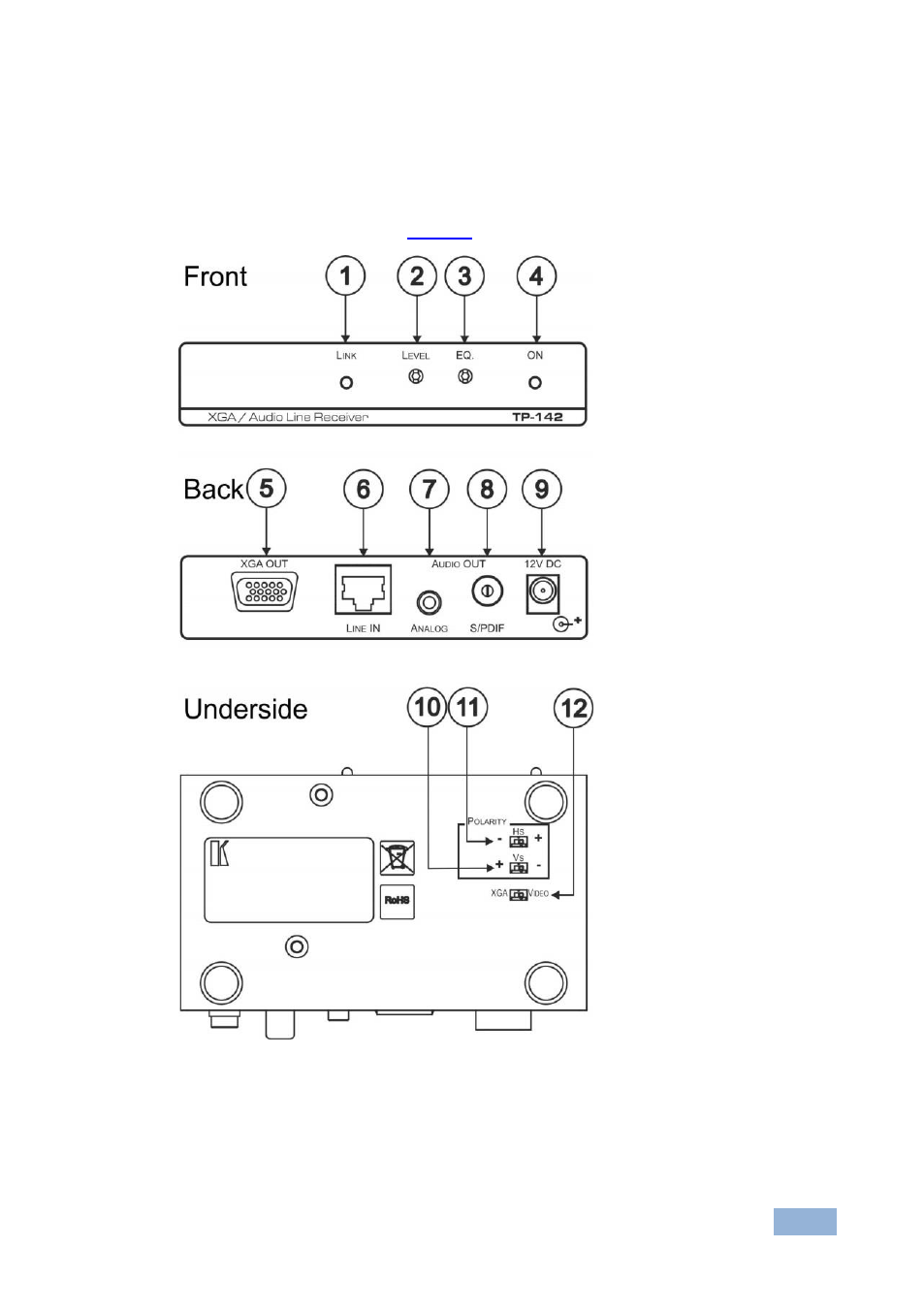

Figure 2: TP-142 XGA/Audio Line Receiver
