TP-121xl/TP-122xl - Defining the TP-121xl Transmitter and
TP-122xl Receiver
5 5
4 Defining the TP-121xl Transmitter and
TP-122xl Receiver
This section defines the:

TP-121xl (see Section 4.1 )

TP-122xl (see Section
4.2
)
The TP-121xl has inputs for:

Computer graphics video

Unbalanced stereo audio
The TP-121xl encodes the video and audio signals and transmits them over STP
cable to a TP-122xl receiver.
The TP-122xl accepts the encoded signal over STP from the TP-121xl and
outputs computer graphics video, unbalanced stereo audio and digital audio.
4.1 Defining the TP-121xl UXGA/Audio Line Transmitter

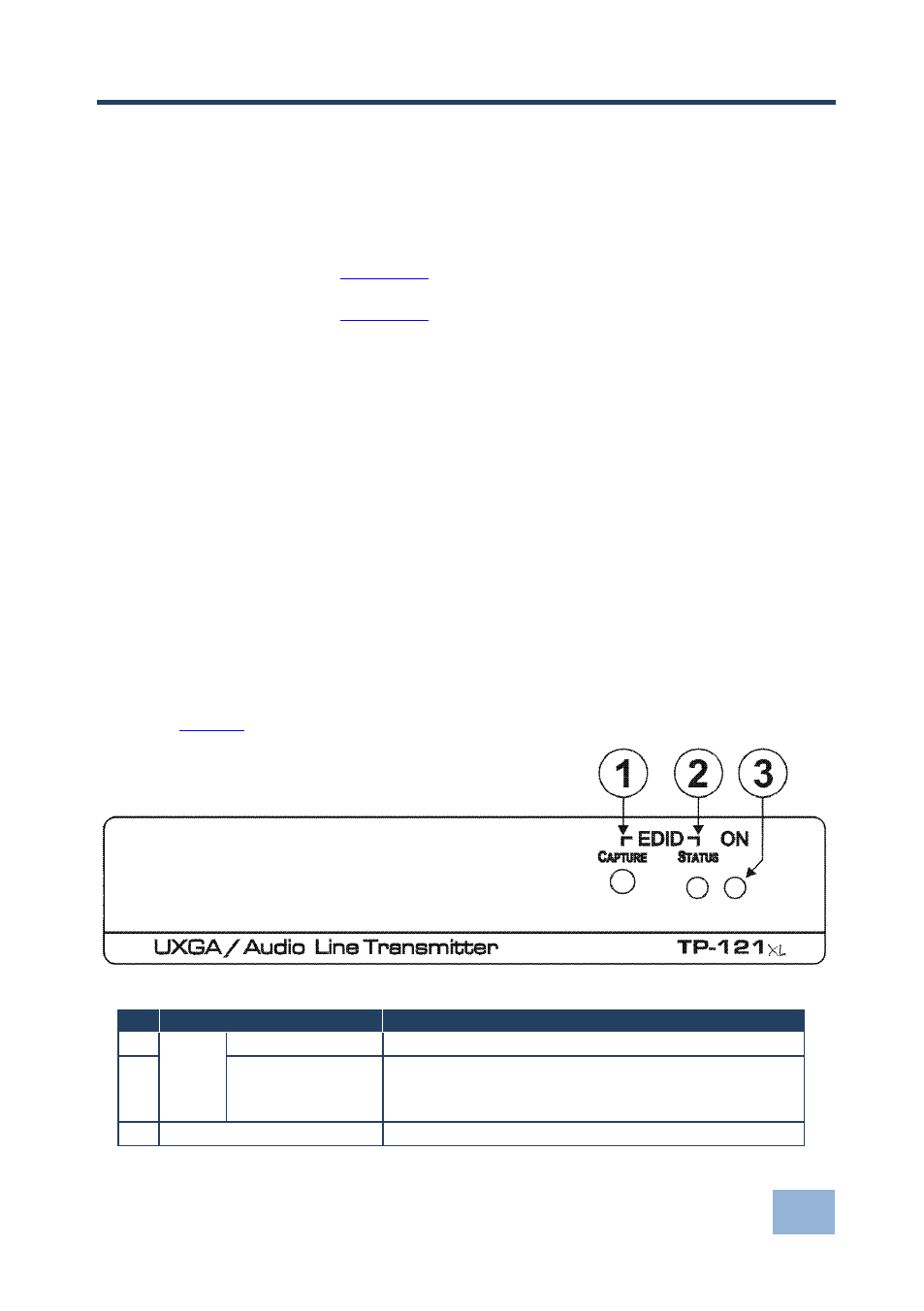

Figure 1 defines the front panel of the TP-121xl.
Figure 1: TP-121xl UXGA/Audio Line Transmitter Front Panel
# Feature Function
1
EDID
CAPTURE Button Press to capture the EDID from the video display
2 STATUS LED Indicates the following EDID status:

Flashes slowly then lights solid —new EDID stored

Flashes quickly then lights solid —default EDID stored
3 ON LED Lights green when the device is powered on
