TP-121xl/TP-122xl - Defining the TP-121xl Transmitter and
TP-122xl Receiver
7 7
4.2 Defining the TP-122xl UXGA/Audio Line Receiver

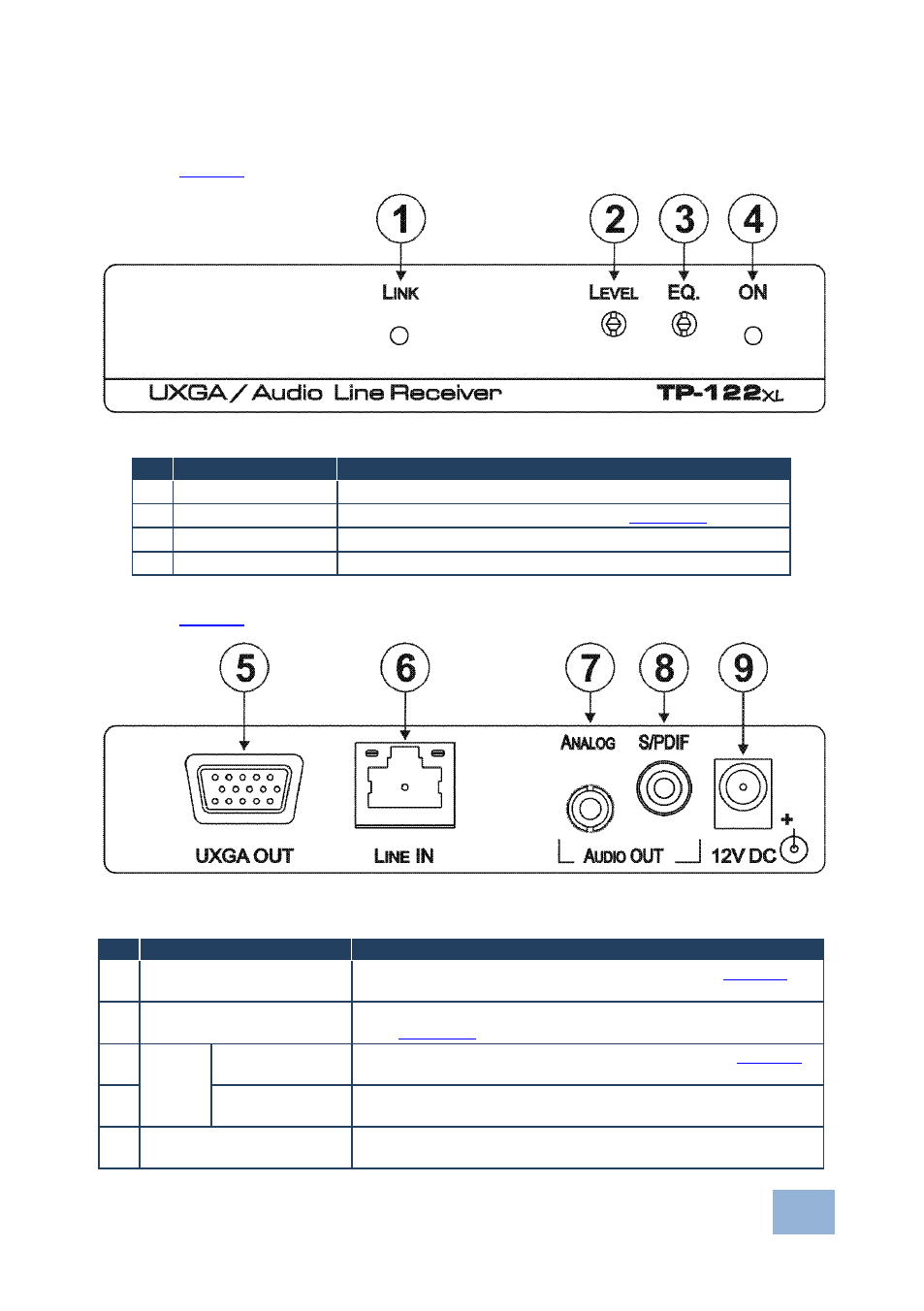

Figure 3 defines the front panel of the TP-122xl.
Figure 3: TP-122xl UXGA/Audio Line Receiver Front Panel
# Feature Function
1 LINK LED Lights green when the TP link is established
2 LEVEL Trimmer Use to adjust the output signal level (see Section 6.2 )
3 EQ. Trimmer Use to adjust the cable compensation equalization level
4 ON LED Lights green when the device is powered on
Figure 4 defines the rear panel of the TP-122xl.
Figure 4: TP-122xl UXGA/Audio Line Receiver Rear Panel
# Feature Function
5 UXGA OUT 15-pin HD
Connector (F) Connect to a computer graphics video acceptor (see Section 5 )
6 LINE IN RJ-45 Connector Connect to the Line Out RJ-45 connector on the TP-121xl
(See
Section 2.2 )
7
AUDIO
OUT
ANALOG 3.5mm
Mini Jack Connect to an unbalanced, stereo audio acceptor (see Section 5 )
8 S/PDIF RCA
Connector Connect to a digital audio acceptor
9 12V DC Power Connector Connect to one of the supplied +12V DC power adapters. Center
pin positive
