8 TP-121xl/TP-122xl - Connecting the TP-121xl Transmitter and TP-122xl Receiver
5 Connecting the TP-121xl Transmitter and
TP-122xl Receiver
Switch off the power to all devices before connecting them to your
TP-121xl/TP-122xl. After connecting your TP-121xl/TP-122xl, connect
the power to the transmitter and receiver and then switch on the power
to the other devices.

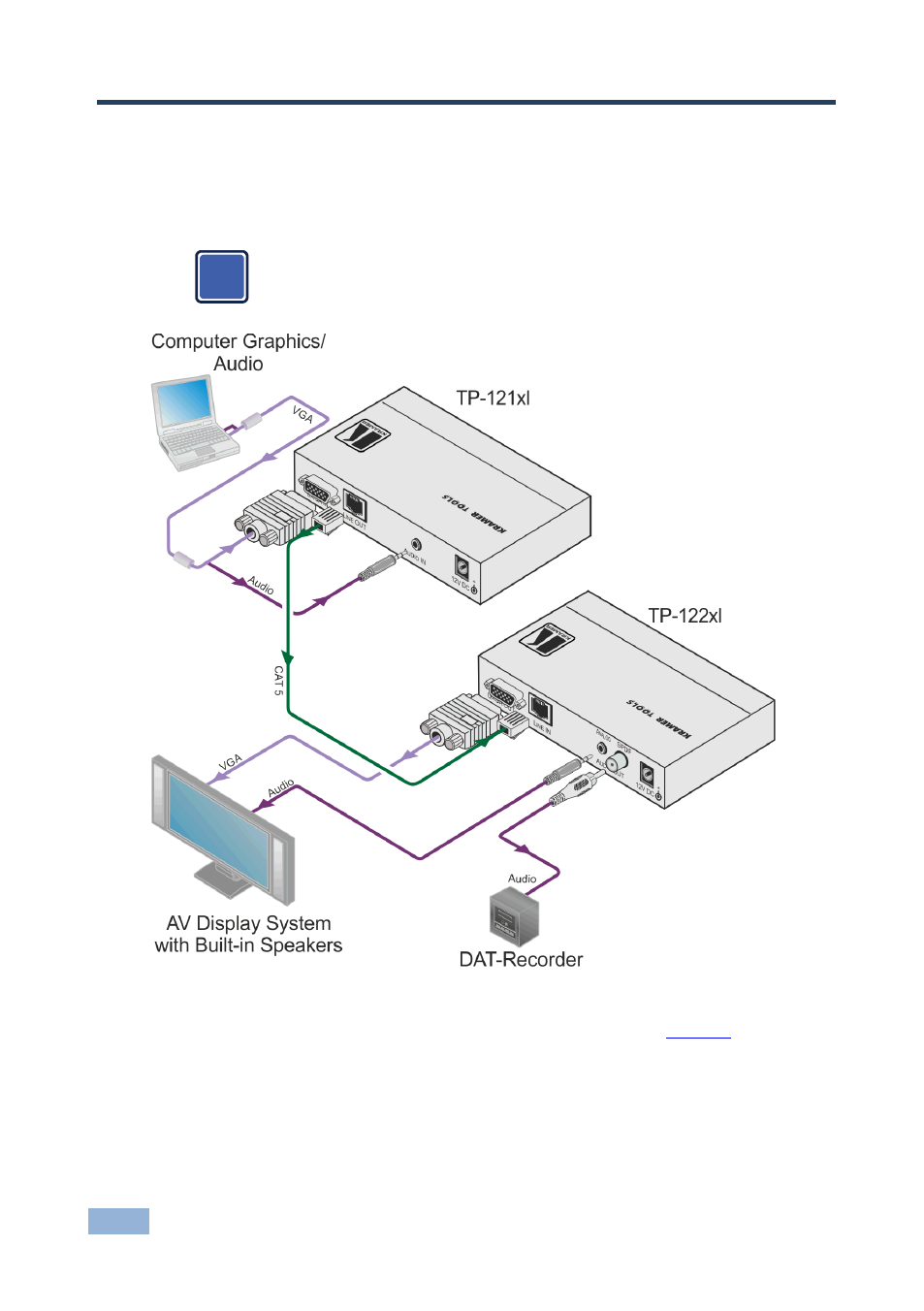

Figure 5: Connecting the TP-121xl Transmitter and TP-122xl Receiver
To connect the TP-121xl and the TP-122xl as illustrated in Figure 5 :
1. On the TP-121xl, connect:
 The computer graphics video source, (for example, the graphics output
from a laptop) to the UXGA In 15-pin HD connector (F)
