4 PT-110xl, WP-110, PT-120xl, TP-120 - PT-110xl UXGA Line Transmitter
3 PT-110xl UXGA Line Transmitter
The Kramer Pico TOOLS PT-110xl is an extended range UXGA line transmitter
that receives a UXGA signal and transmits it over a CAT 5/6 cable to the PT-120xl
or TP-120 receiver. In particular, the PT-110xl features:

Resolution up to WUXGA &1080p

HDTV compatibility up to 1080p

Extended transmissi
on range of up to 250m (820ft) when used with Kramer’s
other twisted pair xl receivers (such as PT-120xl, TP-122xl or TP-126xl)

EDID capture that copies and stores the EDID from a display device

An increased level of protection against noise, spikes and interference in
adverse environments

The power connect feature and is 12V DC fed
3.1 Your PT-110xl UXGA Line Transmitter

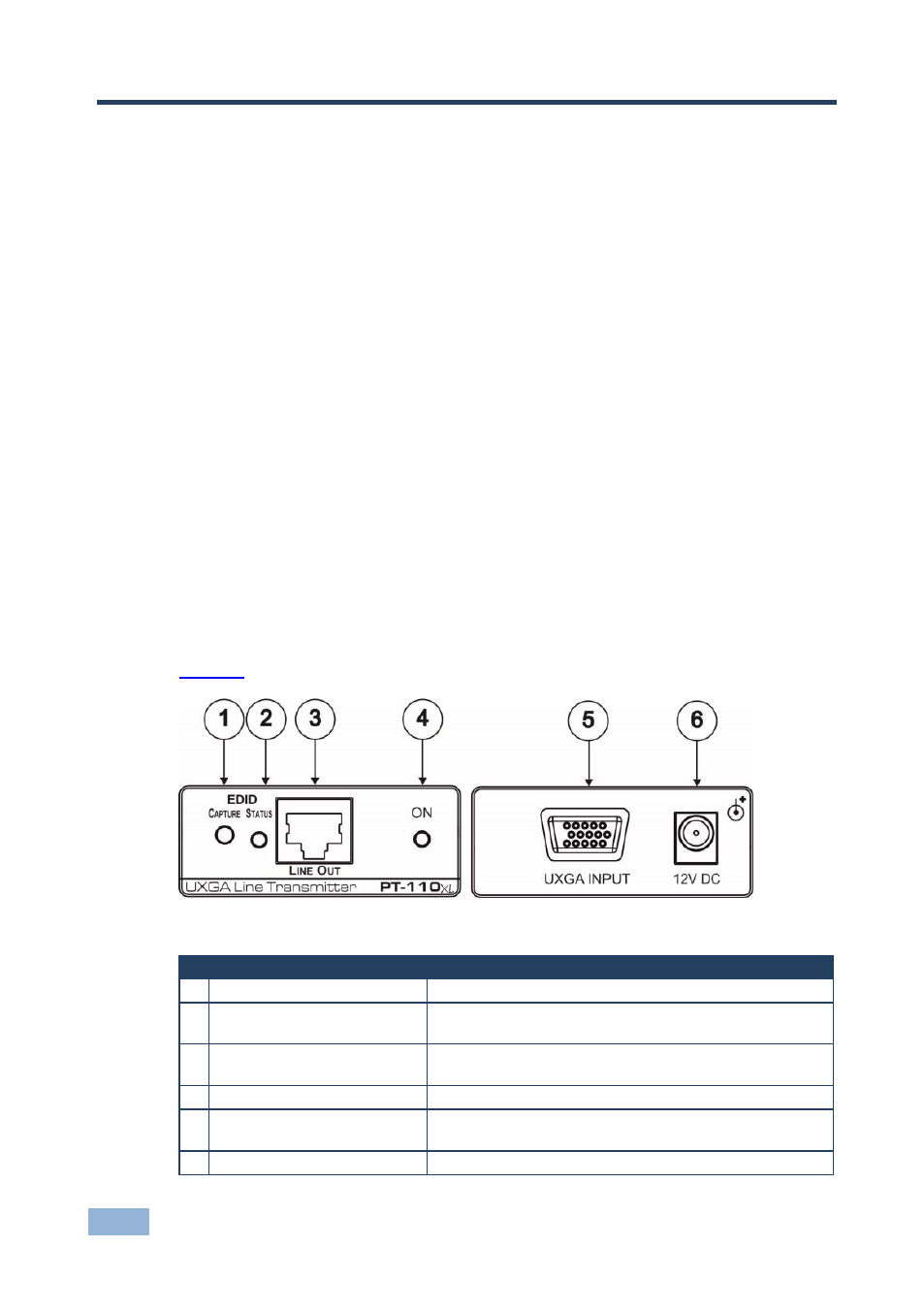

Figure 1 defines the PT-110xl:
Figure 1: PT-110xl UXGA Line Transmitter
# Feature Function
1 CAPTURE Button Press to acquire the EDID information from the display
2 STATUS LED Illuminates during normal operation; flashes when
acquiring the EDID
3 LINE OUT RJ-45 Connector Connects to the LINE IN RJ-45 connector on the PT-
120xl or TP-120 XGA Line Receiver
4 ON LED Illuminates when receiving power
5 UXGA INPUT 15-pin HD
Connector Connect to the UXGA source
6 12V DC +12V DC connector for powering the unit
