6810HDxl - Overview 5

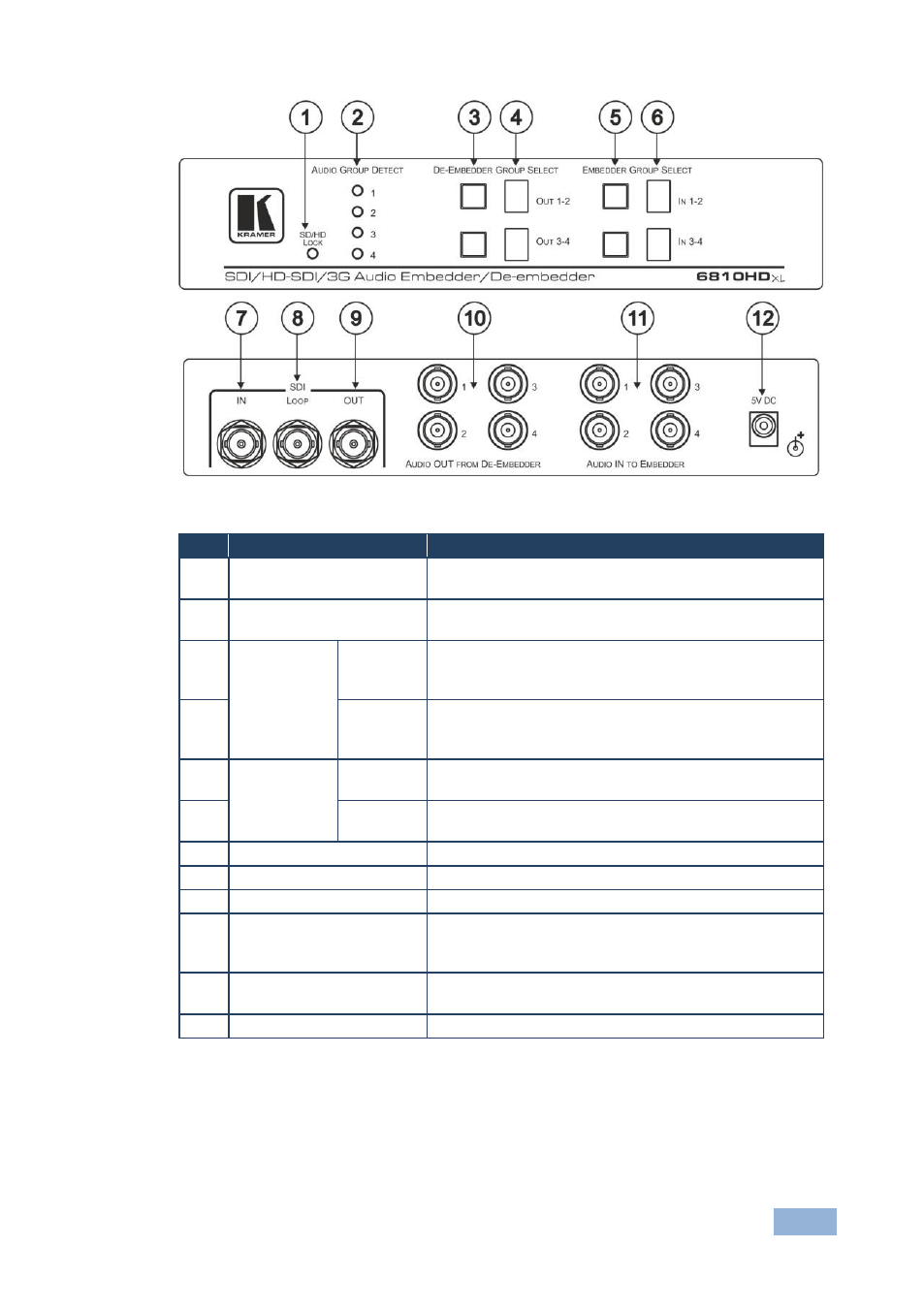

Figure 1: 6810HDxl SDI/HD-SDI/3G Audio Embedder/De-embedder
# Feature Function
1 SD/HD LOCK LED Illuminates green when an SD signal is detected or blue
when an HD signal is detected
2 AUDIO GROUP DETECT
LEDs
Illuminates when an audio group (1 to 4) is detected on
the SDI input stream
3
DE-
EMBEDDER
GROUP
SELECT
Buttons Press to select the audio group which is to be de-
embedded into the given channels (OUT 1 and 2, OUT
3 and 4)
4 7-segment
LED
Displays the number of the audio group which is de-
embedded into the given channels (OUT 1 and 2, OUT
3 and 4)
5
EMBEDDER
GROUP
SELECT
Buttons Press to select the audio group into which the given
channels (IN 1 and 2, IN 3 and 4) will be embedded
6 7-segment
LED
Displays the audio group into which the given channels
(IN 1 and 2, IN 3 and 4) are embedded
7 SDI IN BNC Connector Connects to the SDI source
8 SDI LOOP BNC Connector Connects to the input loop acceptor
9 SDI OUT BNC Connector Connects to the SDI acceptor
10 AUDIO OUT FROM DE-
EMBEDDER BNC
Connectors
Connects to the AES/3id audio acceptors (1 to 4)
11 AUDIO IN TO EMBEDDER
BNC Connectors
Connects to the AES/3id audio sources (1 to 4)
12 5V DC +5V DC connector for powering the unit
