KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your 6809HD HD/SD-SDI AES Embedder

4

4 Your 6809HD HD/SD-SDI AES Embedder

Figure 1 and Table 1 define the

6809HD HD/SD-SDI AES Embedder:

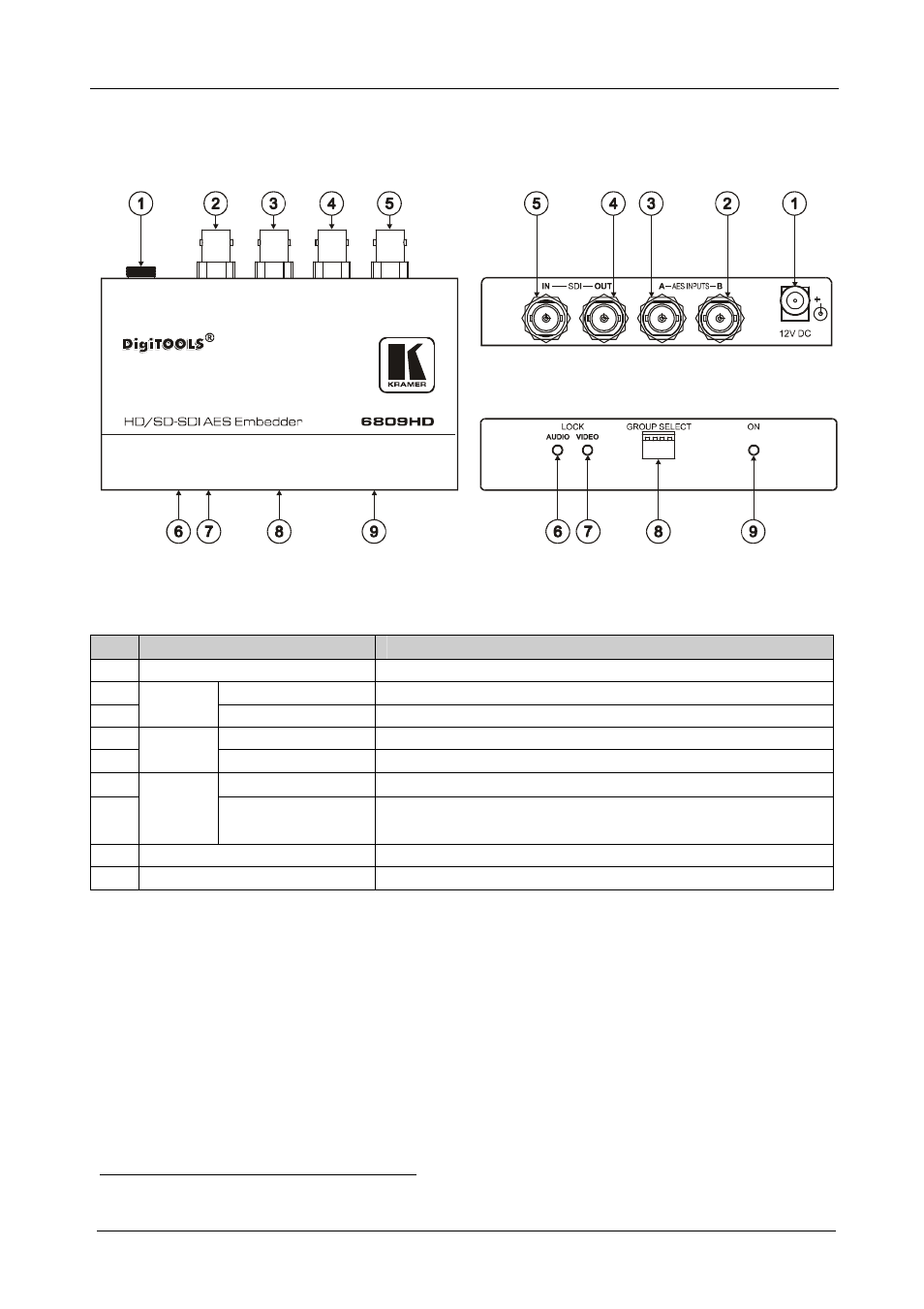

Figure 1: 6809HD HD/SD-SDI AES Embedder

Table 1: 6809HD HD/SD-SDI AES Embedder Features

#

Feature

Function

1

12V DC

+12V DC connector for powering the unit

2

B BNC Connector

Connects to the digital audio source (for channels 3 and 4)

1

3

AES
INPUTS

A BNC Connector

Connects to the digital audio source (for channels 1 and 2)

1

4

OUT BNC Connector Connects to the SDI acceptor

5

SDI

IN BNC Connector

Connects to the SDI source

6

AUDIO LED

Lights when embedding audio into the video stream

7

LOCK

VIDEO LED

Lights in green when receiving an SD-SDI signal
Lights in blue when receiving an HD-SDI signal

8

GROUP SELECT Dipswitches

Select the audio group

9

ON LED

Lights when receiving power


1 In accordance with the standard, the audio digital stream contains 2 audio channels
