Connecting the FC-8 Wi-Fi - RS-232 Bridge
5
5
Connecting the FC-8 Wi-Fi - RS-232 Bridge
The
FC-8 can be used to wirelessly control an RS-232-based device from a PC
via an ad-hoc network (see Figure 2) or via an access point (router) to a larger
network or the Internet (see Figure 3).
5.1 Connecting the Controlled Device to the FC-8
To connect a controlled device to the
FC-8, as the example in Figure 2
illustrates
1
, connect the RS-232 DB-9 rear panel port on the
FC-8 to the
attached device
2
:

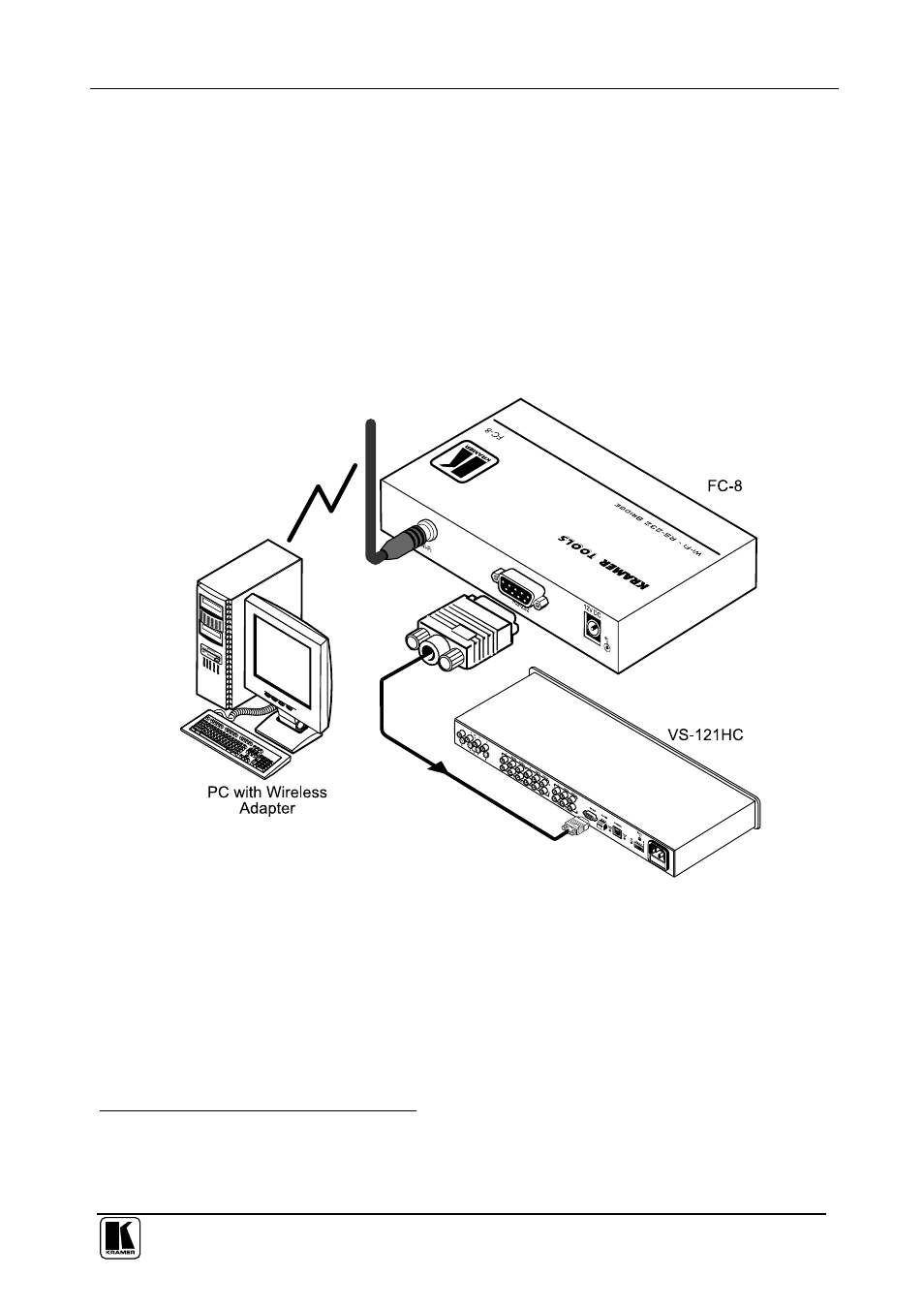

Figure 2: Connecting the FC-8 Wi-Fi - RS-232 Bridge (Ad-Hoc Network)
1 Switch OFF the power on each device before connecting it to your
FC-8. After connecting your FC-8, switch on its power
and then switch on the power on each device
2 Use the same RS-232 wiring as for a connection to the PC
