Your FC-8 Wi-Fi - RS-232 Bridge
4

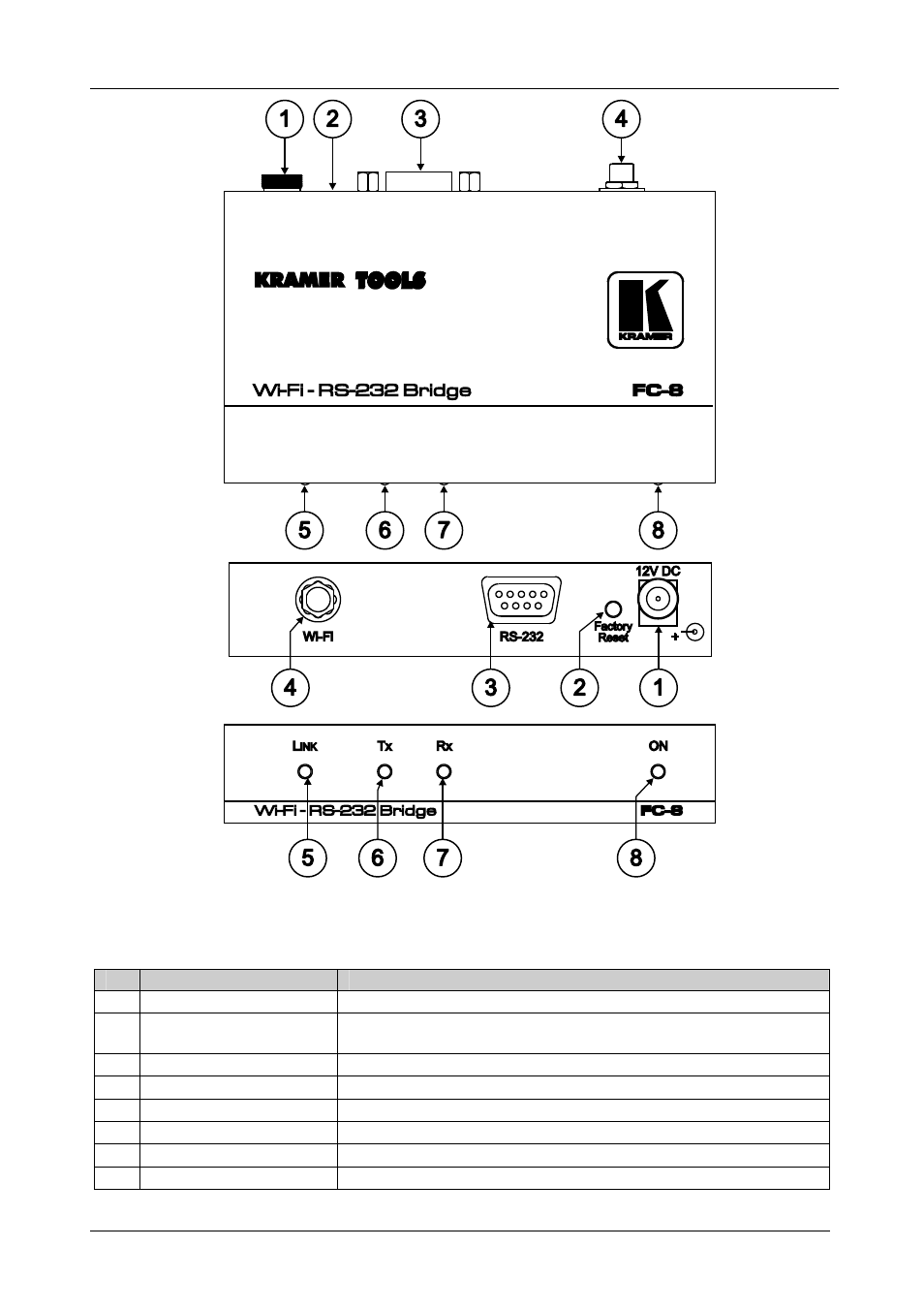

Figure 1: FC-8 Wi-Fi - RS-232 Bridge Front and Back Views
Table 1: FC-8 Wi-Fi - RS-232 Bridge Front and Back Functions
# Feature Function
1 12V DC Connector +12V DC for powering the unit
2 FACTORY RESET Button When pressed, erases all configuration data. Use only under the guidance
of Kramer Technical Support.
3 RS-232 DB-9F Port Connects to the controlled device via a null-modem connection
4 WI-FI Antenna Transmits and receives signals over the wireless network
5 LINK LED Illuminates green when there is a link
6 TX LED Illuminates green when transmitting data over the wireless connection
7 RX LED Illuminates green when receiving data over the wireless connection
8 ON LED Illuminates green when power is supplied
