Your RC-7RL / RC-7RLE
4
4 Your RC-7RL / RC-7RLE
This section defines the:
Front panel of the RC-7RL (see section 4.1)
Front panel of the RC-7RLE (see section 4.2)
Side panel of the RC-7RL and RC-7RLE (see section 4.3)
4.1 Defining the RC-7RL Front Panel
Figure 1 and Table 1 define the RC-7RL front panel:

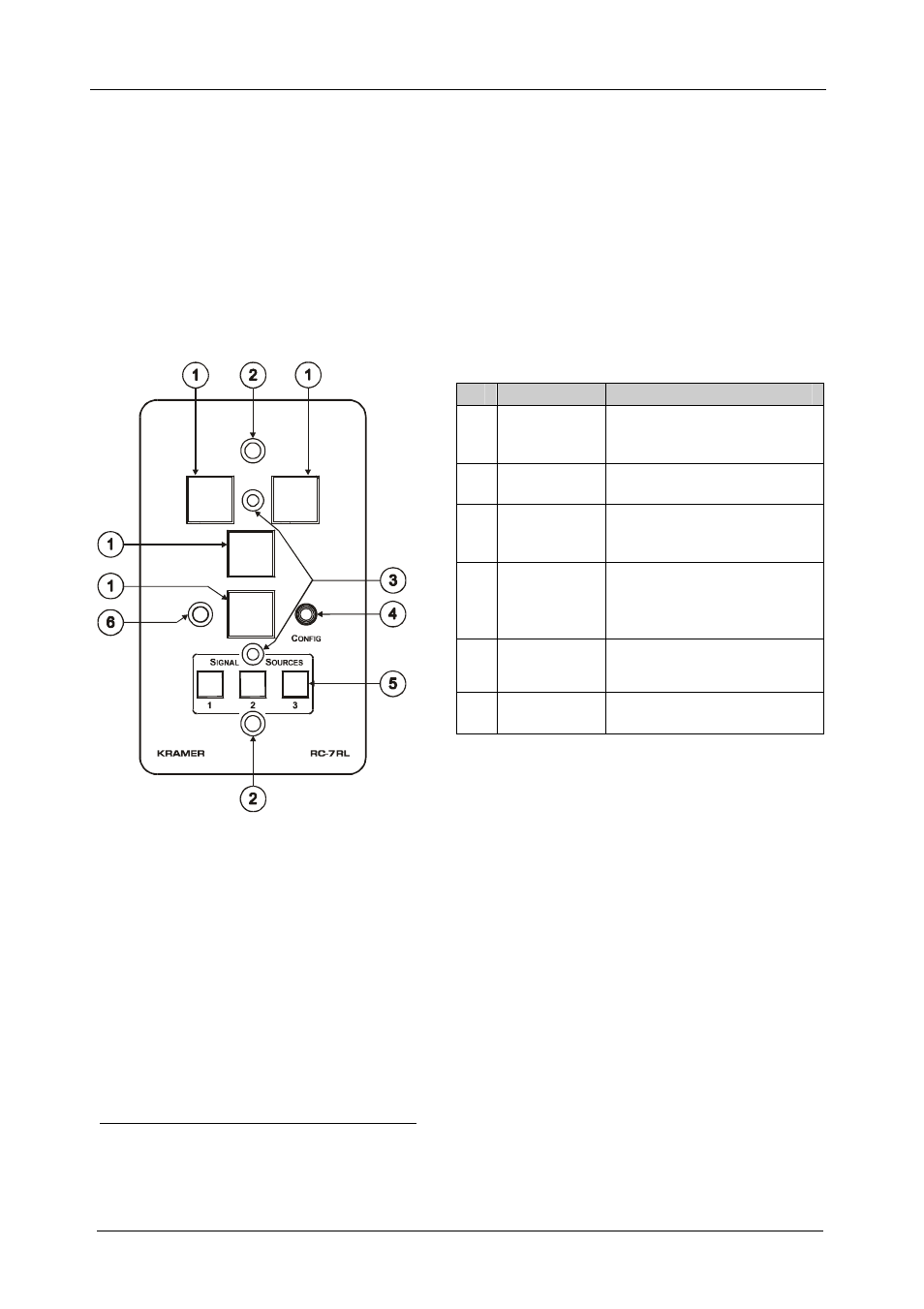

Figure 1: RC-7RL Front Panel
Table 1: RC-7RL Front Panel
# Feature Function
1 Configurable
Control
Buttons (4)
Macro Buttons for controlling
the room and the A/V
equipment
2 Mounting
holes (2)
For fastening the controller in
place
3 Faceplate
Attachment
Holes (2)
For attaching the faceplate to
the controller 1
4 CONFIG Port 2
on 3.5mm jack
connector
Used for Windows®-based
configuration software (driver
downloads, firmware updates
and so on)
5 SIGNAL
SOURCES
Buttons
Select the input source (from
1 to 3)
6 IR IN Receiver Accepts IR remote commands
(for the IR-learner feature) 3
1 These screws should not be removed during or after mounting
2 Via the front panel, without having to remove the RC-7RL from its mounting
3 Letting you configure the RC-7RL directly from the remote transmitter without the need for software
