5 using your media / room controller – Kramer Electronics RC-7RL User Manual
Page 10
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using Your Media / Room Controller
8
5 Using Your Media / Room Controller
1

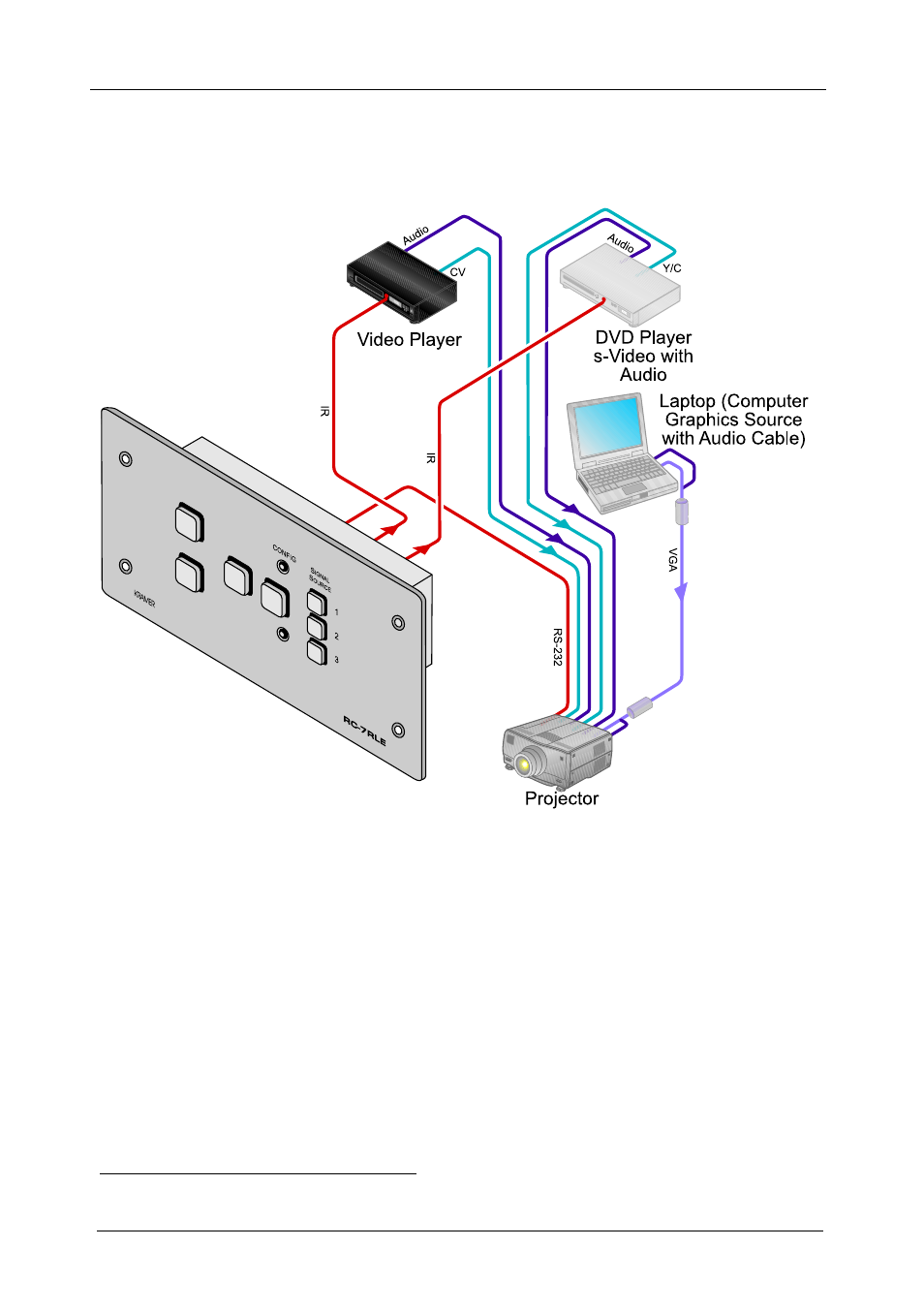

The example in Figure 5 shows a front view perspective of a typical
RC-7RLE configuration. It connects to the projector via IR or RS-232:
Figure 5: RC-7RLE (Front Perspective)
1 From this section on, all the information is relevant to both the RC-7RLE and the RC-7RL, unless noted otherwise
