Kramer Electronics RC-80 User Manual
Page 17
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the Remote Control Machine
14
3. Right-click Local Area Connection Properties.
4. Select
Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the
Properties Button (see
Figure 6).

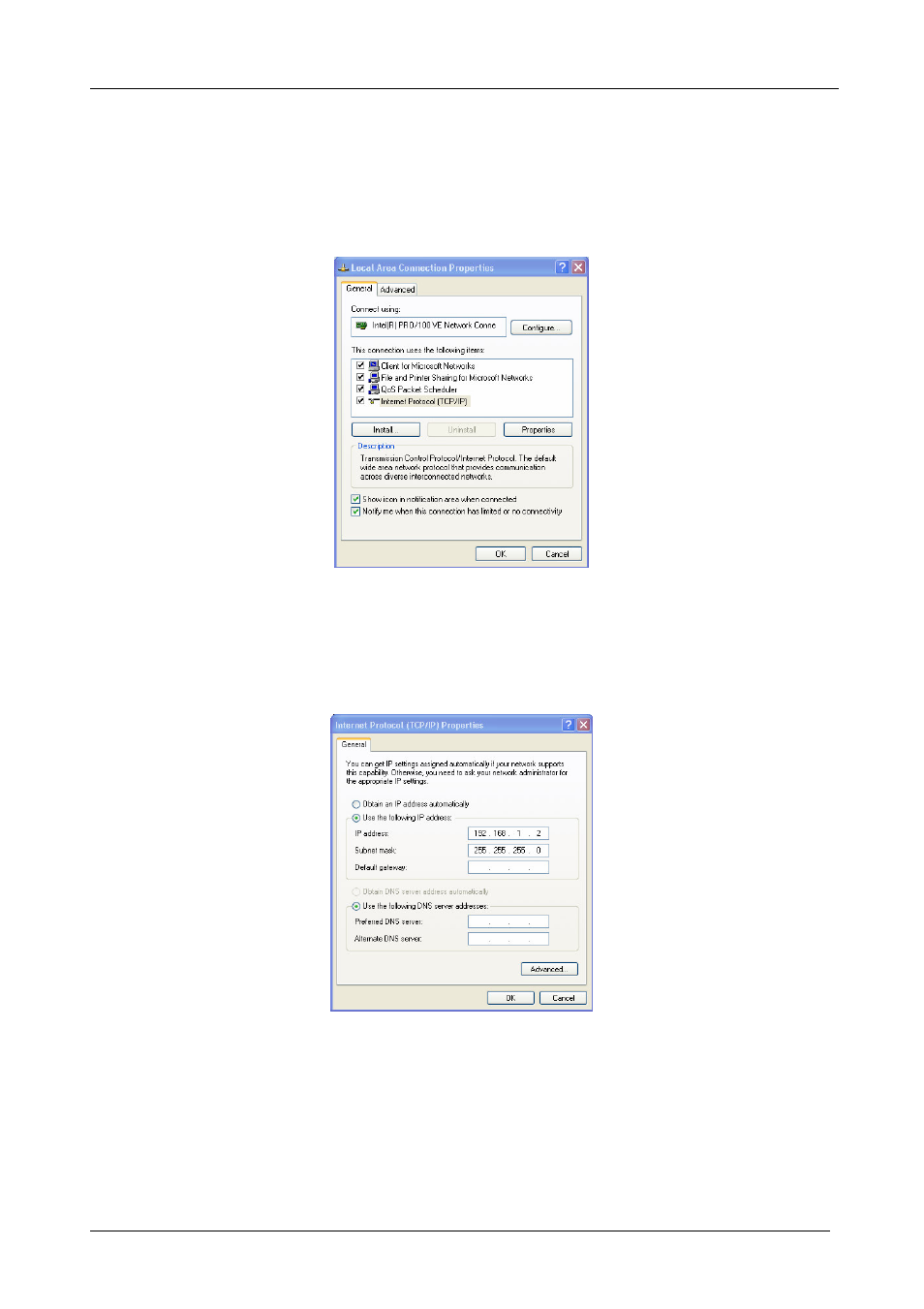

Figure 6: Local Area Connection Properties Window
6. Select Use the following IP address, and fill in the details as shown in
Figure 7.
7. Click
OK.
Figure 7: Internet Protocol (TCP/IP) Properties Window
6.2.2
Connecting the ETHERNET Port via a Network Hub (Straight-Through
Cable)
You can connect the Ethernet port of the
RC-160 to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45
connectors.
