10 RC-13TC - Grounding the RC-13TC Video Transport Controller
6 Grounding the RC-13TC Video Transport
Controller
We recommend that you ground the RC-13TC.
The grounding screw is used to earth the chassis of the unit to the building ground,
preventing static electricity from impacting the performance of the unit.

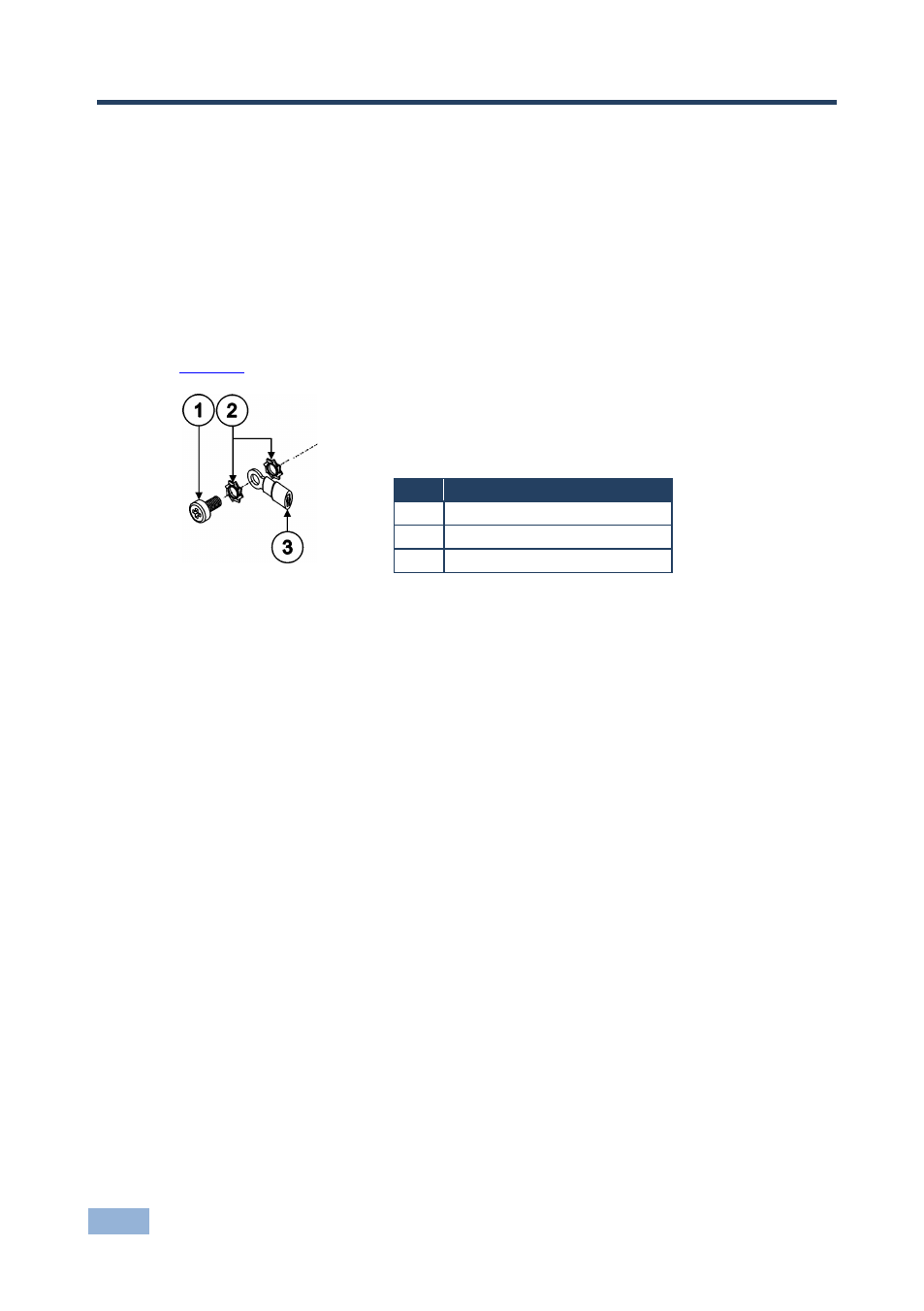

Figure 7 defines the grounding screw components.
# Component Description
1 M3x6 screw
2 M3 Toothed Lock Washer
3 M3 Ring Tongue Terminal
Figure 7: Grounding
Connection Components
To ground the RC-13TC:
1. Connect the ring tongue terminal to the building grounding point wire (we
recommend that you use a green-yellow AWG#18 (0.82mm2) wire, crimped
with a proper hand-tool).
2. Insert the M3x6 screw through the toothed lock washers and the tongue
terminal in the order shown above.
3. Insert the M3x6 screw (with the two toothed lock washers and ring tongue
terminal) into the grounding screw hole and tighten the screw.
