Operation
22
7.2 Setup Information
This section describes setup capacity, switching the power on, timeout and
the system settings.
7.2.1 Setting DIP-Switches
Each 88 Series switcher includes a rear panel set of six DIP-switches, as
Figure 12, Table 4 and Table 5 define.

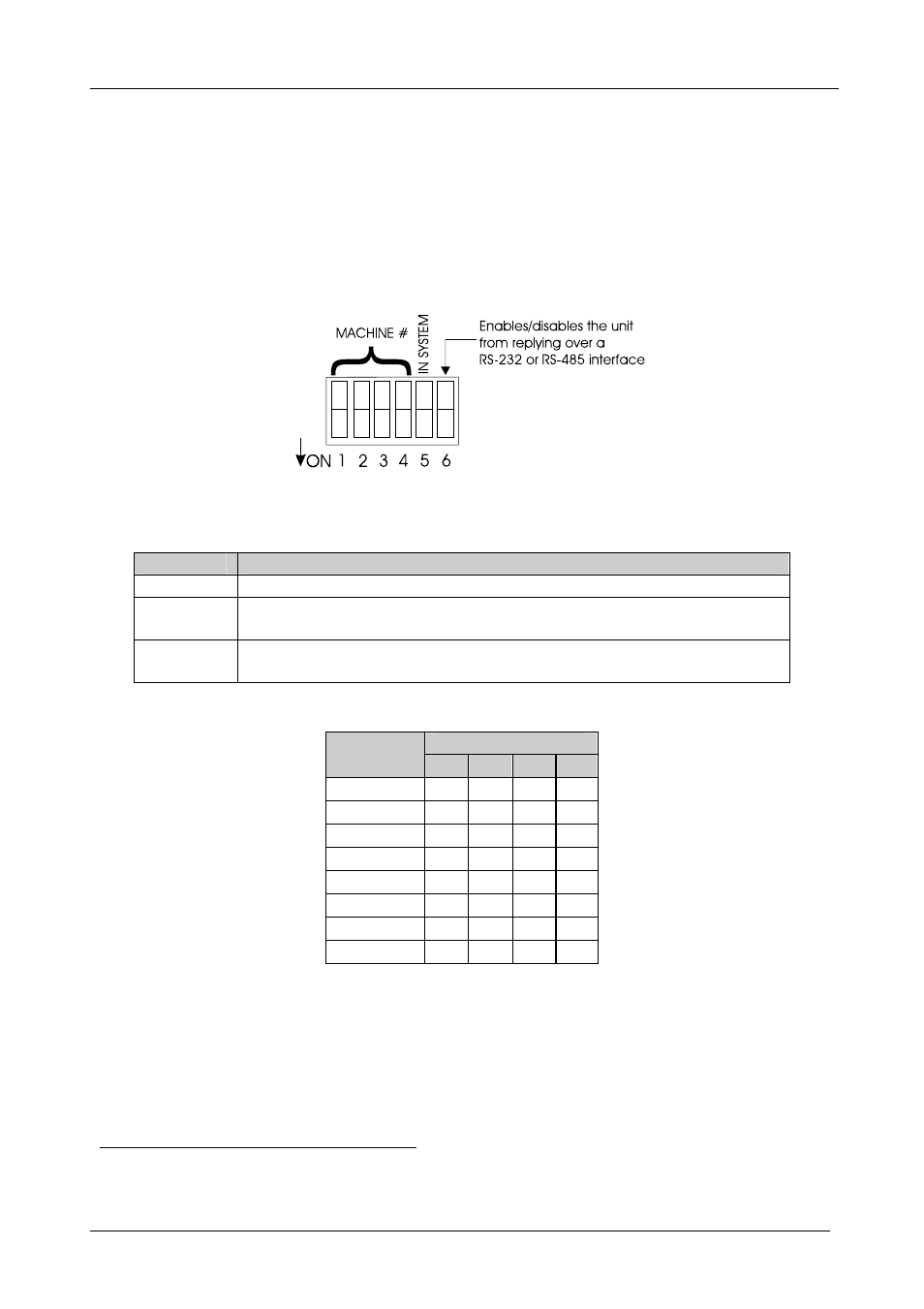

Figure 12: Rear Panel DIP-switches
Table 4: Rear Panel DIP-switches
DIP-switch #
Function:
1-4
Set the MACHINE NUMBER (refer to
Table 5
)
5
Disables use of the
IN SYSTEM
button
(OFF = enables the
IN SYSTEM
button; ON = disables the
IN SYSTEM
button)
6
Enables a reply from the unit after it receives an RS-232 / RS-485 command
(OFF = disables reply
1
;ON = enables reply)
Table 5: Machine # DIP-switch Settings
DIP-SWITCH
MACHINE #
1
2
3
4
1
OFF ON ON ON
2
ON OFF ON ON
3
OFF OFF ON ON
4
ON ON OFF ON
5
OFF ON OFF ON
6
ON OFF OFF ON
7
OFF OFF OFF ON
8
ON ON ON OFF
1 Helpful, for example, when using three composite video switchers to form one component video switcher
