Connecting Your 88 Series Matrix Switchers
16
6.2 Connecting a VS-88V
To connect the
VS-88V as shown in Figure 5:
1. Connect up to 8 composite video sources (for example, composite video
players) to INPUT BNC connectors 1 to 8
1
.
2. Connect up to 8 composite video acceptors (for example, composite video
recorders) to OUTPUT BNC connectors 1 to 8
1
.
3. Connect up to 2 video acceptors (for example, composite video displays
(not shown)) to the looping SYNC BNC connectors.
4. If you are using a PC to control the device, connect the serial port of the
controlling device to the RS-232 IN 9-pin D-sub connector.
5. Connect the power cord
2
.
6. Set DIP-switch # 1 OFF and DIP-switches # 2, 3, 4, 5 and 6 ON (see section
7.2.1). The IN SYSTEM button is non responsive.

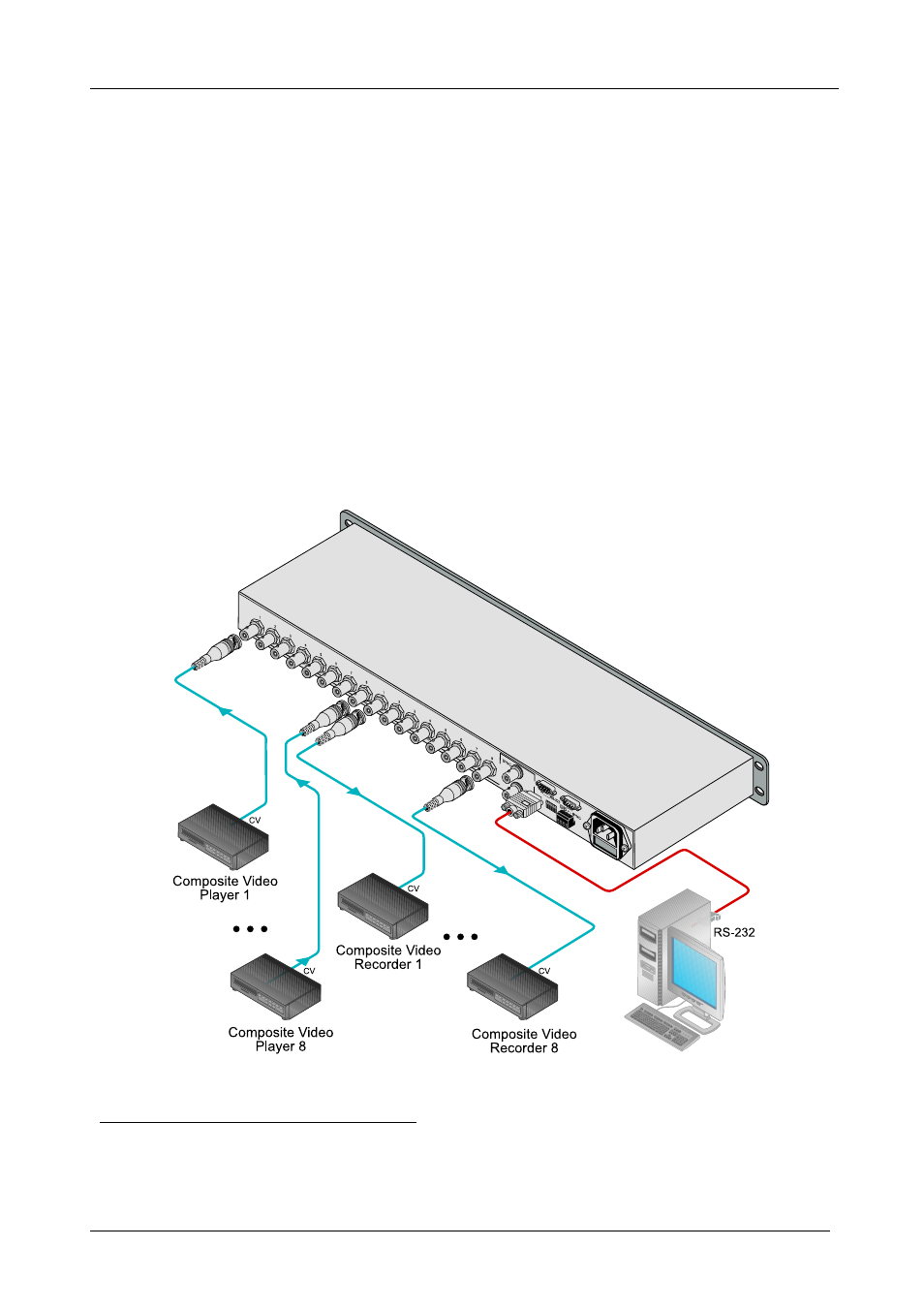

Figure 5: Connecting the VS-88V
1 You are not required to connect all inputs or outputs
2 We recommend that you use only the power cord that is supplied with this machine
