VS-401USB - Connecting the VS-401USB

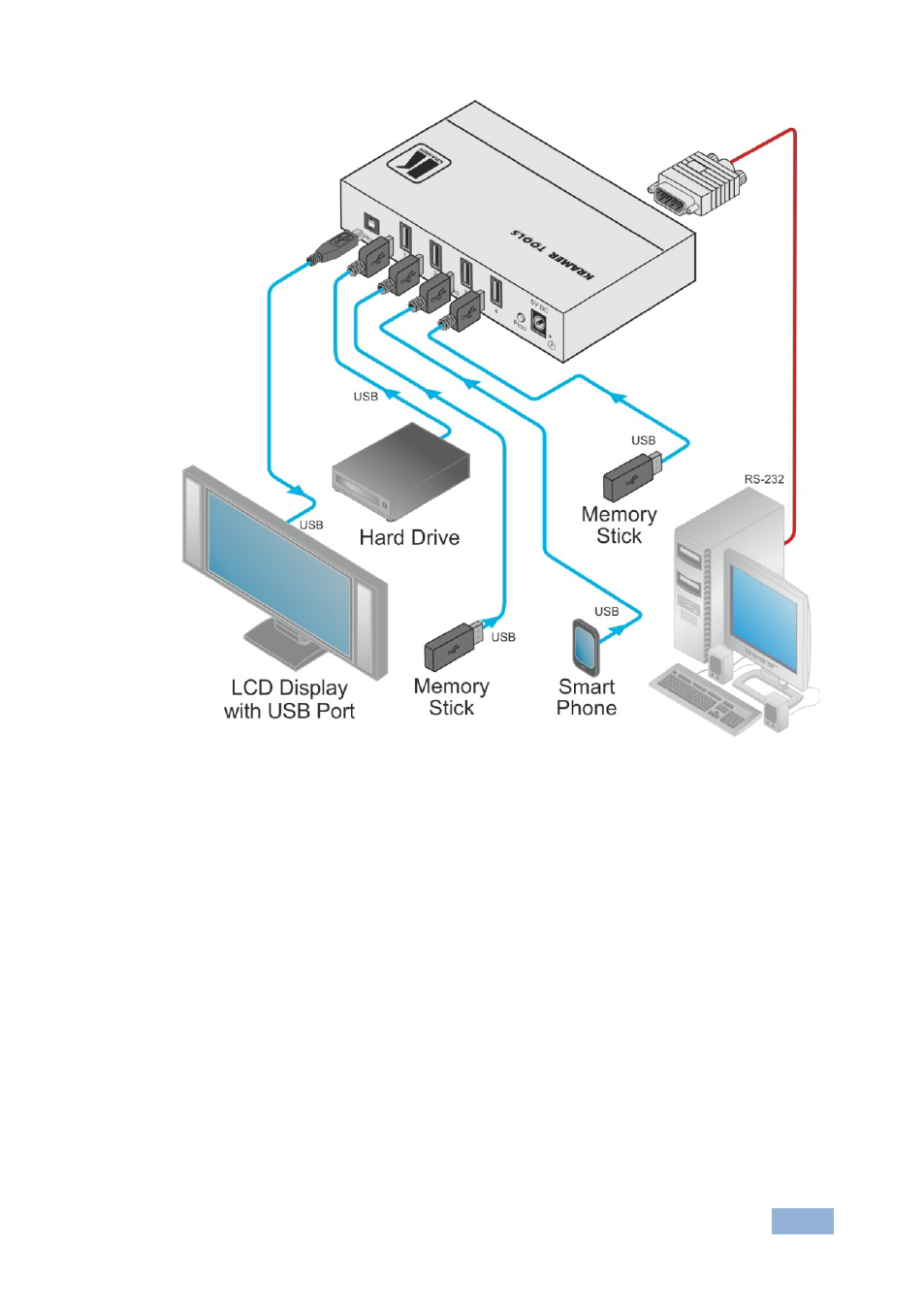

Figure 2: Connecting to the VS-401USB

5.1

Connecting a PC

You can connect to the

VS-401USB via an RS-232 connection using, for example,

a PC. Note that a null-modem adapter/connection is not required.

To connect to the

VS-401USB via RS-232, connect the RS-232 9-pin D-sub rear

panel port on the

VS-401USB unit via a 9-wire straight cable (only pin 2 to pin 2,

pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub
port on your PC.
