5.4 Getting to Know Your VP-201 Switcher
The KRAMER VP-201 is a full bandwidth, 2x1 High Resolution VGA/XGA Switcher designed for
computer and workstations applications. The VP-201 switches two VGA/Super-VGA/XGA graphics card
outputs to one monitor or vice versa, with no discernible signal degradation. State-of-the-art PCB layout
and careful transmission-line design make the KRAMER VP-201 the first choice among mechanical
Graphics Component Switchers. Signal bandwidth of 320MHz allows the VP-201 to be used with the
highest quality graphics workstations.
Panel features of the VP-201 are described in Figure 4 and Table 4.
NOTE
For operation instructions refer to section 8.

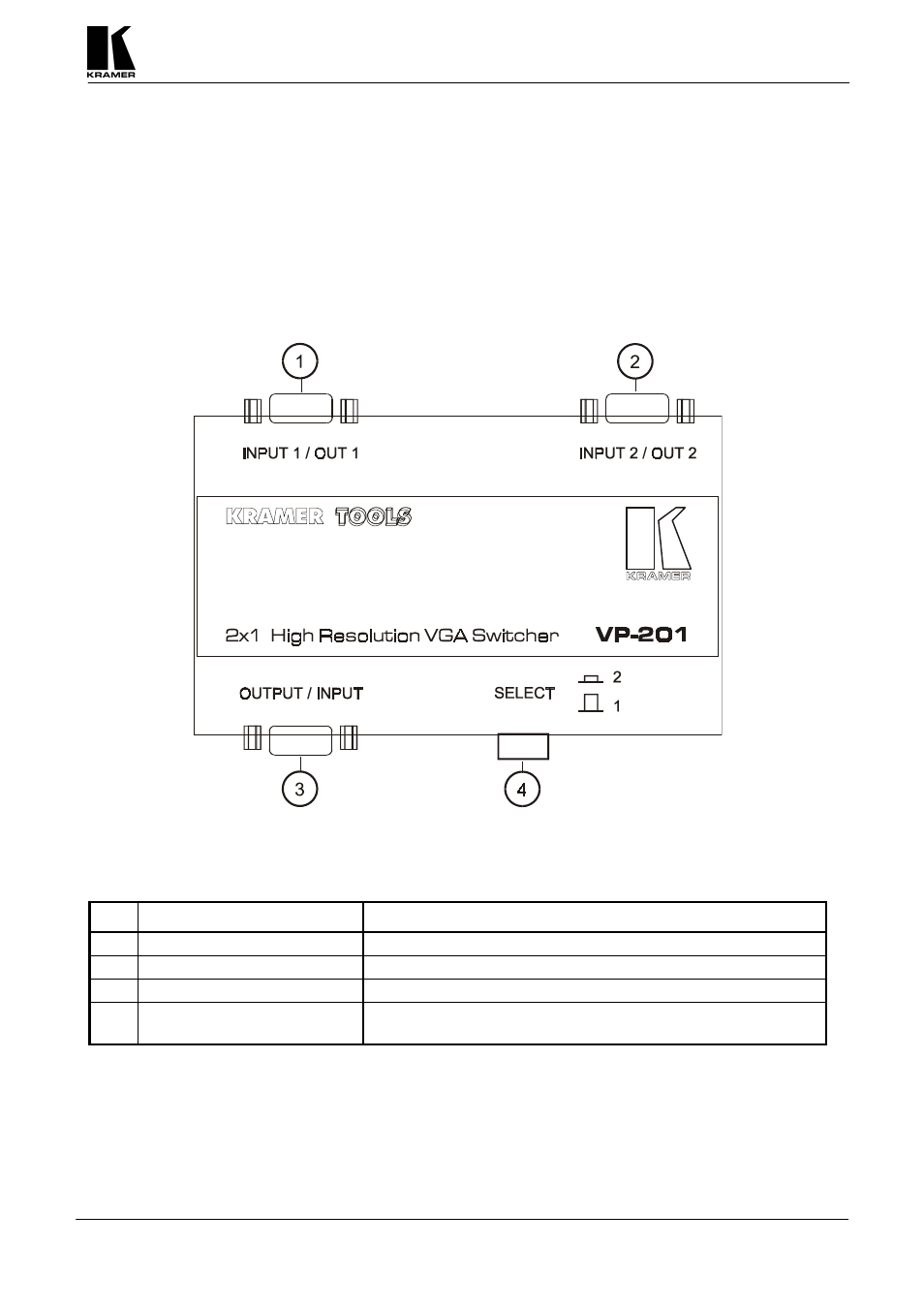

Figure 4: VP-201 Panel Features
Table 4: VP-201 VB Panel Features
No. Feature Function
1. INPUT 1 HD15F connector VGA/XGA signal input 1 (output 1.)
2. INPUT 2 HD15F connector VGA/XGA signal input 2 (output 2.)
3. OUTPUT HD15F connector VGA/XGA signal output (input.)
4. SELECT – input selector
button Select the desired input (INPUT 1 when released, INPUT 2 when
pressed.)
