Technical Specifications

KRAMER ELECTRONICS, LTD.

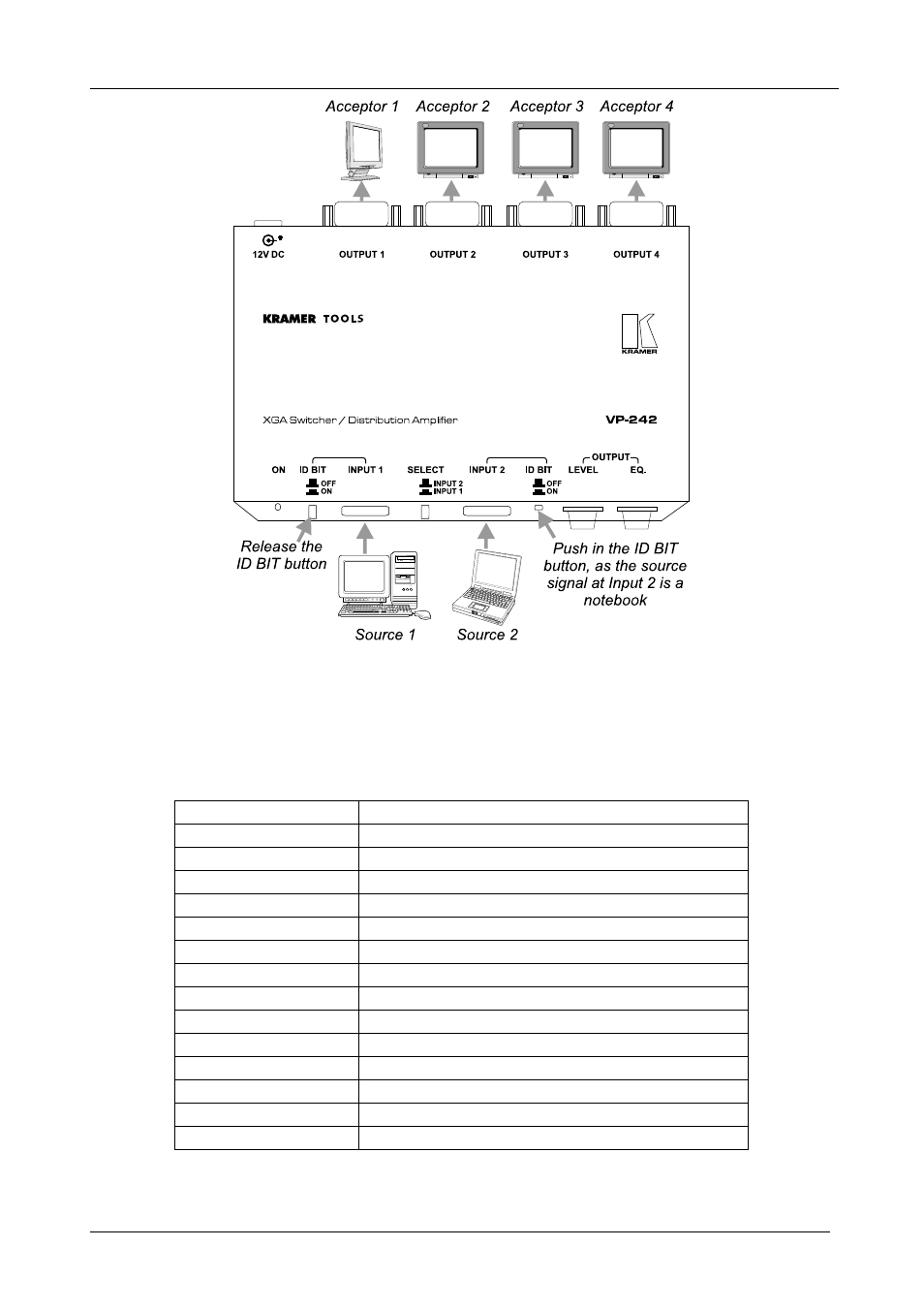

Figure 2: VP-242 XGA Switcher / Distribution Amplifier Connections

6 Technical Specifications

Table 2 includes the technical specifications:

Table 2: Technical Specifications of the VP-242 XGA Switcher / Distribution Amplifier

INPUTS:

2 VGA/UXGA on HD15F connectors

OUTPUTS:

4 VGA/UXGA on HD15F connectors

MAX. OUTPUT LEVEL: 2.5 Vpp / 75 ohms
BANDWIDTH (-3dB):

410 MHz

DIFF. GAIN:

0.05%

DIFF. PHASE:

0.03 Deg.

K-FACTOR:

<0.05%

S/N RATIO:

73 dB

CROSSTALK:

- 61 dB

CONTROLS:

Level: -1 to +6 dB; EQ.: 0 to +8dB @ 5 MHz.

COUPLING:

POWER SOURCE:

12 VDC, 100 mA

DIMENSIONS:

19 cm x 13.5 cm x 2.5 cm (7.5” x 5.3” x 0.98”) W, D, H.

WEIGHT:

0.6 kg. (1.32 lbs.) Approx.

ACCESSORIES:

12 VDC power supply
