Connecting Your Distribution Amplifier
7
4.3 Your VM-3VN Video DA

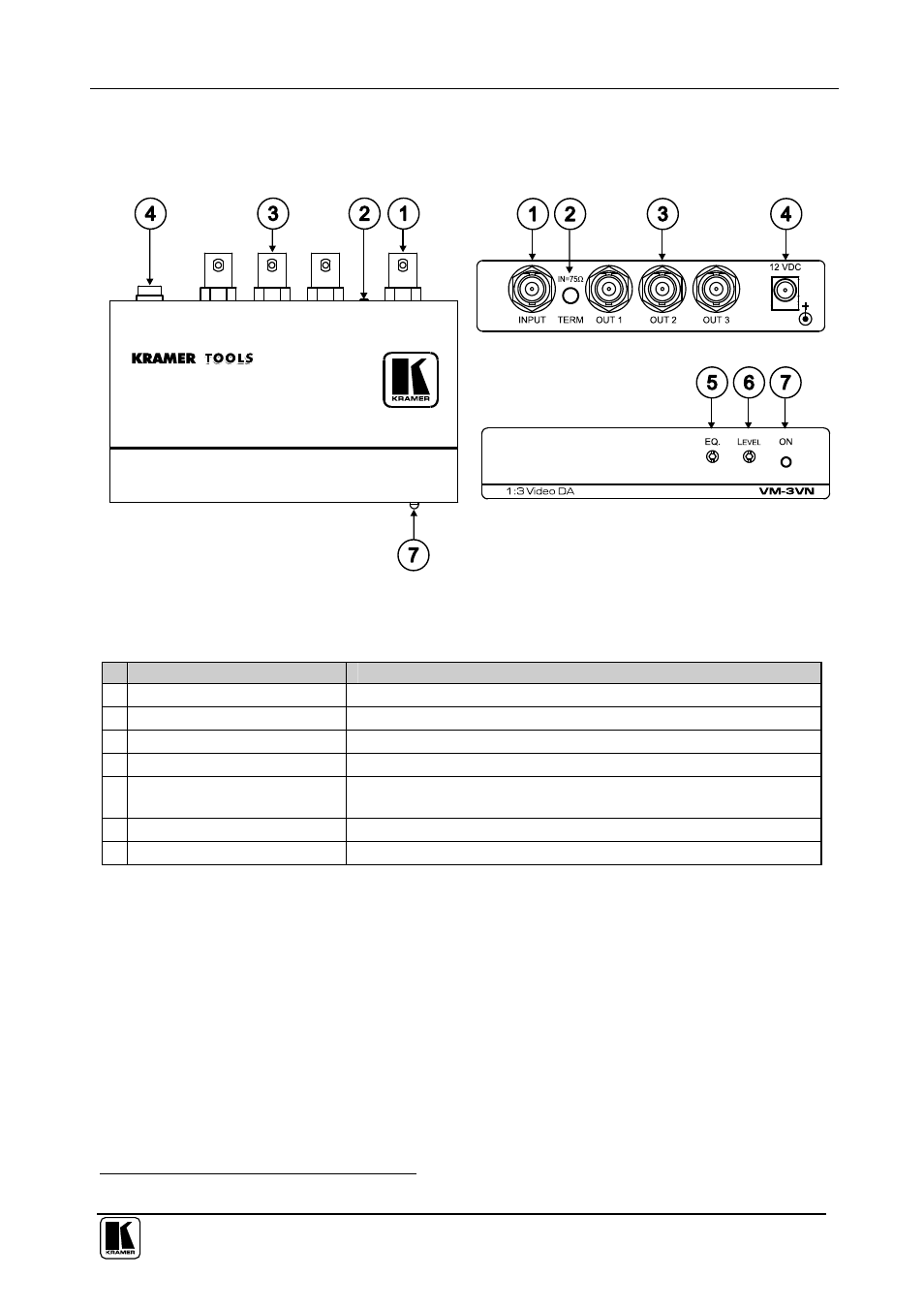

Figure 3 and Table 3 define the VM-3VN:
Figure 3: VM-3VN Video DA
Table 3: VM-3VN Video DA Features
# Feature Function
1 INPUT BNC Connector Connects to the composite video source
2 IN=75 TERM Pushbutton Terminates the input with 75
3 OUT BNC Connector Connects to the composite video acceptor (from 1 to 3)
4 12V DC +12V DC connector for powering the unit
5 EQ Trimmer Adjusts 1 the EQ. (equalization) compensation level for the composite
video outputs
6 LEVEL Trimmer Adjusts 1 signal level for the composite video outputs
7 ON LED Illuminates when receiving power
5 Connecting Your Distribution Amplifier
This section explains how to connect your:
VM-3AN Audio DA, see section 5.1
VM-3SN s-Video DA, see section 5.2
VM-3VN Video DA, see section 5.3
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the appropriate output level
