Your Distribution Amplifier
6
4.2 Your VM-3SN s-Video DA
Figure 2 and Table 2 define the VM-3SN:

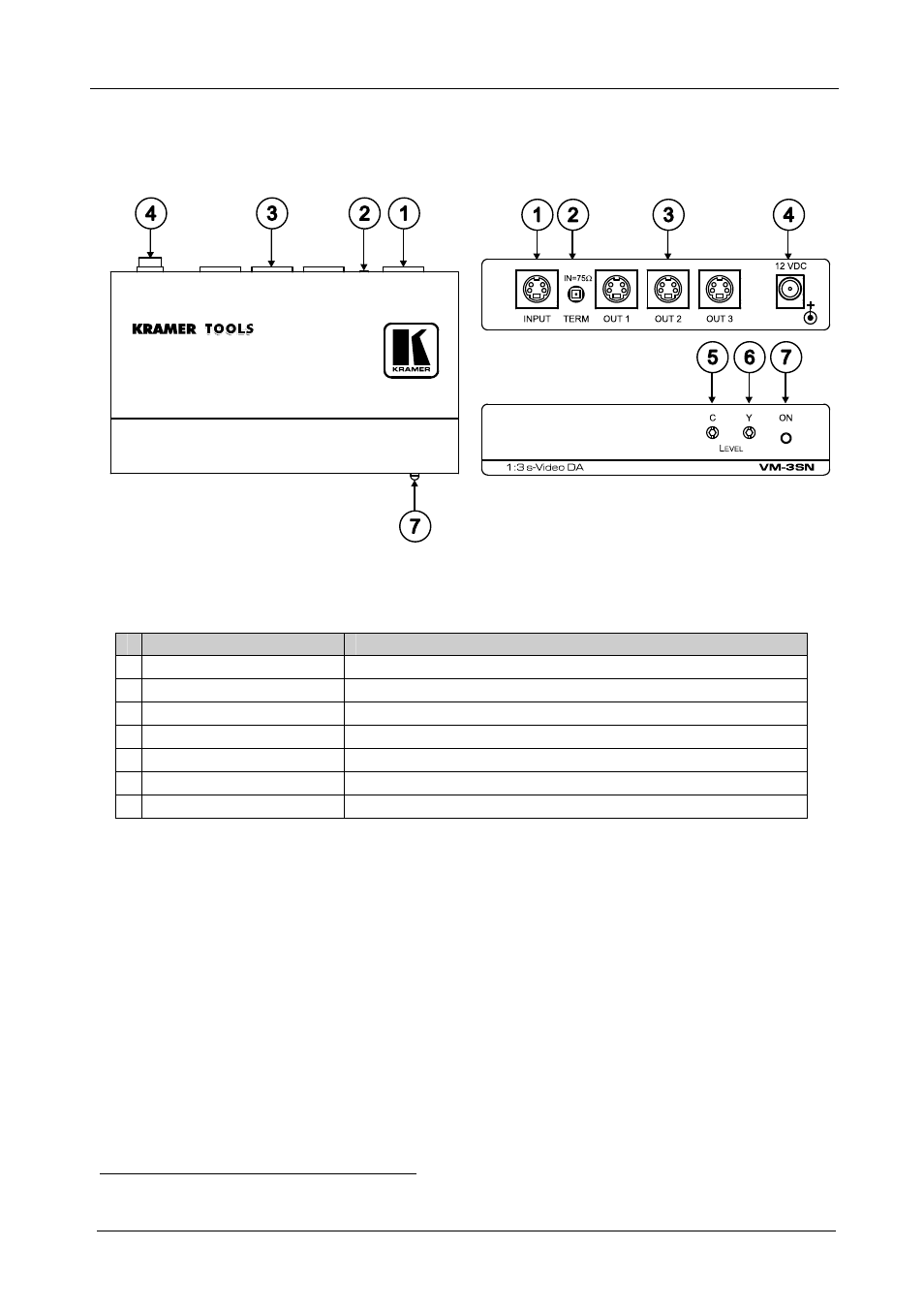

Figure 2: VM-3SN s-Video DA
Table 2: VM-3SN s-Video DA Features
# Feature Function
1 INPUT 4-pin Connector Connects to the s-Video source
2 IN=75 TERM Pushbutton Terminates the input with 75
3 OUT 4-pin Connector
Connects to the audio acceptor (from 1 to 3)
4 12V DC +12V DC connector for powering the unit
5 C LEVEL Trimmer Adjusts 1 the chrominance output signal level for the s-Video output
6 Y LEVEL Trimmer Adjusts 1 the luminance output signal level for the s-Video output
7 ON LED Illuminates when receiving power
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the appropriate output level
