Connecting Your Distribution Amplifier
10
5.3 Connecting Your VM-3VN Video DA
To connect 1 the VM-3VN, as illustrated in the example in Figure 6, do the
following:
1. Connect the composite video source to the INPUT BNC connector.
2. Terminate the input by ensuring that the TERM switch is pressed to the IN
position.
3. Connect the OUT BNC connectors (from 1 to 3) to up to three composite
video acceptors 2 .
4. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not illustrated in Figure 6).
5. If required, adjust output equalization (EQ) and signal level (LEVEL) by
turning the appropriate trimmer with a small screwdriver.

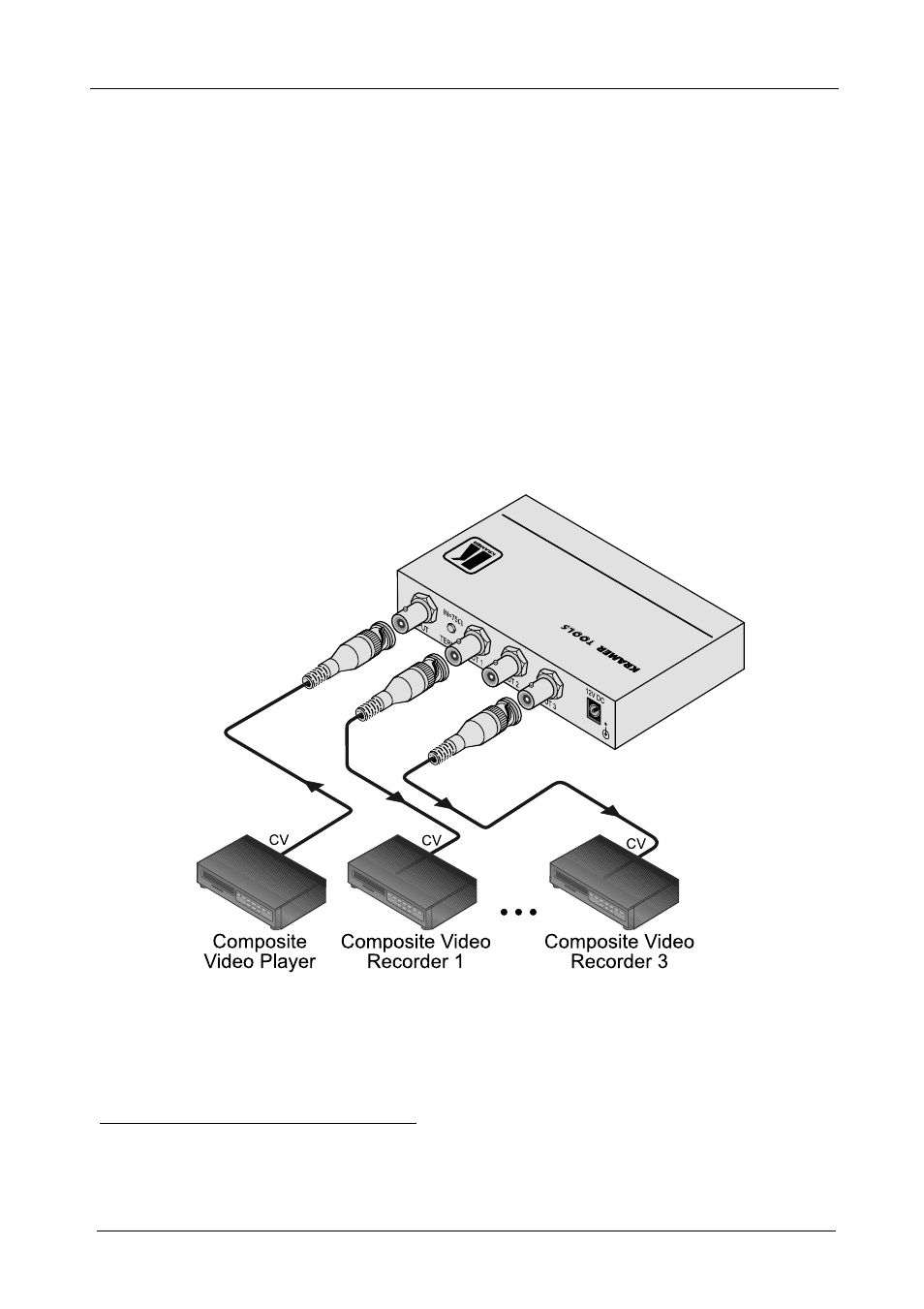

Figure 6: Connecting the VM-3VN Video Distributor
1 Switch OFF the power on each device before connecting it to your VM-3VN. After connecting your VM-3VN, switch on its
power and then switch on the power on each device
2 You do not have to connect all the outputs
