Connecting Your Distribution Amplifier
8
5.1 Connecting Your VM-3AN Audio DA
To connect 1 the VM-3AN, as illustrated in the example in Figure 4, do the
following:
1. Connect the balanced stereo audio source to the INPUT terminal block
connector.
2. Connect the OUT terminal block connectors (from 1 to 3) to up to three
balanced stereo audio acceptors 2 (for example, power amplifiers).
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not illustrated in Figure 4).
4. If required, adjust the audio signal levels by turning the LEFT and RIGHT
level trimmers with a small screwdriver.

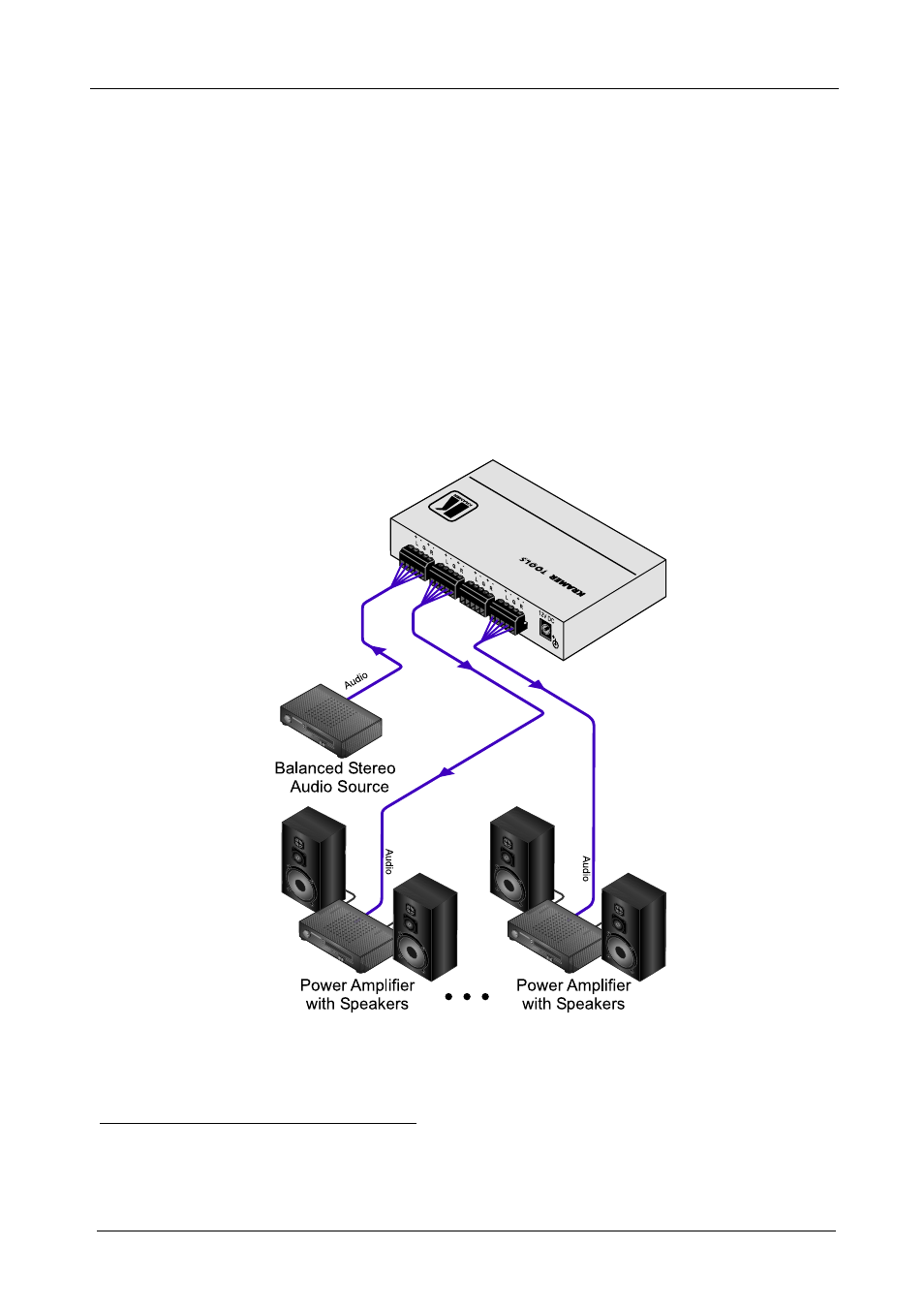

Figure 4: Connecting the VM-3AN Audio Distributor
1 Switch OFF the power on each device before connecting it to your VM-3AN. After connecting your VM-3AN, switch on its
power and then switch on the power on each device
2 You do not have to connect all the outputs
