Your Distribution Amplifier
5
4.1 Your VM-3AN Audio DA

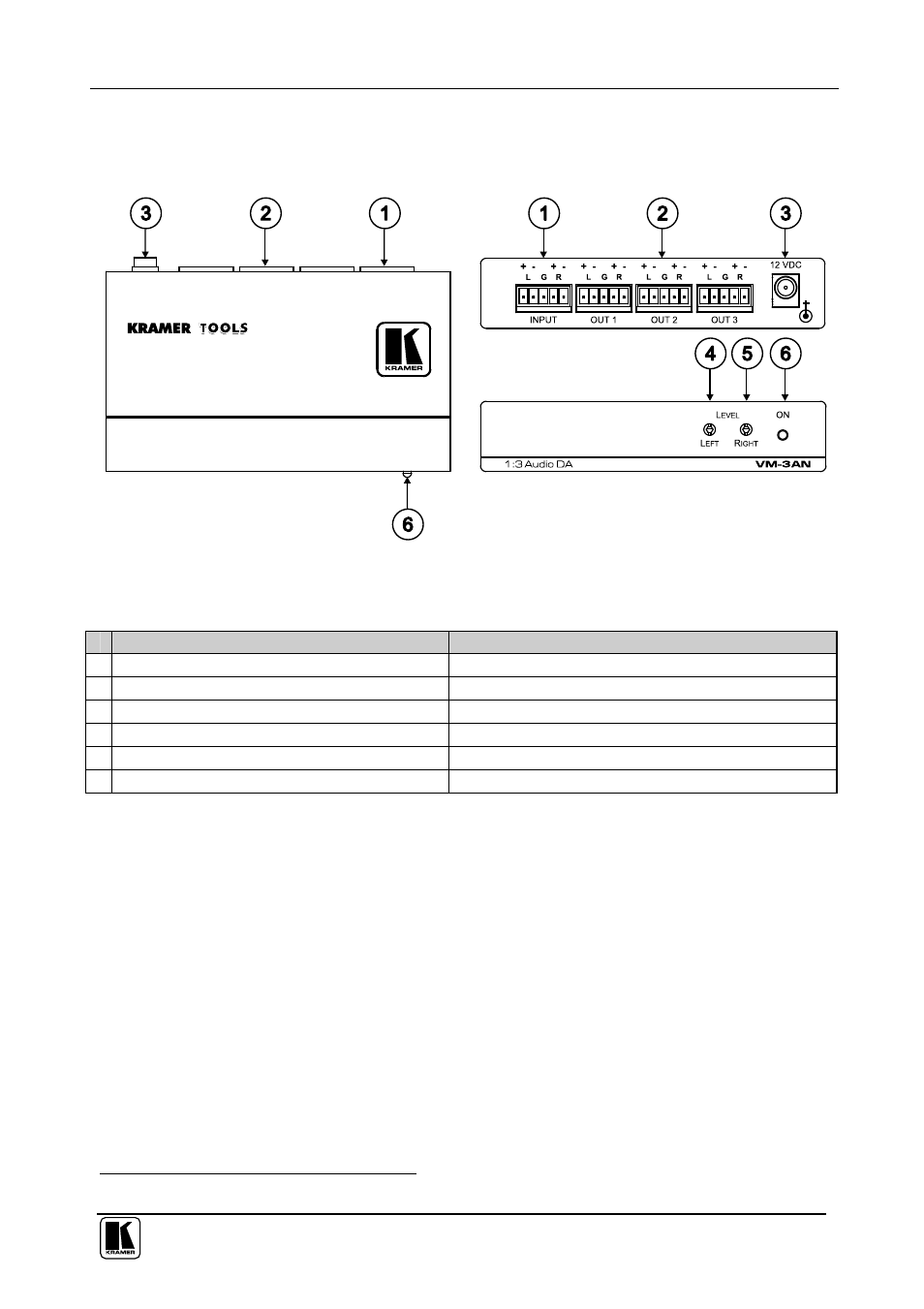

Figure 1 and Table 1 define the VM-3AN:
Figure 1: VM-3AN Audio DA
Table 1: VM-3AN Audio DA Features
# Feature Function
1 INPUT Detachable Terminal Block Connector Connects to the balanced audio source
2 OUT Detachable Terminal Block Connector Connects to the balanced audio acceptor (from 1 to 3)
3 12V DC +12V DC connector for powering the unit
4 LEFT LEVEL Trimmer Adjusts 1 the left output signal level
5 RIGHT LEVEL Trimmer Adjusts 1 the right output signal level
6 ON LED Illuminates when receiving power
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the appropriate output level
