4.2
Connecting the VM-1010
Always switch off the power to each device before connecting it to your
VM-1010. After connecting your VM-1010, connect its power and then
switch on the power to each device.
To connect the VM-1010 as illustrated in the example in
1. Connect up to two video sources (for example composite video players) to
CHANNEL A INPUT A and CHANNEL B INPUT B BNC connectors.
2. Connect up to five video acceptors (for example, composite video recorders)
to each channel.
3. As required, select the coupling and termination, the MODE (2x1:5 or 1:10)
and adjust the EQ and LEVEL of each channel as needed.

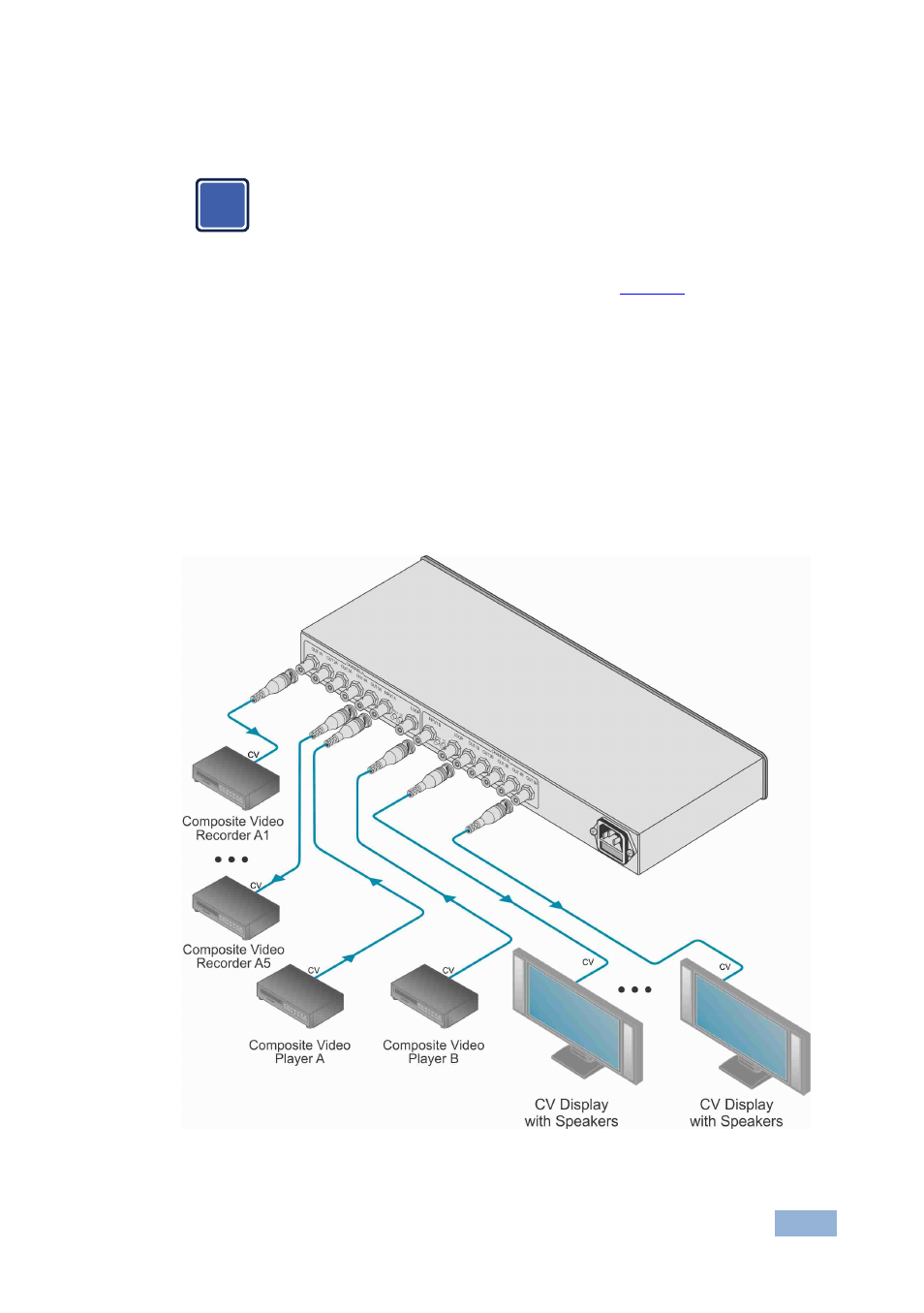

Figure 3: Connecting the VM-1010
