VM-1010, VM-1021, VN-1055, VM-54 - Your VM-1021 11
VM-1010, VM-1021
, V
N
-10
55, VM-54
–
The VM-102
1 1:2
0 Video
Dist
ributo
r
11

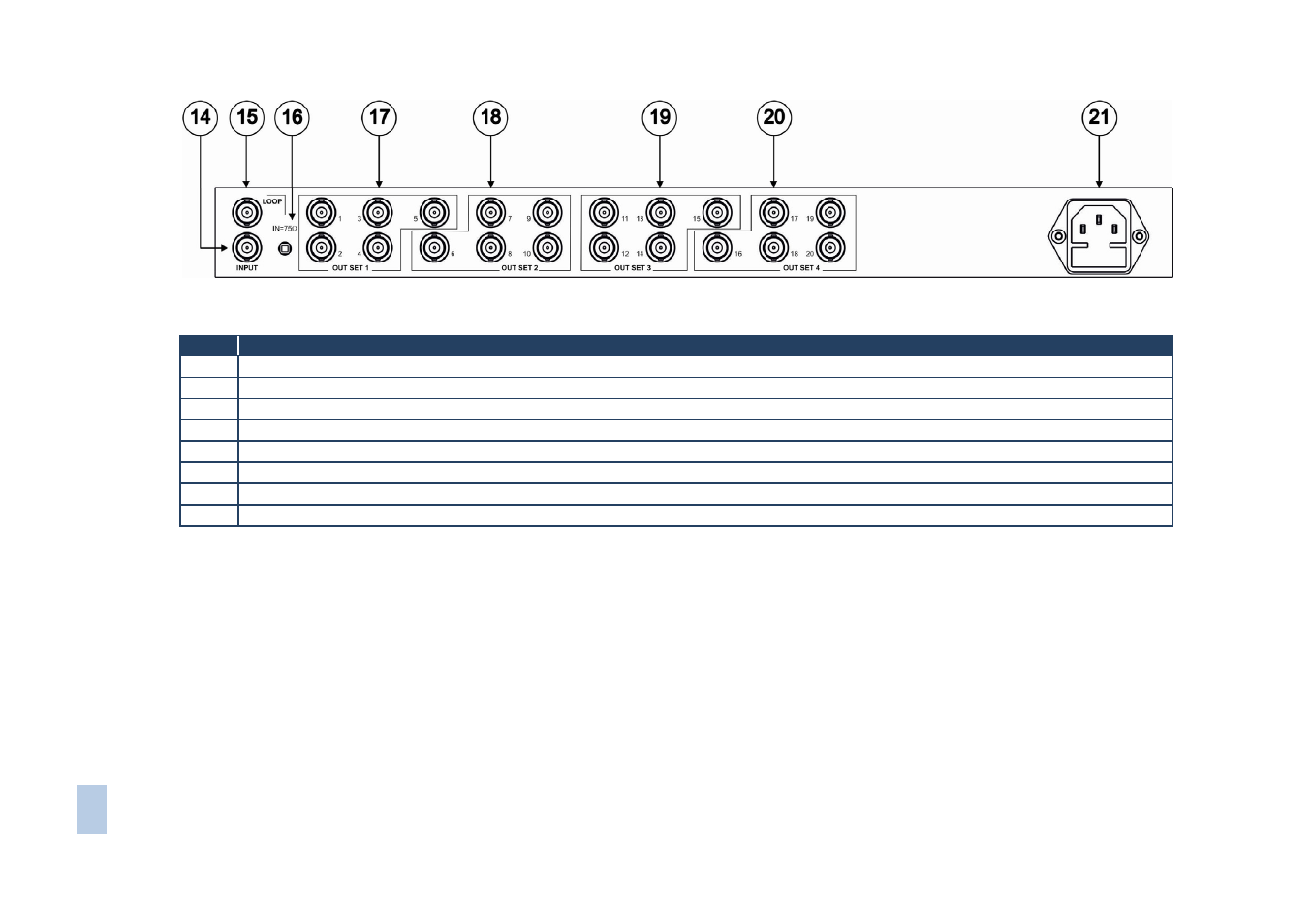

Figure 5: VM-1021 1:20 Video Distributor Rear Panel
# Feature Function
14 INPUT BNC Connector Connects to a composite/component/ analog sync video source
15 LOOP BNC Connector Selects “75Ω“ or “HI-z” impedance when pressed (for looping select "Hi-z")
16 IN=75Ω Button Provides video looping capability to increase number of outputs
17 OUT SET 1 BNC Connectors (1-5) SET 1 of 5 amplified buffered and clamped video outputs 1-5
18 OUT SET 2 BNC Connectors (6-10) SET 2 of 5 amplified buffered and clamped video outputs 6-10
19 OUT SET 3 BNC Connectors (11-15) SET 3 of 5 amplified buffered and clamped video outputs 11-15
20 OUT SET 4 BNC Connectors (16-20) SET 4 of 5 amplified buffered and clamped video outputs 16-20
21 Power Connector AC connector and fuse enabling power supply to the unit
