VM-1010, VM-1021, VN-1055, VM-54 - Your VM-1055
17
6.2
Connecting the VM-1055
Always switch off the power to each device before connecting it to your
VM-1055. After connecting your VM-1055, connect its power and then
switch on the power to each device.
To connect the VM-1055 as illustrated in the example in
1. Connect up to 5 video sources (for example, the RGBHV output from a PC
video card) to the IN BNC connectors.
2. Connect the OUT BNC connectors to up to 5 video acceptors (for example,
the RGBHV projectors and displays).
3. Set the termination switches for the Hs and Vs channels as needed.

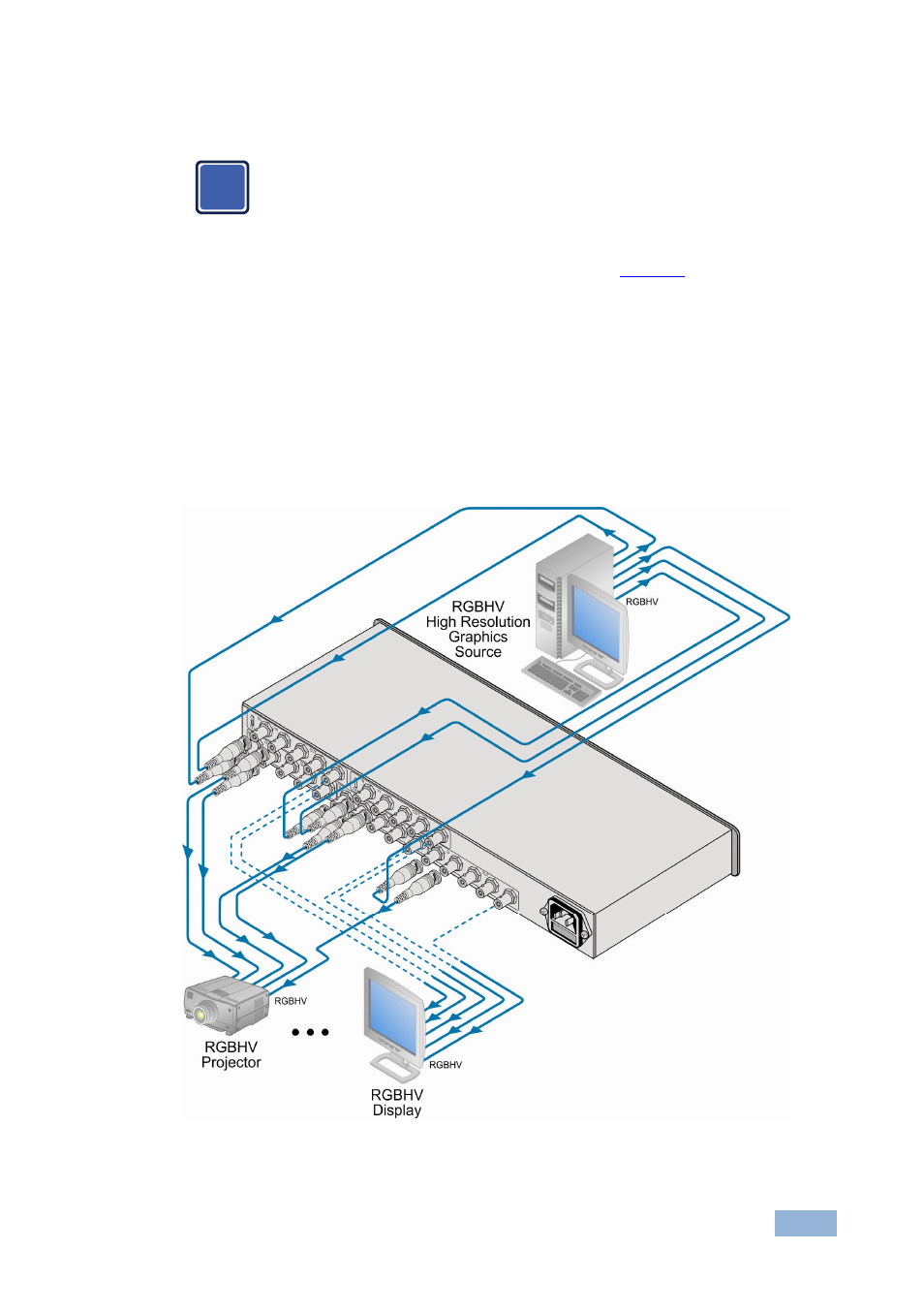

Figure 9: Connecting the VM-1055
