3.3 About the PT102VN 1:2 Video DA
The PT102VN 1:2 Video DA is a micro-sized high performance 1:2
distribution amplifier for composite video signals. The PT102VN:
Accepts a single input and distributes it to 2 identical outputs using BNC
connectors
Has a bandwidth of 470 MHz, ensuring that it remains transparent even in
the most critical applications
Has gain and equalization (EQ.) controls to compensate for cable losses
Is ideally suited to work with the Pico TOOLS
PT102A 1:2 Audio DA

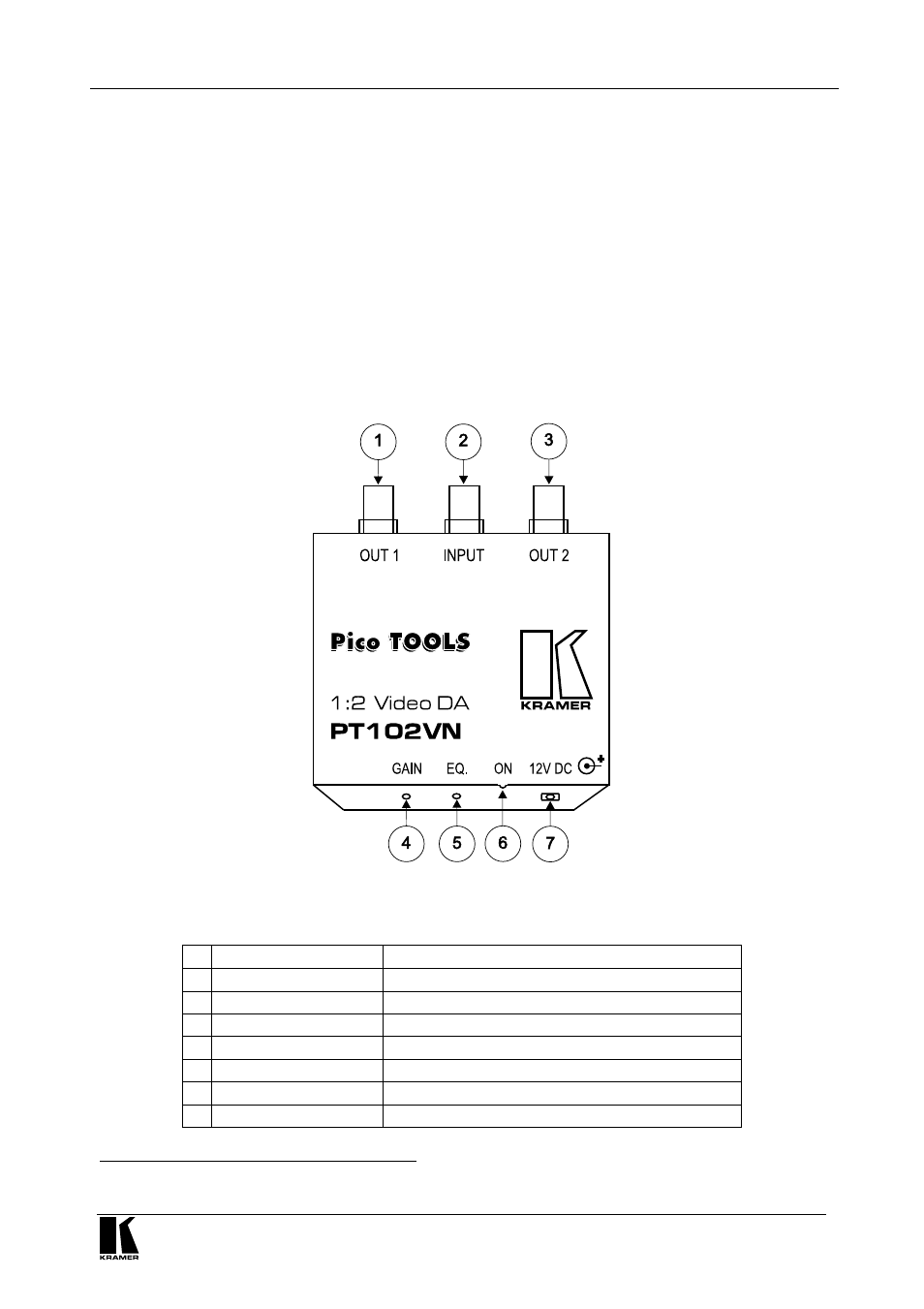

Figure 3 and Table 3 define the PT102VN 1:2 Video DA:
Figure 3: PT102VN 1:2 Video DA
Table 3: Features and Functions of the PT102VN 1:2 Video DA
# Feature Function
1 OUT 1 BNC Connector Connects to composite video acceptor 1
2 INPUT BNC Connector Connects to the composite video source
3 OUT 2 BNC Connector Connects to the composite video acceptor 2
4 GAIN Trimmer
Adjusts 1 the video signal level for outputs 1 and 2
5 EQ. Trimmer Adjusts 1 the cable compensation equalization level
6 ON LED Illuminates when receiving power
7 12V DC +12V DC connector for powering the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
