Overview
3
3.1 About the PT102A 1:2 Audio DA
The PT102A 1:2 Audio DA is a micro-sized high performance 1:2 distribution
amplifier for unbalanced 1 stereo audio signals 2 . The PT102A:
Accepts a single input and distributes it to 2 identical outputs using
3.5mm mini connectors
Has separate left and right gain controls for optimizing signal levels
Is ideally suited to work with the Pico TOOLS
PT102VN 1:2 Video DA
and the Pico TOOLS PT102S 1:2 s-Video DA
Figure 1 and Table 1 define the PT102A 1:2 Audio DA:

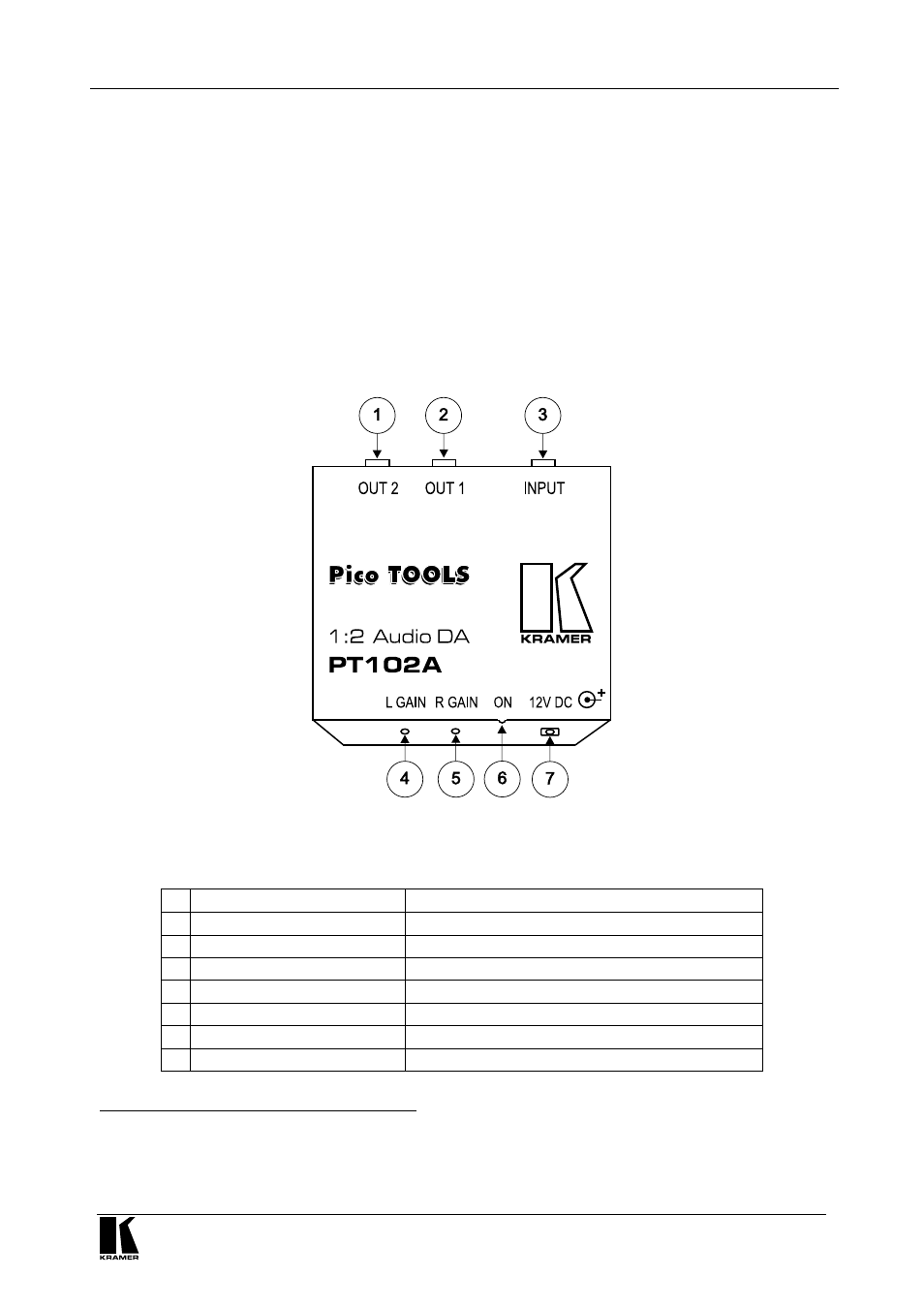

Figure 1: PT102A 1:2 Audio DA
Table 1: Features and Functions of the PT102A 1:2 Audio DA
# Feature Function
1 OUT 2 3.5mm Mini Connector Connects to stereo audio acceptor 2
2 OUT 1 3.5mm Mini Connector Connects to stereo audio acceptor 1
3 INPUT 5mm Mini Connector
Connects to the stereo audio source
4 L GAIN Trimmer Adjusts 3 the output level of the left audio channel
5 R GAIN Trimmer Adjusts 3 the output level of the right audio channel
6 ON LED Illuminates when receiving power
7 12V DC +12V DC connector for powering the unit
1 You can use the PT102A to distribute a balanced mono audio signal, via readily available adapter cables
2 For example, portable cassette and CD players
3 Insert a screwdriver into the hole and carefully rotate it, to trim the level
