Overview
KRAMER ELECTRONICS, LTD.
4
3.2 About the PT102S 1:2 s-Video DA
The PT102S 1:2 s-Video DA is a micro-sized high performance 1:2
distribution amplifier for s-Video (Y/C) signals. The PT102S:
Accepts a single input and distributes it to 2 identical outputs using 4 pin
connectors
Has a bandwidth of 150 MHz, ensuring that it remains transparent even in
the most critical applications
Has separate chrominance and luminance gain controls
Is ideally suited to work with the Pico TOOLS
PT102A 1:2 Audio DA

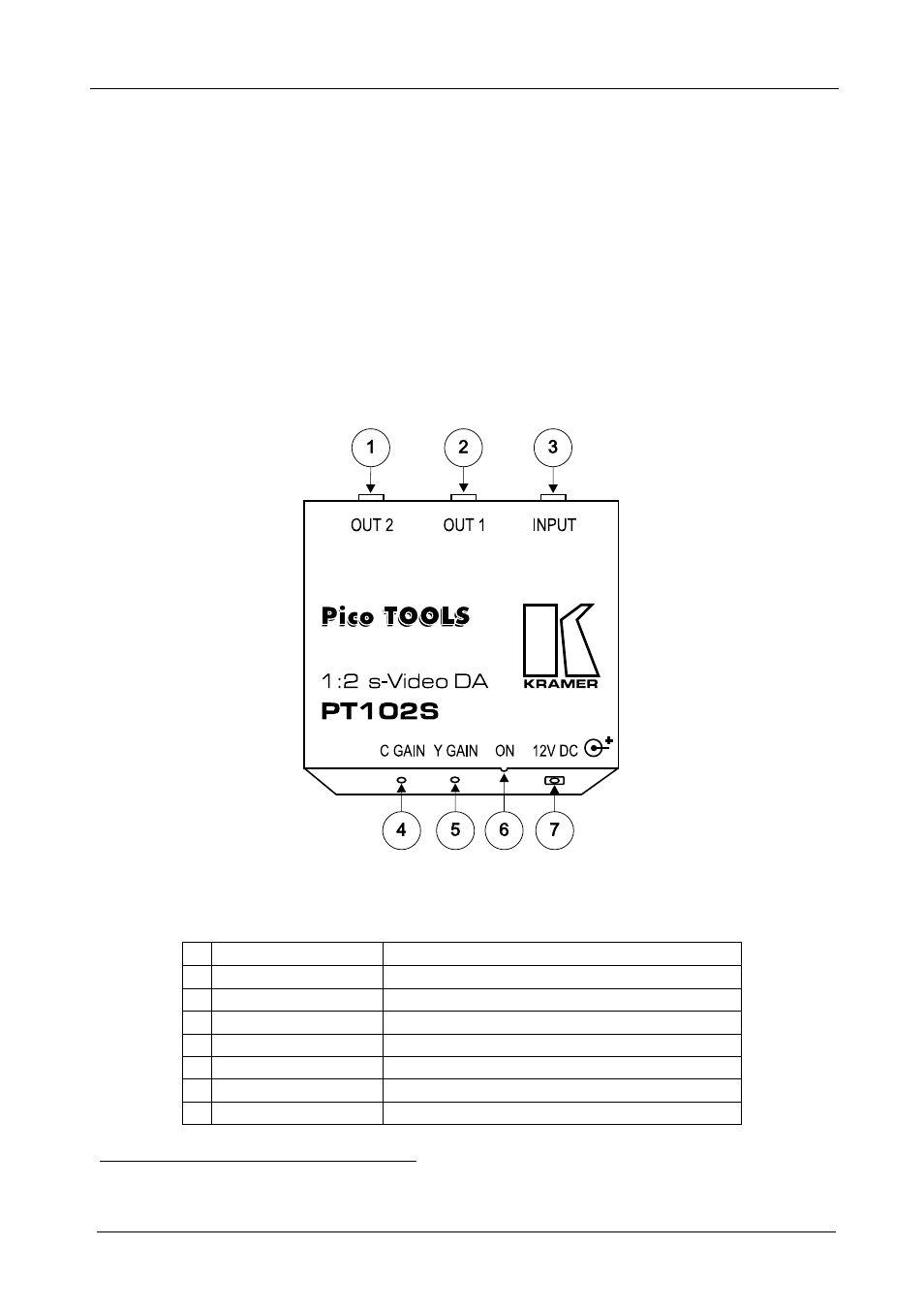

Figure 2 and Table 2 define the PT102S 1:2 s-Video DA:
Figure 2: PT102S 1:2 s-Video DA
Table 2: Features and Functions of the PT102S 1:2 s-Video DA
# Feature Function
1 OUT 2 4p Connector Connects to s-Video acceptor 2
2 OUT 1 4p Connector Connects to s-Video acceptor 1
3 INPUT 4p Connector Connects to the s-Video source
4 C GAIN Trimmer Adjusts 1 the chroma (chrominance) output level
5 Y GAIN Trimmer Adjusts 1 the luma (luminance) output level
6 ON LED Illuminates when receiving power
7 12V DC +12V DC connector for powering the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
