3.2. Product Overview
The external connections and connection indicators of the HDMI 4x4 Matrix Switch
are detailed in Figure 2 and Figure 3 (mounting brackets not shown). Please
familiarize yourself with them before installing the unit.

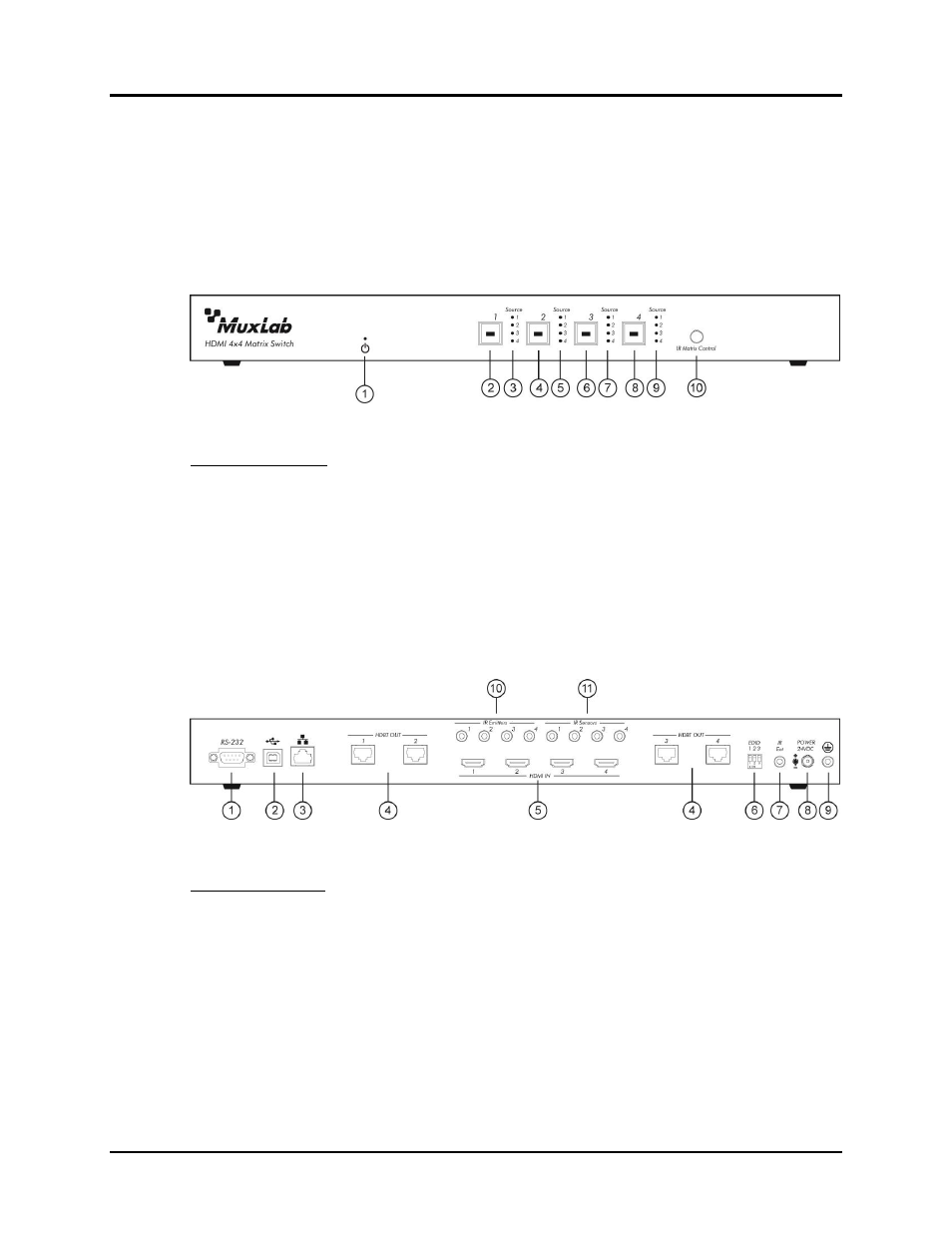

Figure 2: Front Panel
Front Panel Legend
1. Power indicator (blue LED)
2. Display 1 pushbutton (blue LED)
3. Source selection indicators for display 1 (green LEDs)
4. Display 2 pushbutton (blue LED)
5. Source selection indicators for display 2 (green LEDs)
6. Display 3 pushbutton (blue LED)
7. Source selection indicators for display 3 (green LEDs)
8. Display 4 pushbutton (blue LED)
9. Source selection indicators for display 4 (green LEDs)
10. Sensor for Matrix Switch remote
Figure 3: Back Panel
Back Panel Legend
1. RS-232 Port
2. USB Port
3. LAN Port (RJ45)
4. HDBT OUT ports (RJ45)
5. HDMI IN ports
6. DIP switch for EDID
7. 3.5 MM port for IR extender cable
8. Power Supply port
9. Ground Port
10. 3.5 MM ports for IR emitter cables
11. 3.5 MM ports for IR sensor cables
