Muxlab HDMI 4×4 Matrix Switch Kit, HDBT, PoE - Manual (Page 25)

© MuxLab Inc. HDMI 4x4 Matrix Switch, HDBT Installation Guide
Page 25
(2) Setup
The Setup submenu (Figure 20) is used to perform the following tasks:
• Modify port names
• Modify present names
• Modify network connections and passwords
• Modify RS232 connections
• Modify alarm settings
• Upgrade firmware

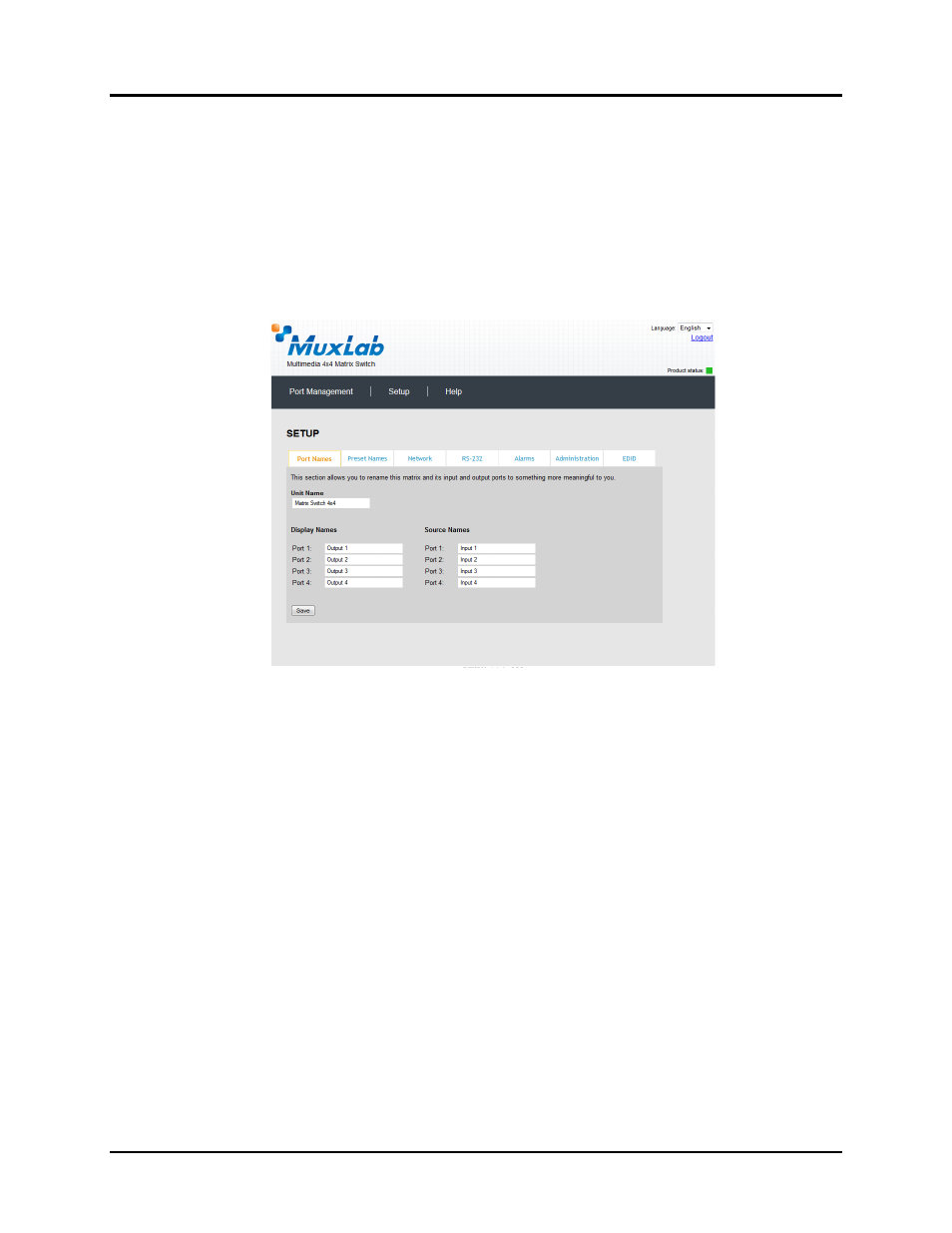

Figure 20: Setup Submenu – Port Names Tab
In the Port Names tab, the user can modify port names in the Display Names and
Source Names columns, and then click on Save to save these modifications. The user
can also modify the name of the entire device by changing the text that appears in the
Unit Name box and clicking on Save.
The length of all names is limited to 20 characters each.
