3.4. Physical Installation
MuxLab’s HDMI 4x4 Matrix Switch, HDBT comes with mounting brackets for
standard 19” rack mounting. Select the final destination for the product and install the
unit using standard rack-mount screws (Figure 4).

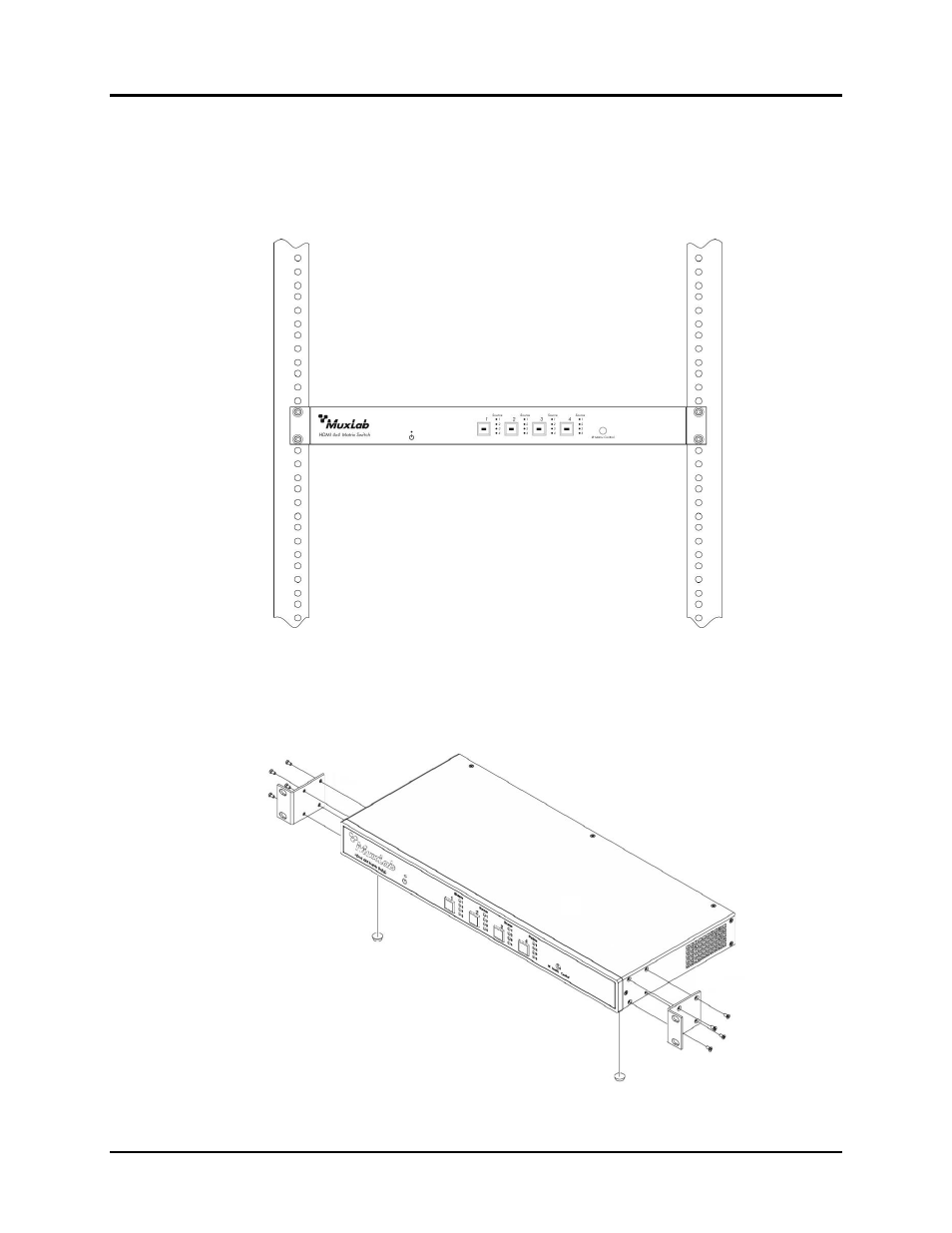

Figure 4: Setup for Rackmount Installation
For set-top installation, the side mounting brackets may be removed, and the included
rubber feet placed on the bottom of the unit. When removing the mounting brackets,
be careful to keep and reinstall the four screws on each side of the unit (Figure 5).
Figure 5: Setup for Set-top Installation
