M I X E D U P & T H E I N J E C TO R
PAG E 9 AU D I O C O N T R AC TO R TO O L S
BALANCED MICROPHONE LEVEL XLR INPUT
CONNECTORS
2 off
UNBALANCED LINE LEVEL STEREO RCA
INPUT CONNECTORS
2 off, mono summed
BALANCED MICROPHONE LEVEL XLR
OUTPUT CONNECTOR
FOUR LEVEL CONTROLS
Adjusts the level of the audio signal of the respective
source in the output mix

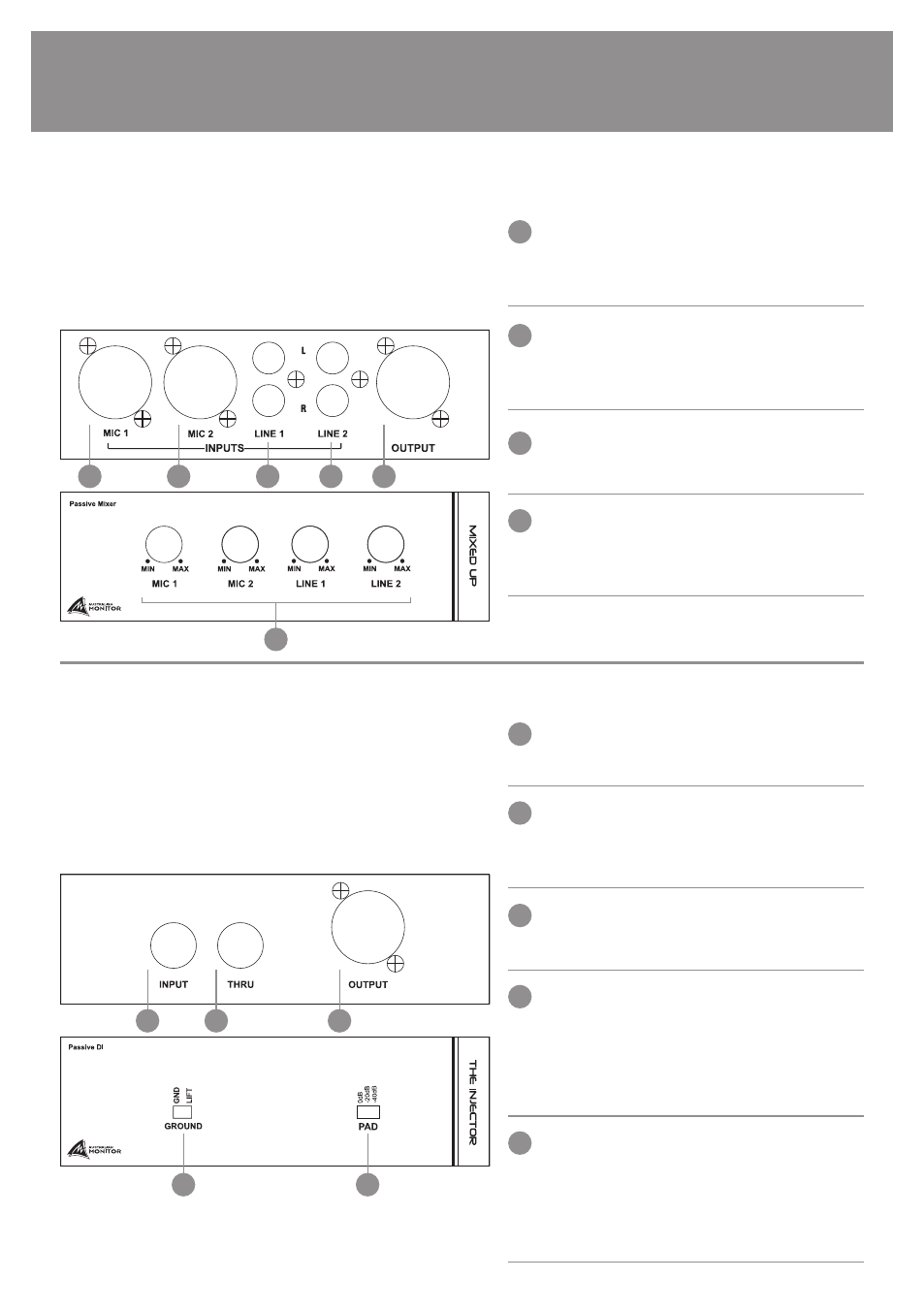

4 CHANNEL PASSIVE MIXER
The AMIS MIXED UP is a passive 4 channel mixer which features
2 balanced XLR microphone inputs & 2 dual RCA line inputs & a
single microphone level balanced XLR output. The MIXED UP also
offers individual front panel level controls per input.
1
2
3
4
1 1 2 2 3
4
PASSIVE DI
The AMIS THE INJECTOR is a passive direct injection box which
offers a 6.35mm input, 6.35mm thru output (direct) & a balanced
XLR output. The INJECTOR also features ground lift switching for
elimination of hum & a three stage pad offering up to 40dB
of attenuation.
UNBALANCED LINE LEVEL
6.35mm jack socket input connector
UNBALANCED LINE LEVEL
6.35mm jack socket output connector (in parallel with
jack input connector)
BALANCED LINE LEVEL XLR OUTPUT
CONNECTOR
GROUND LIFT SWITCH
Pin1 lift on transformer isolated XLR output. Set to
“GND” to connect pin 1 of output XLR connector to pin
1 of input XLR connectors. Set to “Lift” to disconnect
pin1 output XLR connector
PAD SWITCH.
Set to “0dB’ to allow the audio signal to not be attenu-
ated. Set to “-20dB” to reduce the signal level on the
XLR output connector by 20dB. Set to “-40dB” to reduce
the signal level on the XLR output connector by 40dB.
1
2
3
4
5
1 2 3
4 5
