D R O P M E & M U LT I C A N
PAG E 6 AU D I O C O N T R AC TO R TO O L S

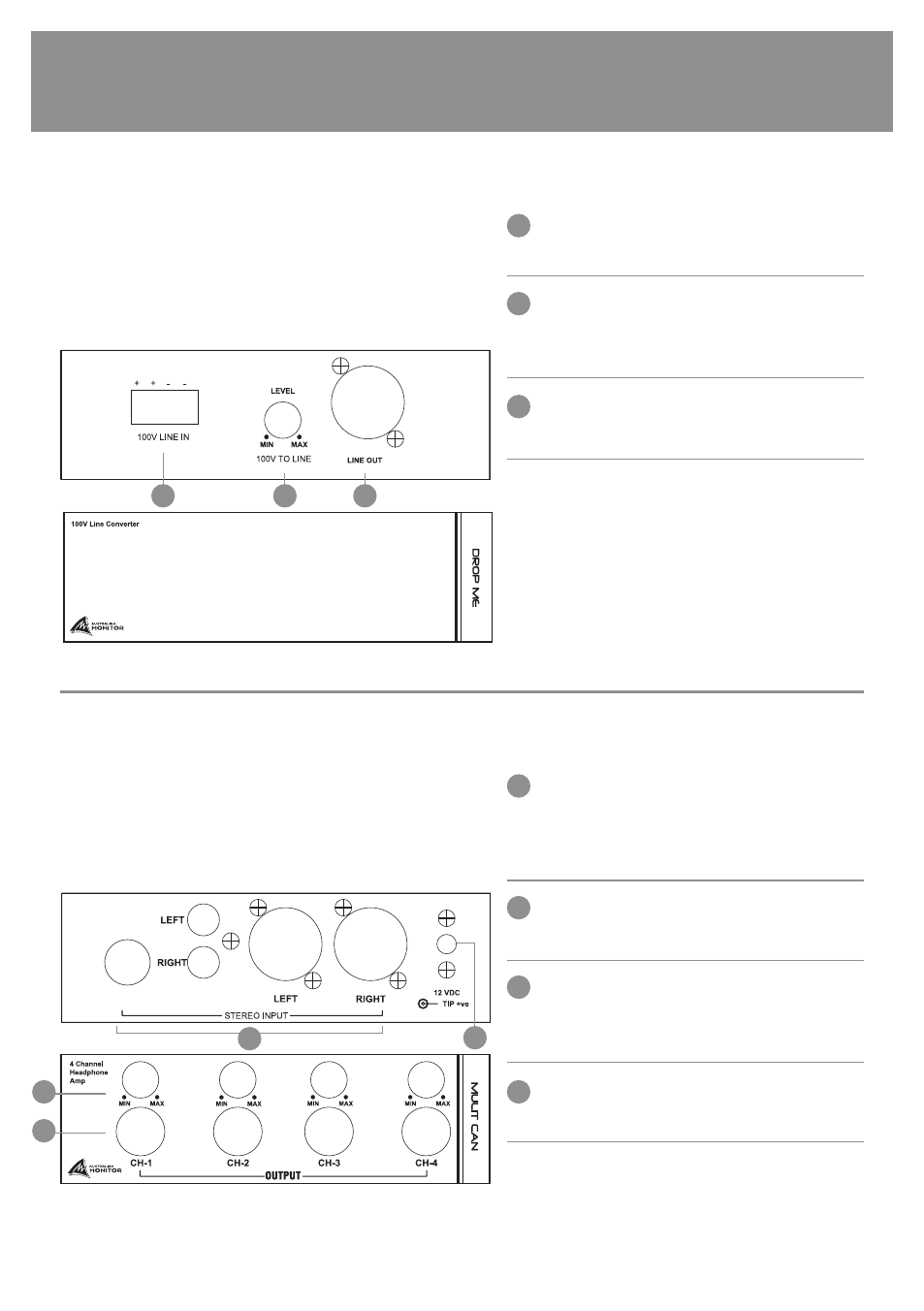

100V SPEAKER LINE INPUT
WECO connector with parallel output
LEVEL CONTROL
Adjusts the level of the audio signal on the XLR output
connector
BALANCED LINE LEVEL XLR OUTPUT
CONNECTOR
100 VOLT LINE CONVERTER
The AMIS DROP ME allows you to convert a 100 volt line amplifier
speaker output signal to a balanced line level signal. The 100 volt
line signal input is via phoenix connector & the output is balanced
XLR. The DROP ME also features a rear panel level control for
achieving the optimal output level. 1
2
3
1 2 2
4 CHANNEL HEADPHONE AMPLIFIER
The AMIS MULTI CAN is a compact yet high quality 4 channel
headphone amplifier, featuring 6.35mm TRS, dual RCA & dual XLR
stereo inputs & 6.35mm TRS headphone outputs. The MULTI CAN
also offers individual output level controls per channel. STEREO LINE LEVEL INPUT CONNECTORS
In parallel (6.35mm TRS stereo jack, stereo RCA
connectors, stereo XLR connectors) All four headphone
amplifiers share the same common stereo input
POWER INPUT CONNECTOR
12VDC Centre +ve
FOUR LEVEL CONTROLS
Adjusts the level of the audio signal of the headphone
jack directly below
FOUR STEREO HEADPHONE CONNECTORS
6.35mm stereo sockets
1
2
3
4
1 2
3
4
