L E T ’ S S P L I T ( L ) & L E T ’ S S P L I T ( M )

PAG E 4

AU D I O C O N T R AC TO R TO O L S

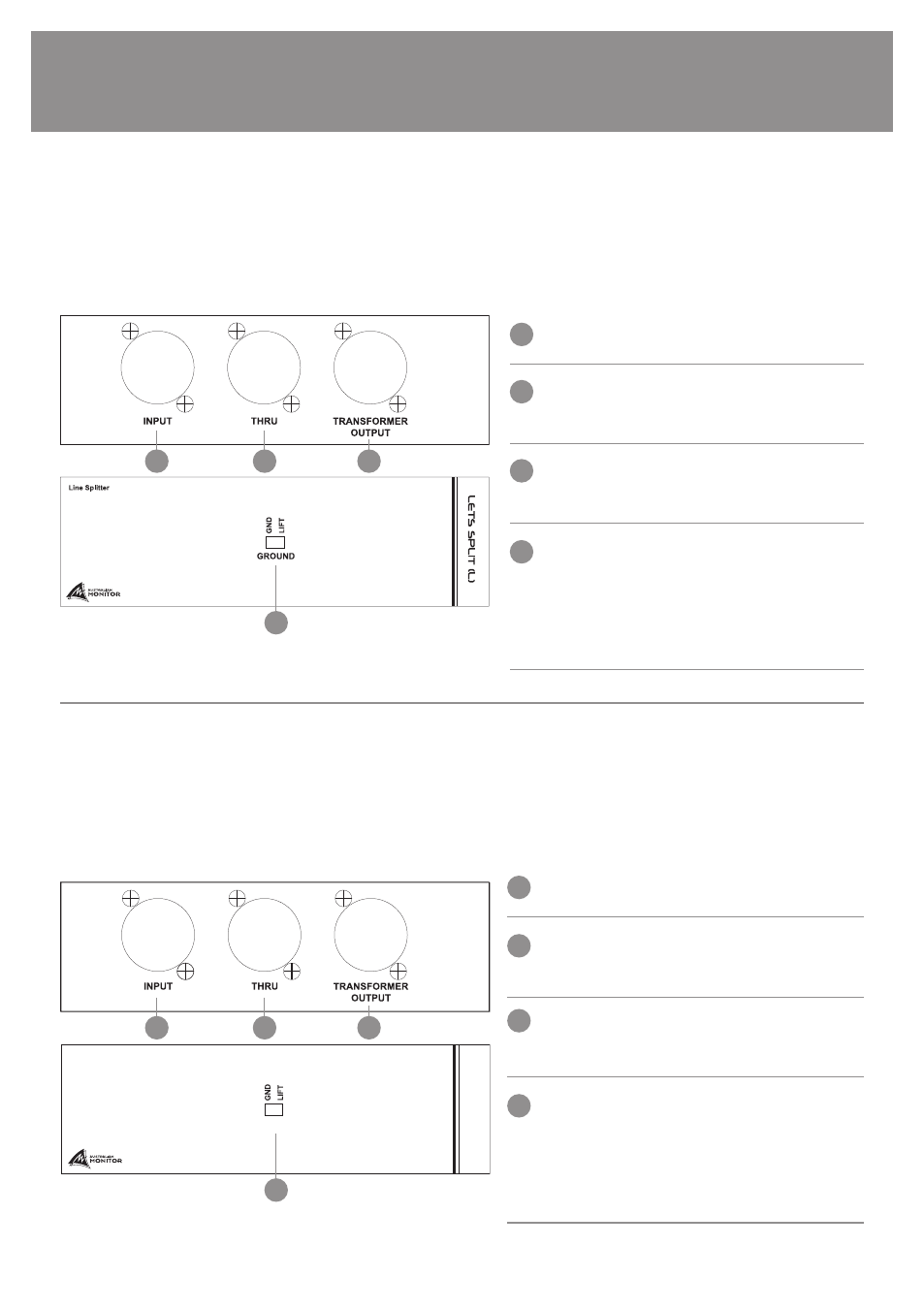

BALANCED XLR INPUT CONNECTOR

BALANCED XLR THRU OUTPUT CONNECTOR

Parallel to input

BALANCED XLR OUTPUT CONNECTOR

Transformer isolated

GROUND LIFT SWITCH

Pin1 lift on transformer isolated XLR output Set to
“GND” to connect pin 1 of output XLR connector to pin
1 of input XLR connectors. Set to “Lift” to disconnect
pin1 output XLR connector

LINE SPLITTER

The LETS SPLIT (L) is a balanced line level splitter with a balanced XLR line level input which provides both a transformer
balanced XLR output & a thru (direct) XLR output of the input signal. The LETS SPLIT (L) also provides a ground lift switch to
eliminate ground loop hum.

LINE SPLITTER

The AMIS LETS SPLIT (M) is a balanced microphone level splitter with a balanced XLR microphone level input which provides
both a transformer balanced XLR output & a thru (direct) XLR output of the input signal. The LETS SPLIT (M) also provides a
ground lift switch to eliminate ground loop hum.

LETS SPLIT (M)

Mic Splitter

GROUND
