G E T D OW N & G E T U P
PAG E 5 AU D I O C O N T R AC TO R TO O L S

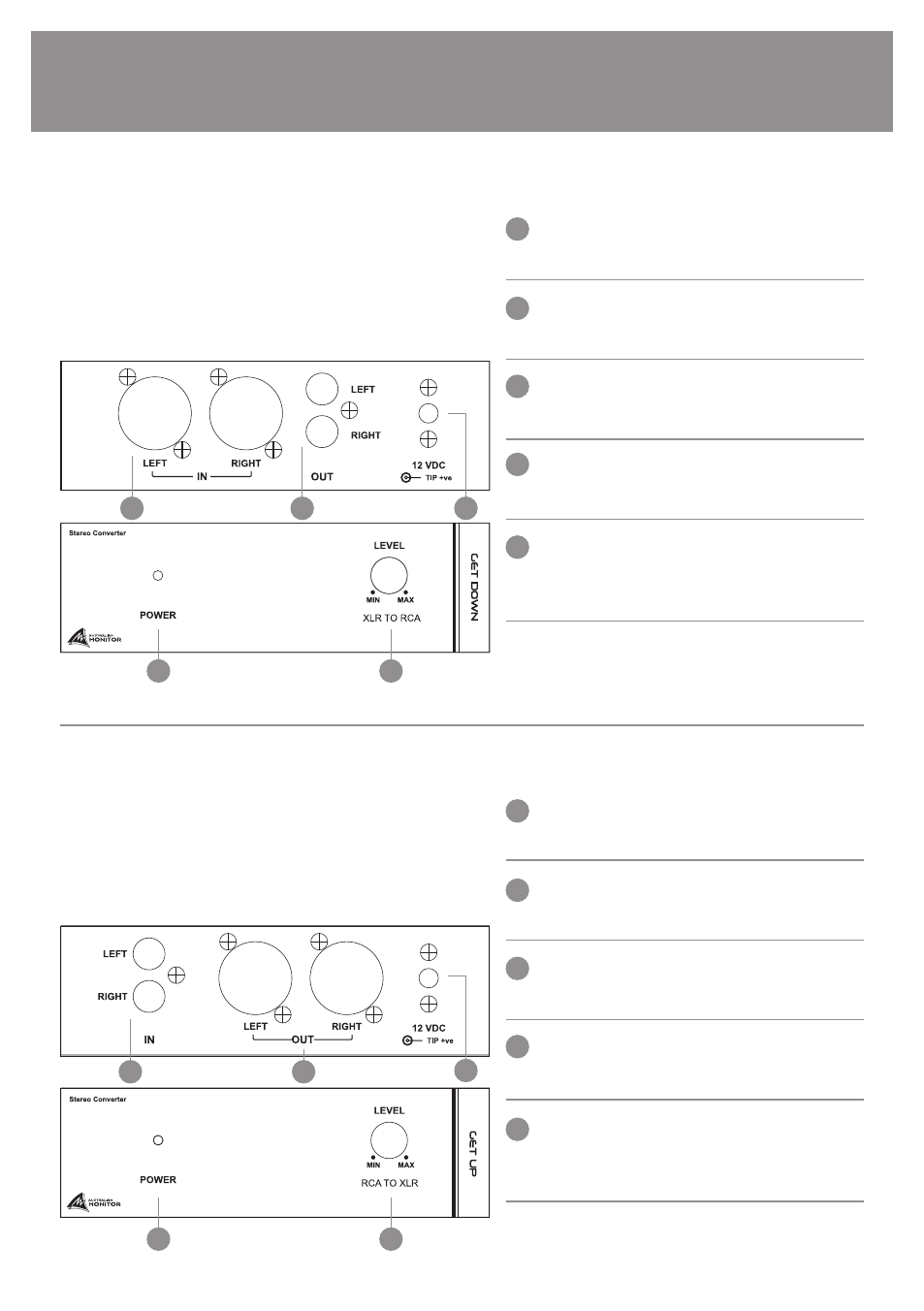

STEREO BALANCED LINE LEVEL
XLR input connectors
STEREO UNBALANCED LINE LEVEL
RCA output connectors
POWER INPUT CONNECTOR
12VDC Centre +ve
POWER LED INDICATOR
Illuminated = On
LEVEL CONTROL
Adjusts the level of the audio signal on the stereo
unbalanced RCA output connectors
STEREO CONVERTER
The AMIS GET DOWN stereo converter converts a professional
line level balanced audio signal to an unbalanced domestic level
signal. Inputs are balanced XLRs & outputs are stereo RCA
connectors. The GET DOWN also features a front panel level
control for achieving the optimal output level. 1
2
3
5
4
1 2 3
4 5
STEREO CONVERTER
The AMIS GET UP stereo converter converts an unbalanced
domestic level signal to a professional line level balanced audio
signal. Inputs are stereo RCA connectors & outputs are balanced
XLR’s. The GET UP also features a front panel level control for
achieving the optimal output level. STEREO UNBALANCED LINE LEVEL
RCA input connectors
STEREO BALANCED LINE LEVEL
XLR output connectors
POWER INPUT CONNECTOR
12VDC Centre +ve
POWER LED INDICATOR
Illuminated = On
LEVEL CONTROL
Adjusts the level of the audio signal on the stereo
balanced XLR output connectors
1
2
3
5
4
1 2 3
4 5
