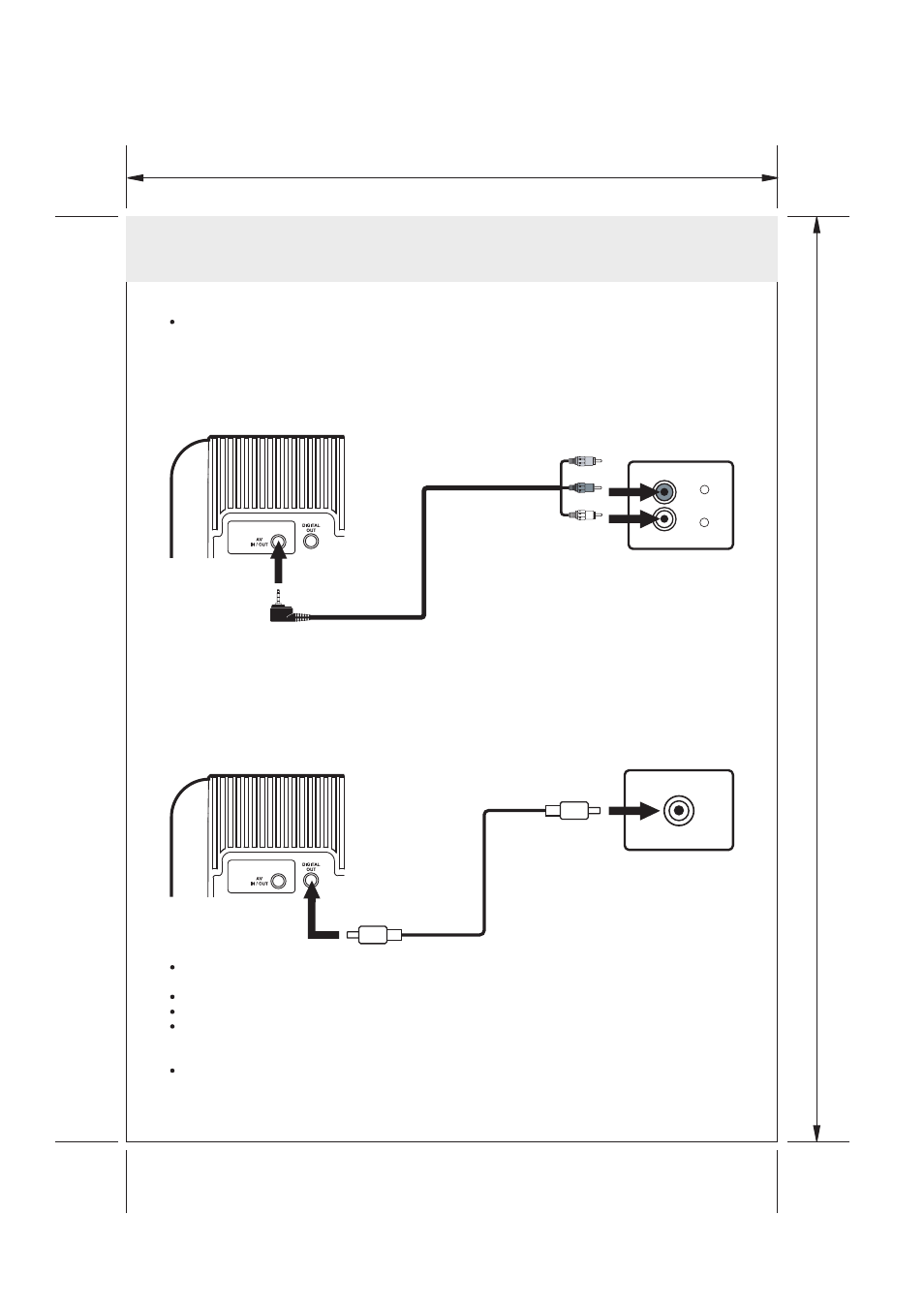

C. Audio Source Connection
Analogue connection
Digital connection
You can use your unit as an audio source to connect to your stereo amplifier. Using the
Audio/Video cable, connect ONLY the red and white plug from AV IN / OUT jack on your Unit
to the AUDIO IN jack or use a Coaxial Digital Audio cable to conect to the coaxial in jack on
your another equipment. Do not connect the yellow video plug.
Audio equipment with
digital audio input jack
COAXIAL DIGITAL AUDIO CABLE
(not included)
To DIGITAL OUT Jack
Amplifier of
stereo system, etc.
Notes:
When you connect the unit to other equipment, be sure to turn off the power and unplug all
of the equipment from the wall outlet before making any connection.
You may experience interference if the tuner function is selected while the television is working.
If you have a stereo VCR, make sure you set it in stereo mode.
Due to copyright protection, DVD movies cannot be copied. If you copy a DVD movie onto a
videotape, the resulting copy will be unclear, with poor sound quality. This is NOT caused by
a defective DVD system.
Refer to the instruction manual of the connected equipment as well
.
Using External Audio Equipment
Turn on the unit.
Turn on your audio equipment and follow the instructions included with it to select the AUDIO
IN or DIGITAL IN function. 1.
2.
CONNECTIONS
14
Rear of unit
AUDIO/VIDEO CABLE (included)
To AV IN / OUT Jack
(Yellow)
(Red)
(White)
Rear of unit
DIGITAL IN
COAXIAL
AUDIO
IN
R
L
(No need to connect
the Yellow video plug)
