If you have a mono VCR, the volume level from the speakers
will be low.
Note: Make sure you use the correct Audio/Video cable.
Watching Video Equipment
Note:
Turn on the unit, press the FUNCTION button to select "AV IN".
Turn on the video equipment and follow the instructions provided
with it to playback.

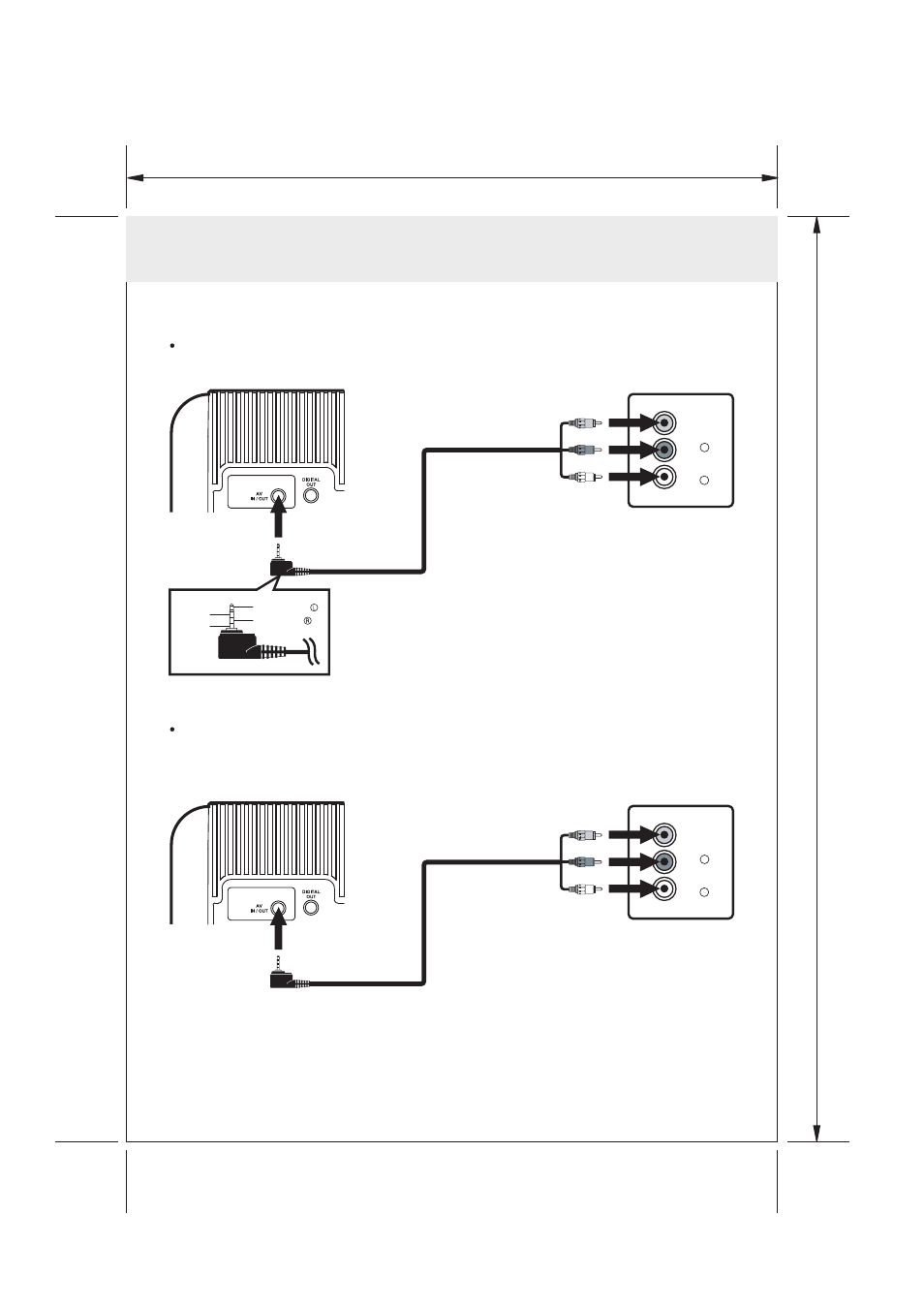

A. Connecting Video Equipment
You can connect other Video Equipment for playback through the system.
Rear of unit
Video Equipment
AUDIO/VIDEO CABLE (included)
To AV IN / OUT Jack
B. Connecting a TV
If your TV has Audio/Video inputs, you can also connect the unit to your TV using the Audio/Video
cable. If your TV does not have Audio/Video inputs, you can purchase an RF modulator (sold
separately) to connect the unit.
TV
1.
2.
Watching a DVD on your External TV
Turn on the unit, press the FUNCTION button to select ”DVD".
Turn on the TV and follow the instructions included with it to select the proper video in source.
1.
2.
Rear of unit
AUDIO/VIDEO CABLE (included)
To AV IN / OUT Jack
VIDEO
OUT
AUDIO
OUT
R
L
(Yellow)
(Red)
(White)
(Yellow)
(Red)
(White)
VIDEO
IN
AUDIO
IN
R
L
White (Audio )
Yellow
(Video)
Ground
Red (Audio )
3.5mm plug description
CONNECTIONS
13
Using this Unit with Other Equipment
(continued on next page)
