13
It is recommended that the switch
be installed on the left handlebar.A
piece of electrical tape around the
handebar will help prevent rotation
of mount on the handle bar. Do not
tighten over any hoses or cables.
Once the handle bar switch is
mounted,route the two bullet
terminal wires back to where the
control box will be mounted. Splice
the end of the red 20ga wire to key
controlled electrical wire of the ATV.
Using a test light,locate a suitable
wire from the ATV key switch. The
wire should only have power when
the key is in the “ON” position.

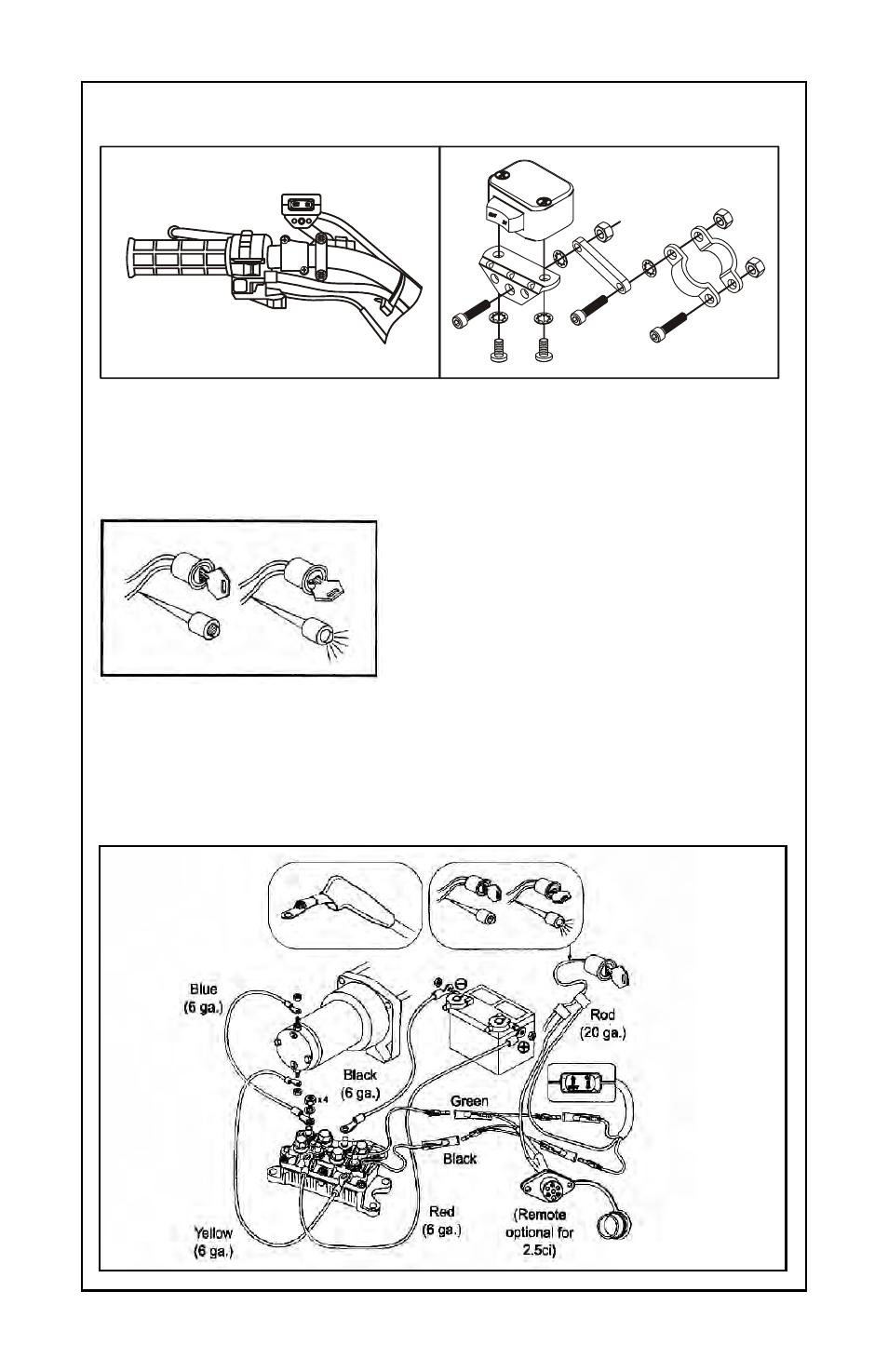

Handlebar mount assembly. Exact
positioning may vary depending on
ATV make and model. Mini-rocker switch
Use a test light to locate a
suitable wire.
Step 5 - Handlebar Switch Assembly
