Tailgate Bar with Tonneau Installation (optional)
17. Locate Tailgate Bar and Rear Seat Tonneau Cover. Slide the extrusion on the Tonneau Cover into Tailgate
Bar Rail as shown in Figure 18.
18. Insert Tailgate Bar into the top of the Tailgate Brackets (Figure 19).

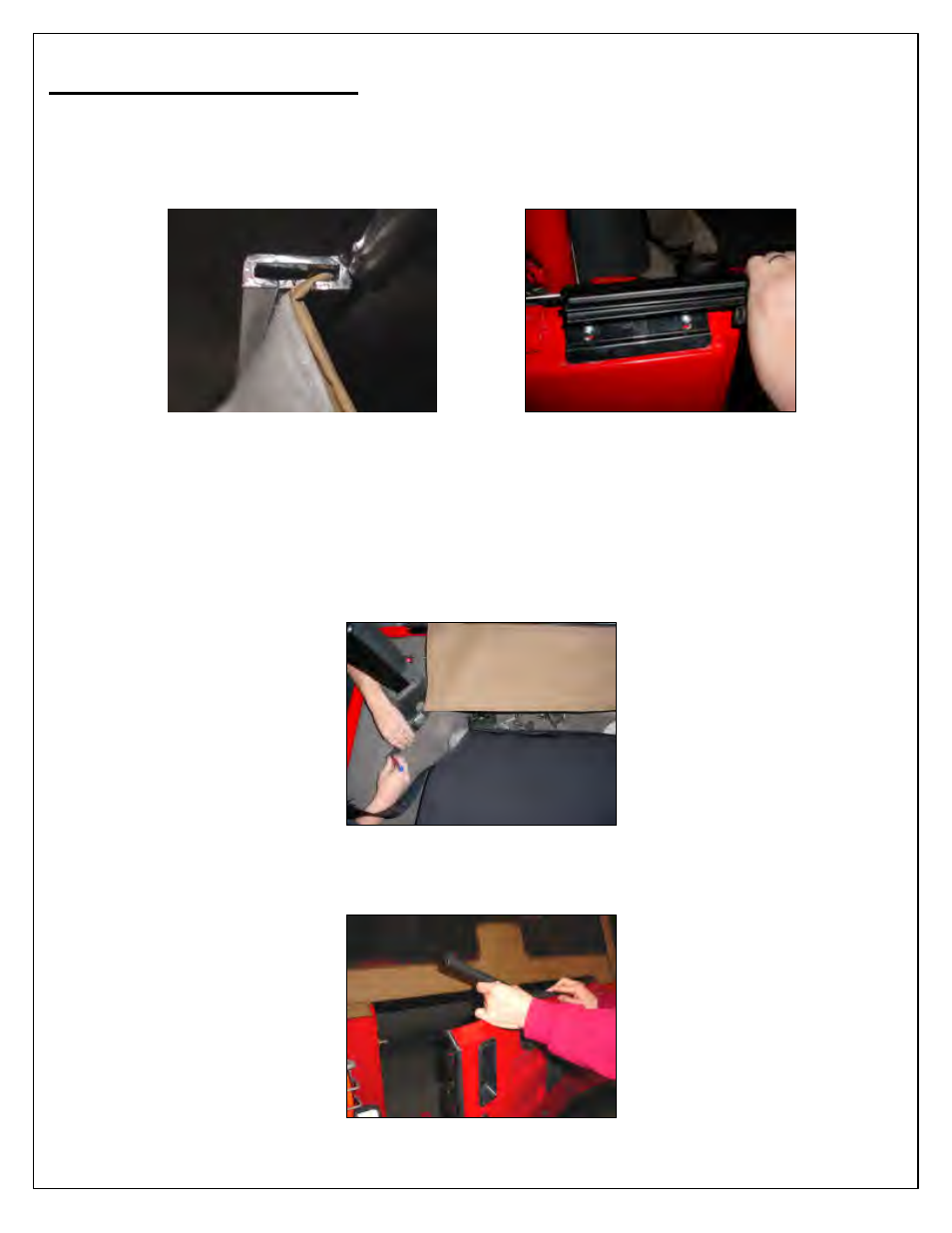

Figure 18 Figure 19
19. Fold seat forward and pull straps to the mounting locations as shown in Figure 20. Use the hole on the strap
as a guide to mark the drilling locations on the fender. NOTE: Carefully check the drilling area to be sure
you do not drill into any concealed wiring. Place strap aside and drill 1/8” holes on the just marked
locations.
20. Re-position Rear Seat Tonneau Cover and attach both sides to the just drilled holes by using the included
(2) - #8 x 1” Sheet Metal Screws (Figure 20).
Figure 20
21. Locate the Channel on the Weather Strip and insert tailgate into channel (Figure 21). NOTE: Make sure the
Weather Strip is fully engage to the tailgate before closing tailgate.
Figure 21
