Rugged Ridge Factory Replacement Soft Top Hardware, 87-95 Jeep Wrangler (YJ) User Manual
Page 3
69999
Page 3 of 7
02/05

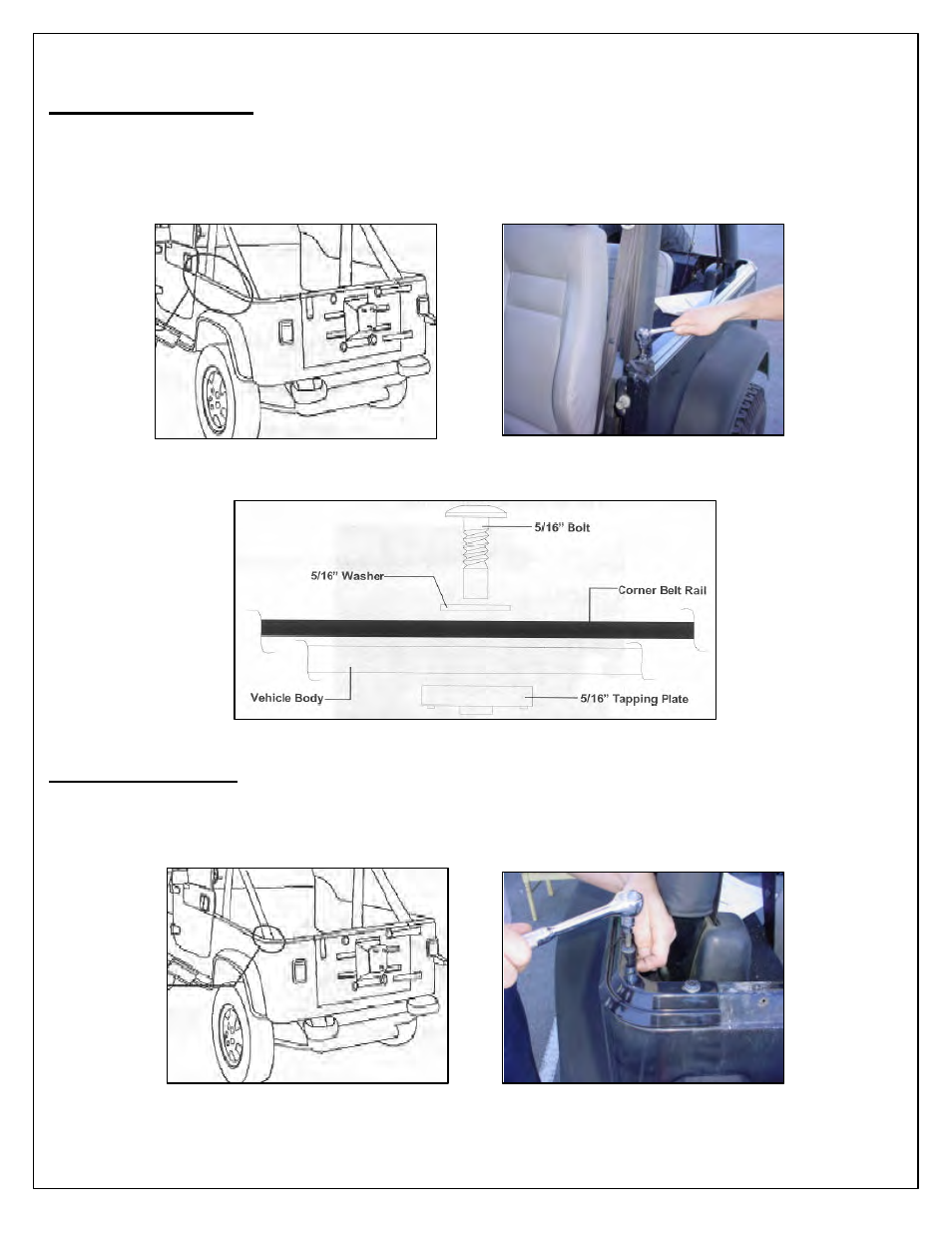

Side Belt Rail Installation
7. Locate Driver Side Belt Rail, (4) – 5/16” Torx Bolts, (4) – 5/16” Flat Washers, and (4) – 5/16” Tapping Plates.
Position Side Belt Rail onto vehicle and secure it using the hardware listed in this step (Figure 4 & 5). Repeat
this step for opposite side.
Figure 4
Figure 5
Figure 6
Corner Belt Installation
8. Locate Passenger Corner Side Rail, (2) – 5/16” Torx Screws, (2) – 5/16” Flat Washers, and (2) – Tapping
Plates. Position Corner Side Rail onto vehicle and secure it by using hardware listed in this step (Figure 7 &
8). Repeat this step for opposite side.
Figure 7
Figure 8
Side Rail
Mounting
Location
Corner
Rail
Mounting
Location
