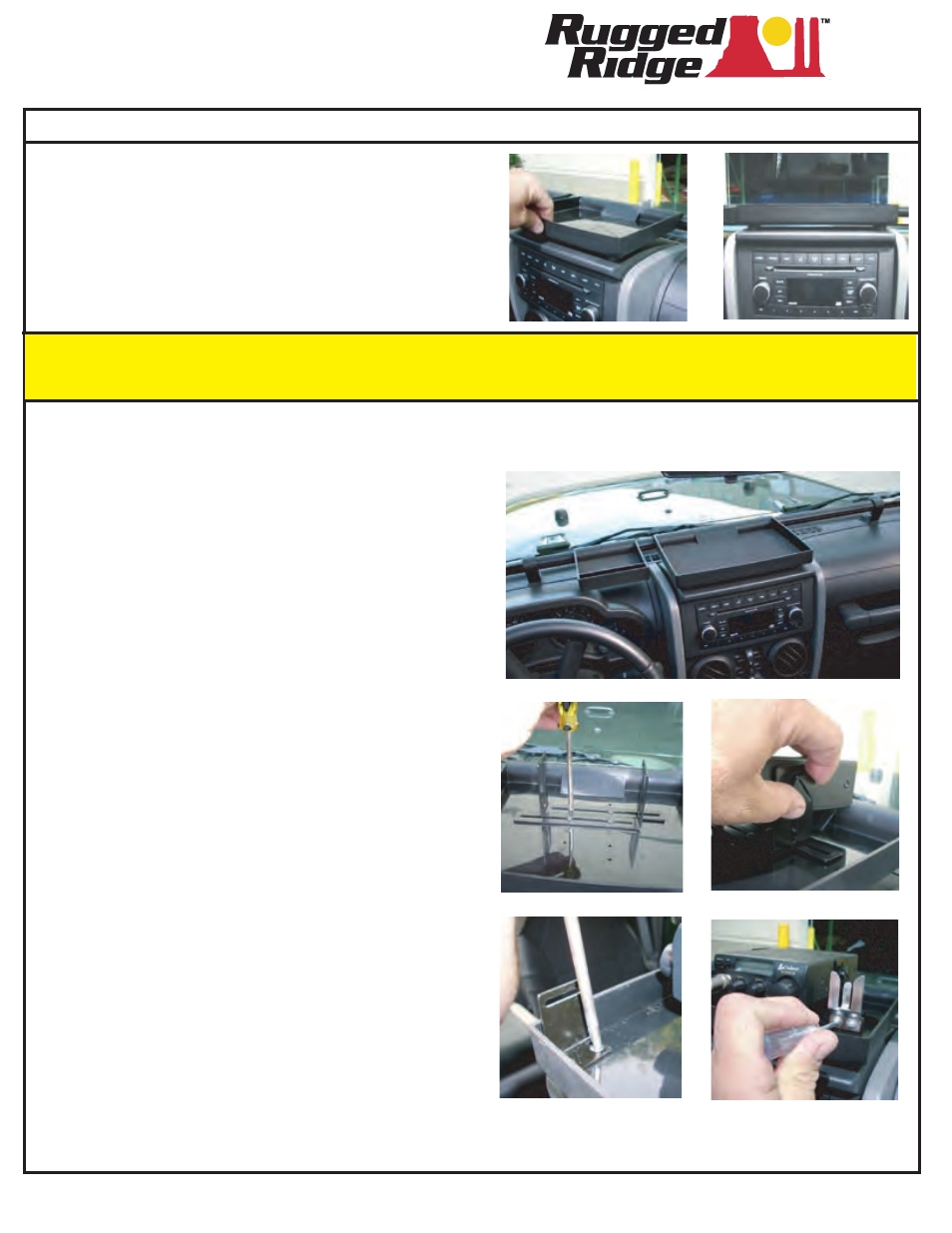

PAGE 3
1. To mount CB remove rubber pad from center
tray. Using the pre-drilled locating holes install
the left and right CB mounting brackets using
(4) 6mm self tapping screws as shown.
DO NOT TIGHTEN.
(3) mounting positions have been provided
for different CB sizes.
2. Place CB between the brackets. Adjust so
the brackets are resting against CB. tighten
self tapping screws. Large rubber pad can
be cut to fit CB brackets at this time.
3. Secure CB to brackets and adjust height as
needed. Wire CB per manufactures
instructions. For routing wiring, holes may
be drilled in supplied recessed areas on
bottom of tray.
4. Two sets of holes have been supplied for the
CB mic mounting bracket. The mic can be
mounted either on the left front or right front
of the large tray. Attach mic mount with (2)
6mm self tapping screws as shown.
5. Attach mic holding bracket (not supplied) to
CB mic mounting bracket.
(4)
(2)
(3)
(5)
(9)
(9)
9. Slide the large tray to the center of the dash.
Rotate tray until rubber pads are firmly resting
on the top of dash. Tighten thumb screws.
Slide small tray into position between the
instrument display and Radio housing as shown.
Rotate tray so that it is level with the large
tray and tighten thumb screw.
10. With trays centered tighten left and right
dash end cap thumb screws.
PLEASE NOTE: Adjustments can be made
to the trays or the aluminum bar by loosening
the thumb screws and rotating. When desired
position is obtained retighten.
(1)
CB Mounting Instructions - (Optional)
13551.10 Rugged Ridge™ Dash Organizer instructions
2007 - up Jeep® JK Wrangler®
Dash top organizer for 2007 and up Jeep® JK Wrangler® (2DR, 4DR)
WARNING! : Avoid risk of increased accident injuries by altering airbag deployment.
DO NOT position tray or mount accessories over passenger-side airbag panel.
