13551.10 Dash Organizer
2007 - Up Jeep Wrangler
Page 2 of 4
PAGE 2

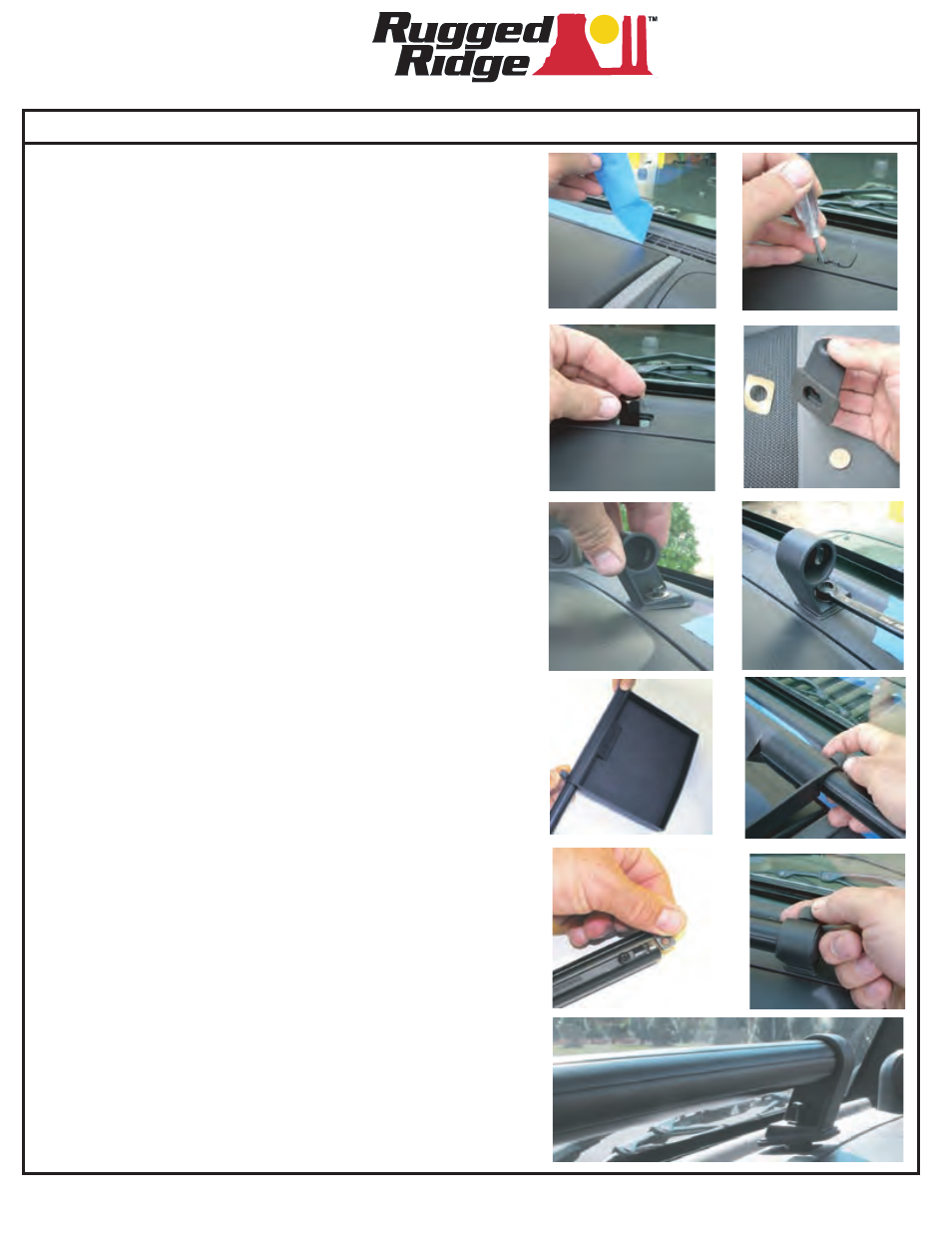

5. Place (4) M6 square nuts inside the back of
aluminum tube. Slide the large tray over tube and
attach to the square nuts with (2) M6 star lock
washers and (2) M6 thumb screws. Repeat for the
small tray and snug thumb screws down.
6. With trays installed, place (1) M6 square nut
into the end of the aluminum tube. Slide tube
assembly into the drivers side (left side) end
cap and attach using (1) M6 star lock
washer and (1) M6 thumb screws. snug thumb
screw but do not tighten at this time.
7. Place (1) M6 square nut inside the back of
the aluminum tube on the passengers side.
Place the (right side) dash end cap onto the
end of the aluminum tube and secure using
(1) M6 star lock washer and (1) M6 thumb screw.
8. Slide passenger (right side) end cap and tube
onto dash stand-off (see step #3). Insert (1) M6
hex head bolt and (1) M6 flat washer through
the dash end cap and tighten as far as possible
by hand. When snug use 10mm wrench to
complete installation.
(5) (5)
(6) (7)
(8)
3. Starting with the driver's side, place (1) M6 dash
stand-off into dash opening and hand thread
onto dash mounting stud located under plastic cap.
Tighten dash stand-off with 15mm socket. Repeat
on passenger side.
4. Apply foam foot pads to the bottom of both dash
end caps. Place drivers side end cap over dash
stand-off and hand thread (1) M6 hex head Bolt
and (1) M6 flat washer through dash mount and
into dash stand-off. Center mounting bracket
and tighten hex head bolt using a 10mm wrench.
1. Place a strip of tape over the dash vent holes
as shown. This will help to keep hardware from
falling down behind the dash if dropped.
2. Using a small flat head screw driver carefully
remove the two plastic caps located on either
side of the dash.
(1) (2)
(3) (4)
(4) (4)
Dash top organizer for 2007 and up Jeep® JK Wrangler® (2DR, 4DR)
