7. To install factory mirror on the Tube Doors, locate the (2)
mirror mounting holes in the driver side Tube Door. Insert the mirror
prongs into the mirror mounting holes. Position the mirror stanchion
such that the holes align with the mirror prongs. Secure the mirrors
to the Tube Doors using the factory torx bolts removed in Step 1.
Repeat for passenger door. Be sure to adjust mirrors for optimal
viewing angles before operating vehicle. CAUTION ! Side view
mirrors are required equipment for on-road vehicles.

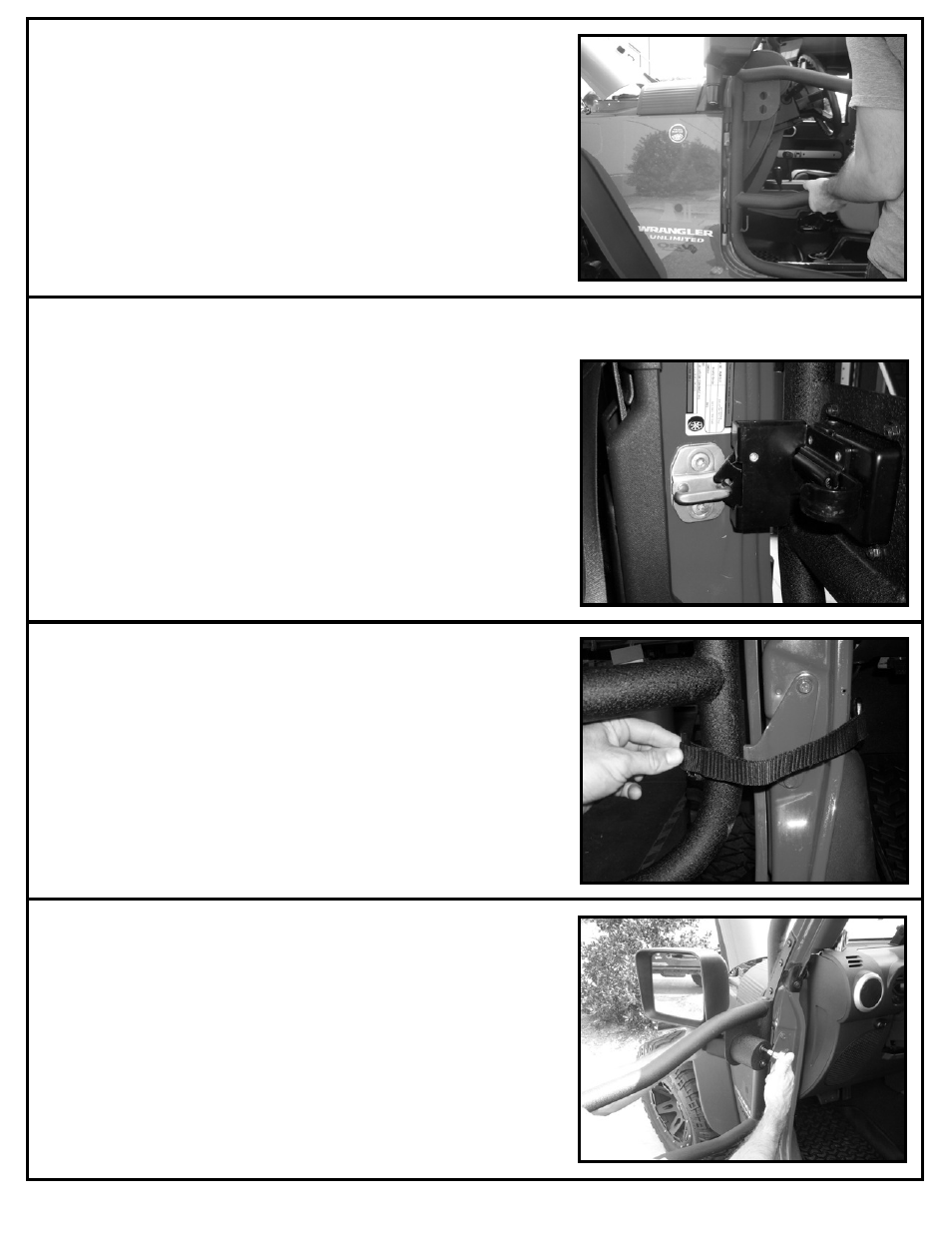

4. To install Tube Doors, lightly lubricate the tube door hinge
pins. Position the hinge pins directly above the hinges. Slowly lower
the hinge pins into the door hinges. If the hinge pins do not fully
seat, slowly rotate the door back and forth until hinge pins fully
engage. Install torx nuts removed in the previous step.
6. Attach the loop of the Adjustable Nylon Strap to the hook on
the Tube Door and the hook inside the vehicle. By using different
loops to attach to the vehicle hook, the amount of door opening
can be adjusted.
5. To ensure the rotary latch is aligned properly with factory
door striker, loosen the (4) bolts securing the rotary latch to the Tube
Door to allow for adjustment. With the rotary latch in the open
position, line up the notch in the latching mechanism with the
factory door striker and close the door. It may be necessary to
loosen the factory door striker for proper alignment. If so, be sure
to replace door striker to its original position before re-installing
factory doors. When proper alignment is achieved, tighten door
latch bolts. Open and close the door repeatedly to make sure door
is secure and functioning properly. Repeat for passenger door.
CAUTION ! To avoid risk of injury latch mechanism must be properly adjusted before use. Inspect and adjust
as necessary should wear alter alignment of latch and striker. Do not use door/latch if damaged.
