Rugged Ridge Dual Battery Tray, 97-06 Jeep Wrangler User Manual
Page 3
Page 3
11214.52 Dual Battery Tray
Applications: 1997- 2006 TJ Wrangler
2003- 2006 LJ Unlimited

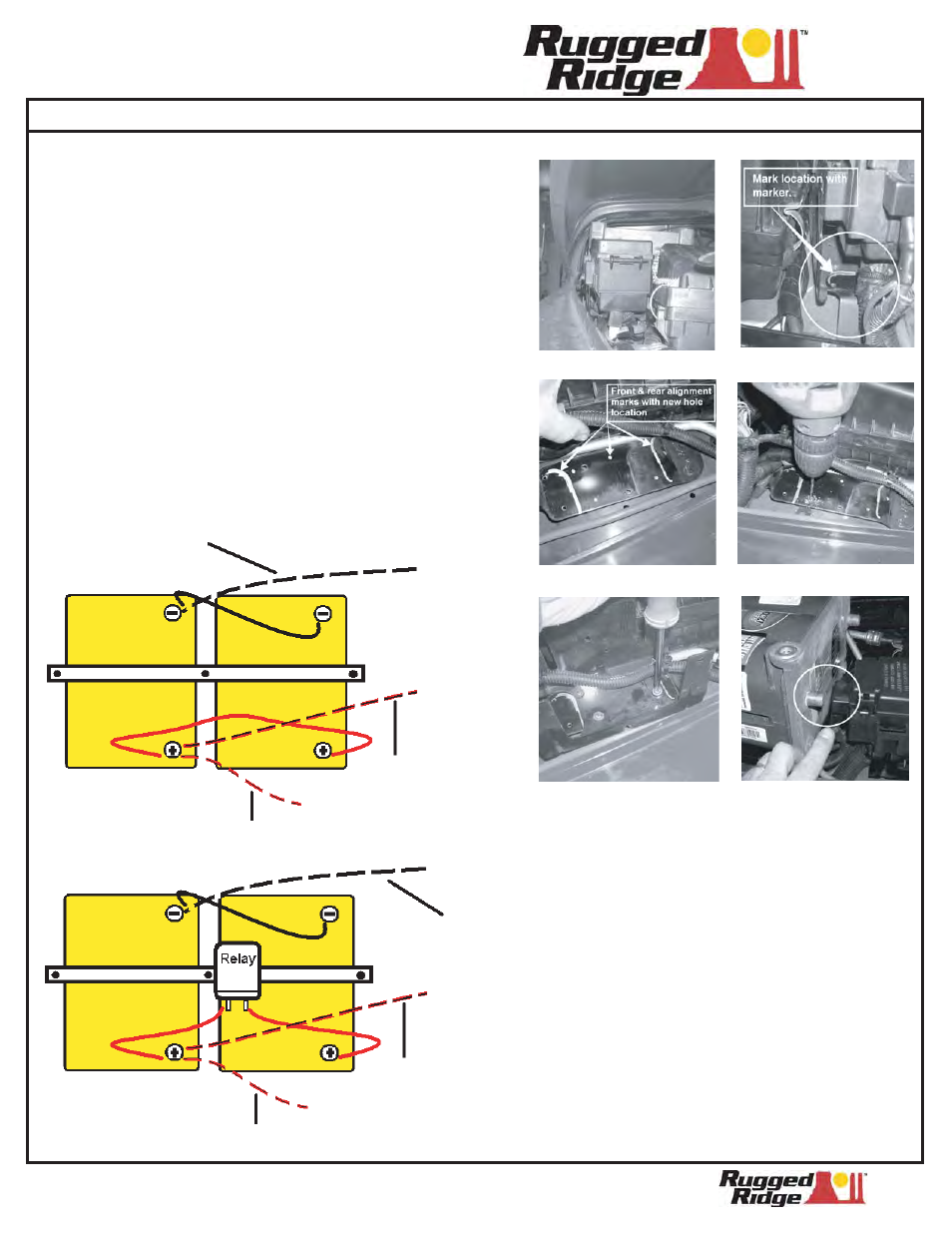

Dual Battery Tray Installation Instructions 1997 - 2006 Wrangler
pic.15
pic.16
pic.17
pic.18
pic.19
pic.20
Pg. 3 of 3
Step 16: With location marked on fender base remove the
fuse box from mounting bracket. Place mounting
bracket back down onto fender base. Align front
and rear alignment marks and scribe new hole
locations with marker (pic.17).
Step 17: Drill new hole locations in fender base (pic.18).
Make sure that drill bit used matches new screws
needed to secure fuse box mounting bracket.
(NEW SCREWS ARE NOT SUPPLIED WITH KIT)
Step 18: Secure fuse box mounting bracket to fender
base using machine screws (pic.19).
Step19: Secure the fuse box back onto fuse box mounting
bracket. Check for battery cable clearance and
possible contact with hood (pic.20).
Step 20: Drawings supplied show how batteries may be
connected for use with or without extra relay.
Stock (-) cable to body
frame ground.
Stock (+) cable to starter
OE (+) cable to fuse box
Main Battery
Stock (+) cable to starter
Stock (-) cable to body
frame ground.
Main Battery
OE (+) cable to fuse box
