JK Wrangler Dual Battery Tray
Page 3 of 4
11214.53

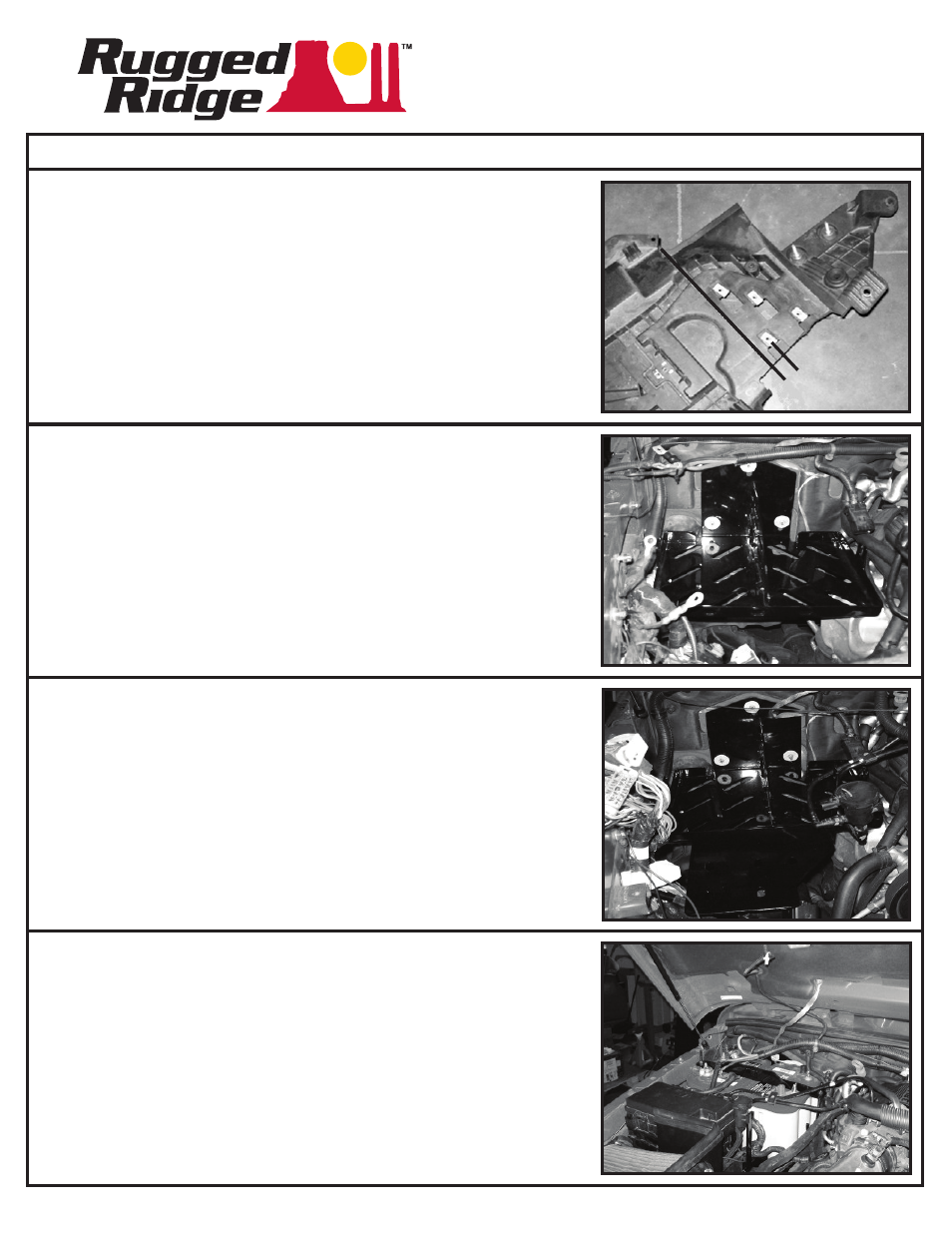

10. Check for clearance around the base of the Dual Battery Tray.
Install both batteries onto tray and secure into position using supplied
J-bolts and Battery strap. Slide EVAP solenoid over tab on Fuse Box
Bracket. Reinstall air filter box to its original location.
9. Install the front section of the factory battery box that was cut in
step 6 using factory hardware. Then install the Fuse Box Bracket
included with the Dual Battery Tray using the 3 Bolts and Flat Washers.
The hinged factory fuse box bracket can then be installed on top of the
Fuse Box Bracket included with the Dual Battery Tray. Reconnect all
connectors to the fuse box and snap it back into position.
7. After removing your factory battery box, mark a line about 1”
past the fuse box mounting holes toward the battery compartment.
Cut the box along this line and set the side that mounts the fuse box
aside to be reinstalled later.
8. Install the provided spacers onto the three mounting studs on
the fire wall and mount the Dual Battery Tray using the 3 factory nuts
and 1 factory bolt removed in step 5.
CUT HERE
1”
