ALUMINUM XHD & ALL TERRAIN BUMPER SERIES
3.6L VACUUM PUMP RELOCATION & FRONT BUMPER WINCH PLATE (11541.13)
NOTICE: This section applies only to 2012 and newer JK Wranglers.

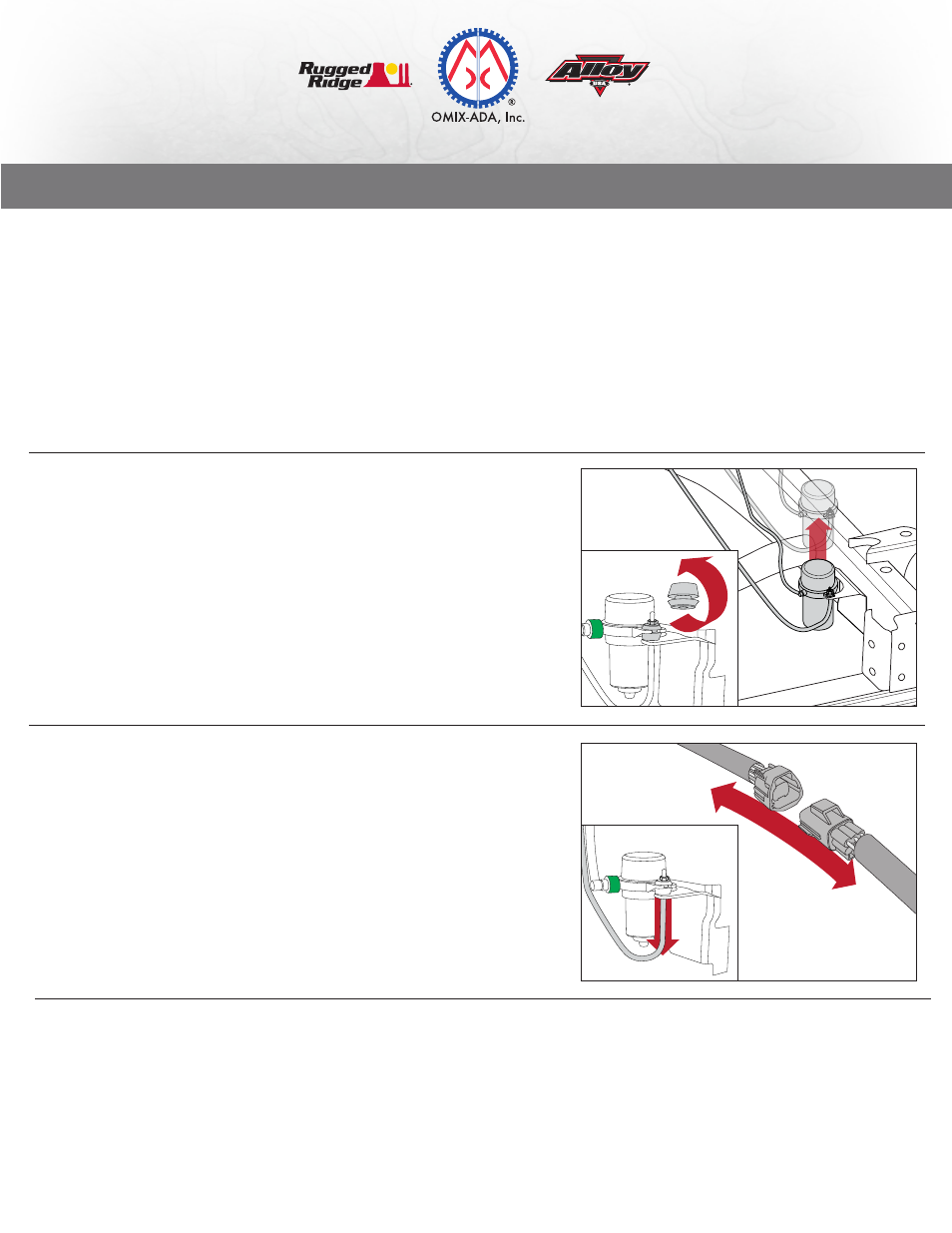

1. Remove the factory bumper. Remove the
Factory vacuum pump. Save removed hardware.
2. Remove and flip bushing. Re-attach in flipped
position.
3. Disconnect vacuum pump air-line and wire
harness. Do not detach indicated green harness.
4. Rotate vacuum pump.
5. Attach vacuum pump to rear factory stud
using hardware removed in step 1. Re-attach
air-line and wire harness.
6. Attach L-bracket to vacuum pump.
Page 2/8
Contents:
1. Winch Plate
2. M6 Bolt Short (1)
3. M6 Bolt Long (1)
4. L-bracket
5. M6 Flat Washer 6. M6 Nylock Nut
7. Nut plate (2)
8. M10 Flat Washers (2)
9. M10 Hex Bolts (2)
